Description
Features and Details
Excellent Performance
This powerful 1200 W magnetic drill operates at variable speed 0–580 rpm, providing maximum drilling depth of 55 mm and diameter of 40 mm. With its powerful 2.6 A motor, the drill easily handles high-quality steel structures.
Dual Headless Guide
The dual headless guide allows you to adjust the motor height, achieving maximum stroke range of 160 mm. Three extended crank handles can be installed on both sides of the drill for convenient operation. The cooling reservoir ensures rapid heat dissipation.
Quality Core Drills and Twist Drills
The drill is designed for use with the drills included in the package, allowing you to create the most commonly used diameters. Core drill: Ø12 mm. Twist drill: Ø10 mm.
13 000 N Magnetic Attraction Force
The nearly pure iron electromagnetic base is durable and provides up to 13 000 N magnetic attraction. This allows precise positioning of the drill and ensures stable, stationary operation.
Wide Range of Applications
This multifunctional magnetic drill is suitable for processing almost any metal surface. Ideal for ship and bridge construction, metal processing, wind and power station construction, railway manufacturing, equipment installation and many other industries.

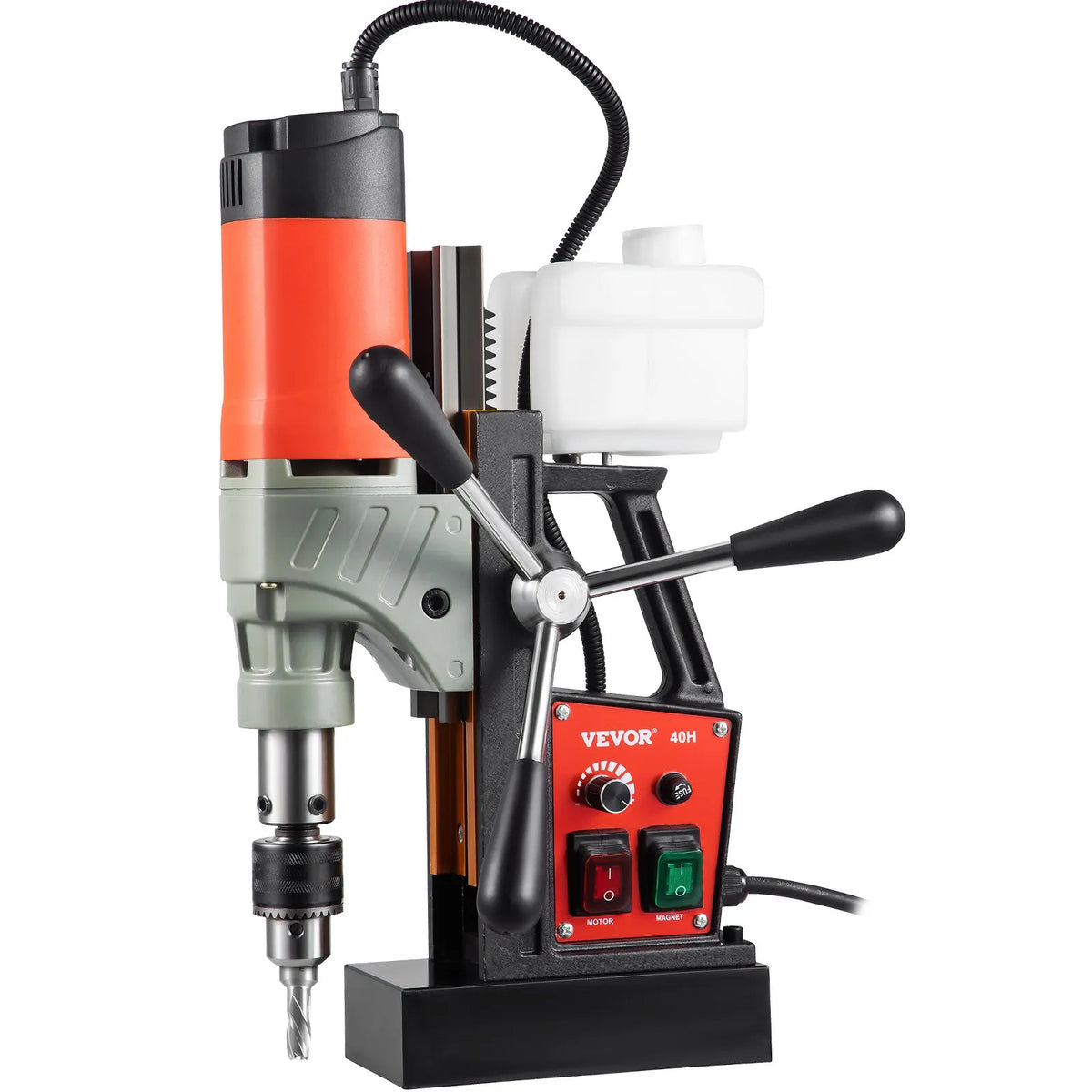

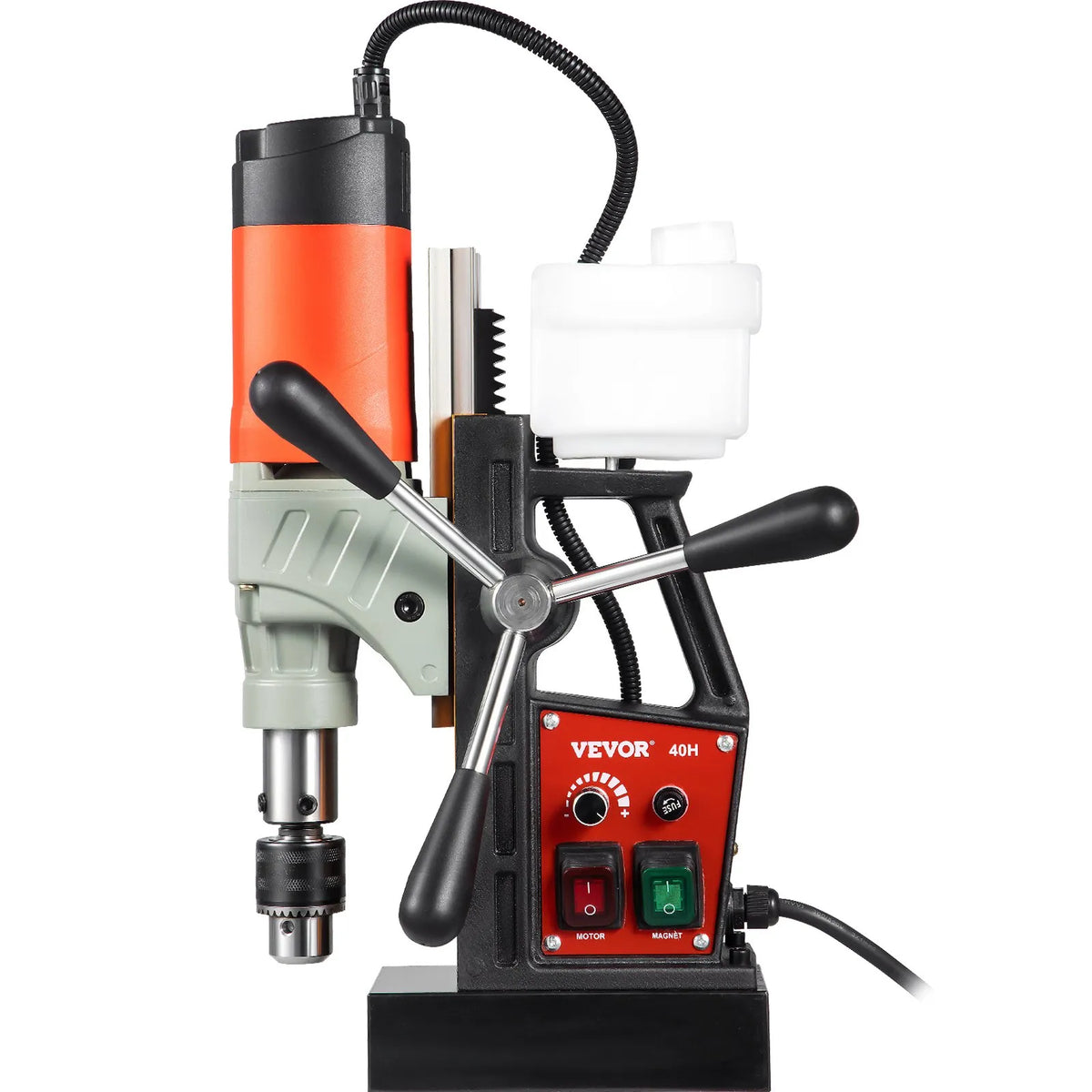

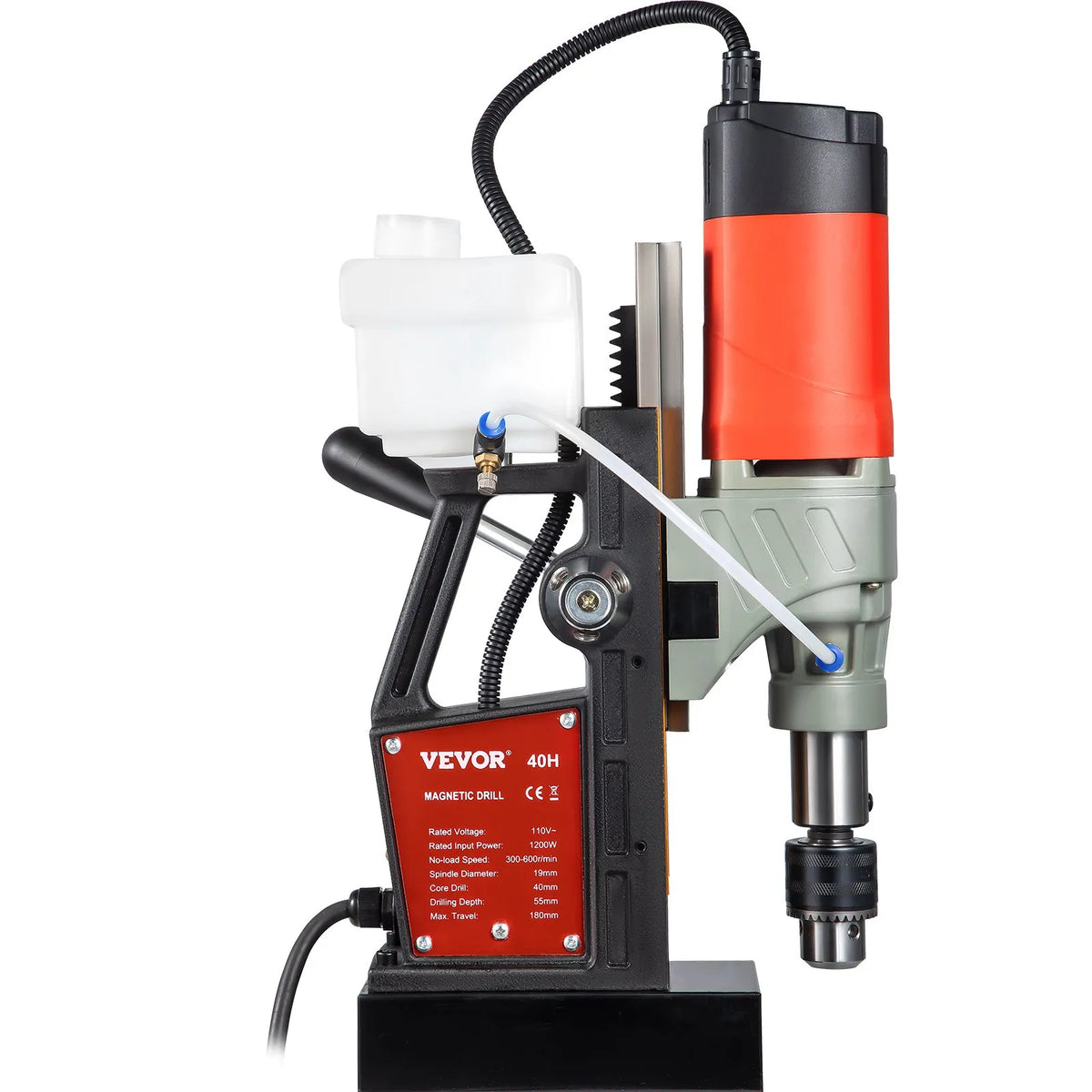

Electric Magnetic Drill
0–580 rpm • 1200 W • 160 mm stroke range

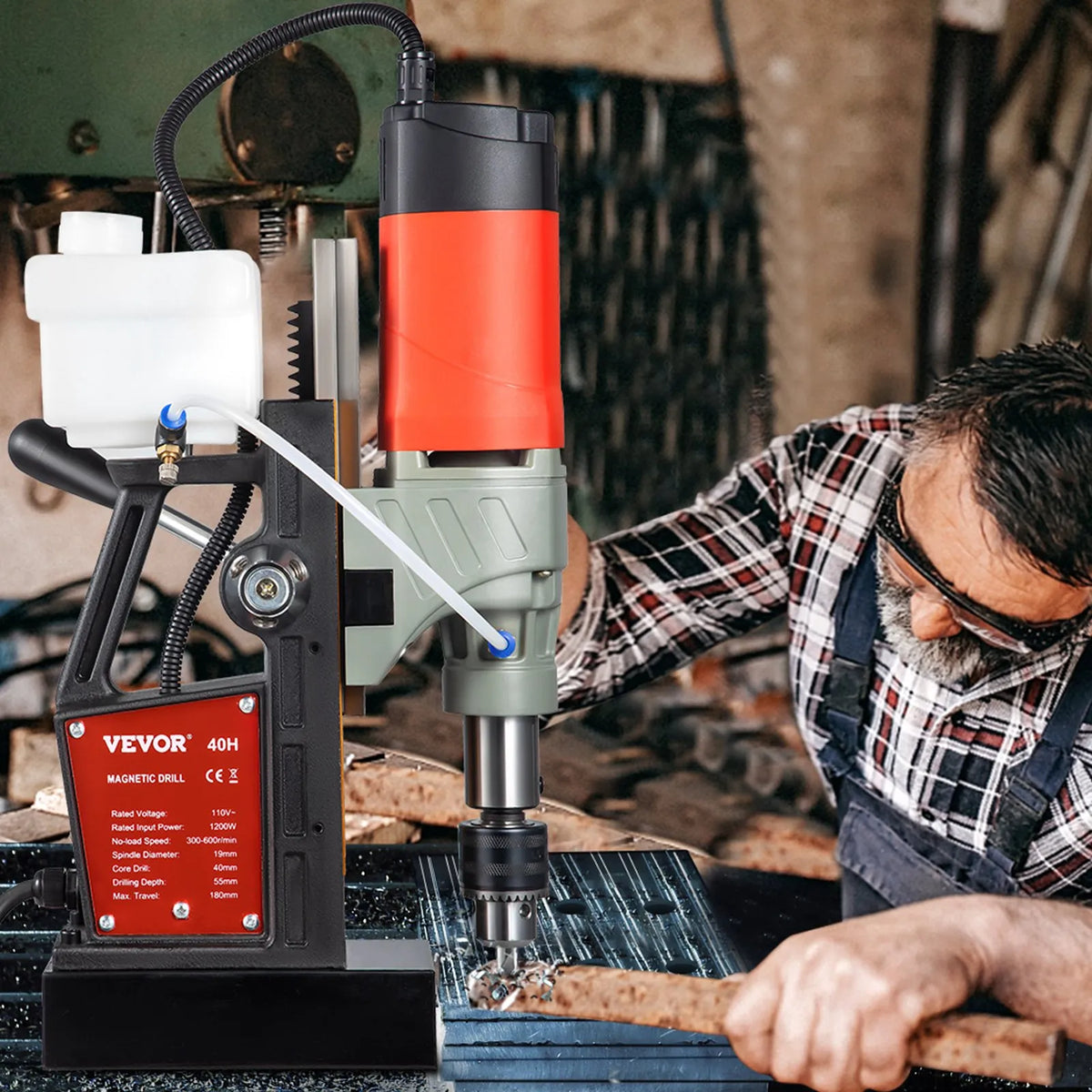

The portable drill is designed for use with the precision drills included in the package. It can drill even the most complex materials, creating holes up to Ø40 mm with maximum drilling depth of 55 mm. The 1200 W copper motor provides powerful and stable operation over the long term. The large cooling reservoir protects the drill from overheating and significantly extends its service life. Powerful 13 000 N magnetic attraction ensures stable fixation and safe multidirectional operation. Work becomes fast, precise and efficient.
Excellent Performance
Quality Core Drills and Twist Drills
13 000 N Magnetic Attraction Force
Dual Headless Guide
VEVOR is a leading brand specialising in equipment and tool manufacturing. With thousands of employees, VEVOR provides powerful and reliable equipment at especially attractive prices. Today VEVOR products are available in more than 200 countries with more than 10 million users.
Why Choose VEVOR?
• Highest quality durability
• Especially low prices
• Fast and safe delivery
• 30-day free returns

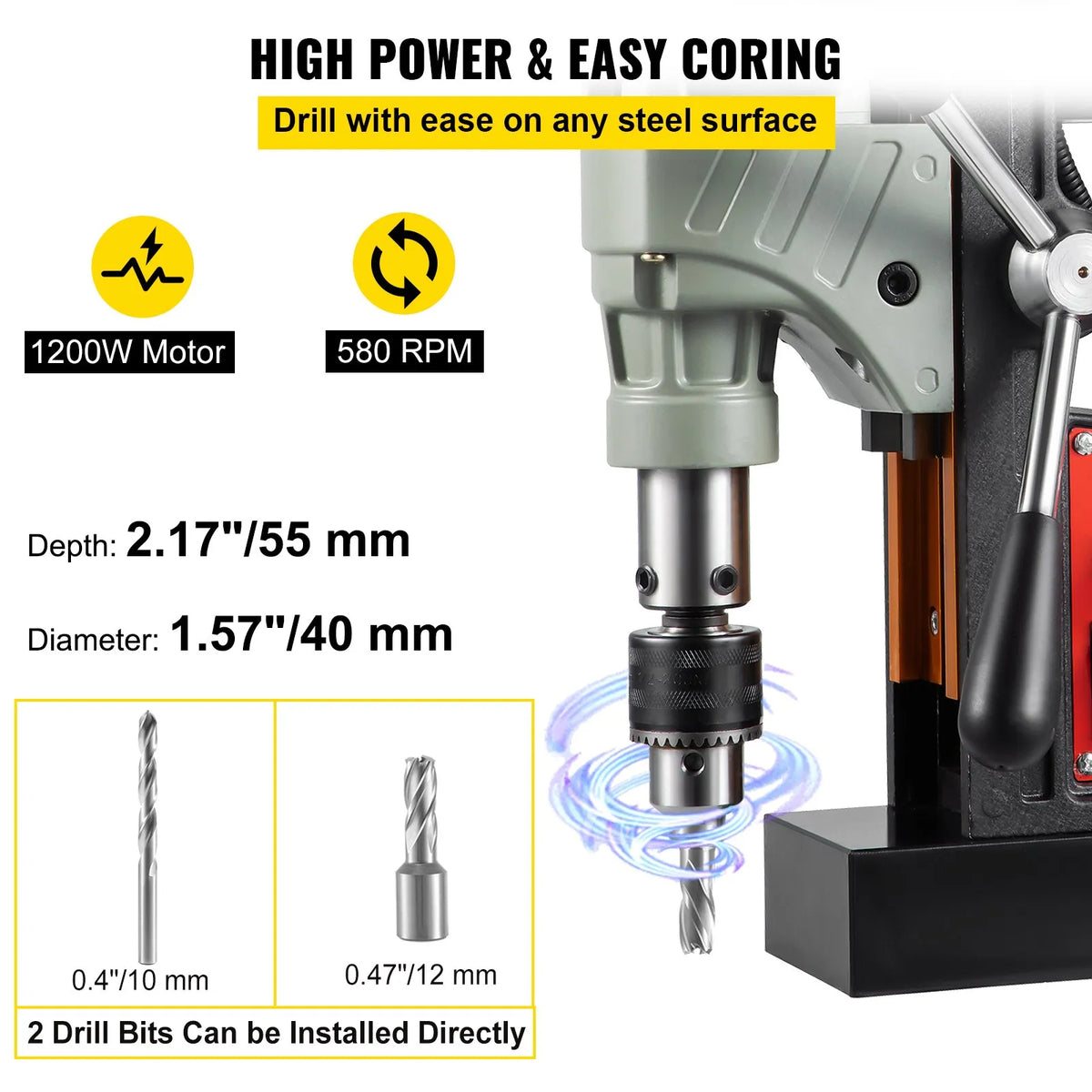

Excellent PerformanceThe magnetic drill designed for precise and intensive core drilling is equipped with a powerful 1200 W motor. Maximum core drilling diameter: Ø40 mm; maximum stroke range: 160 mm.

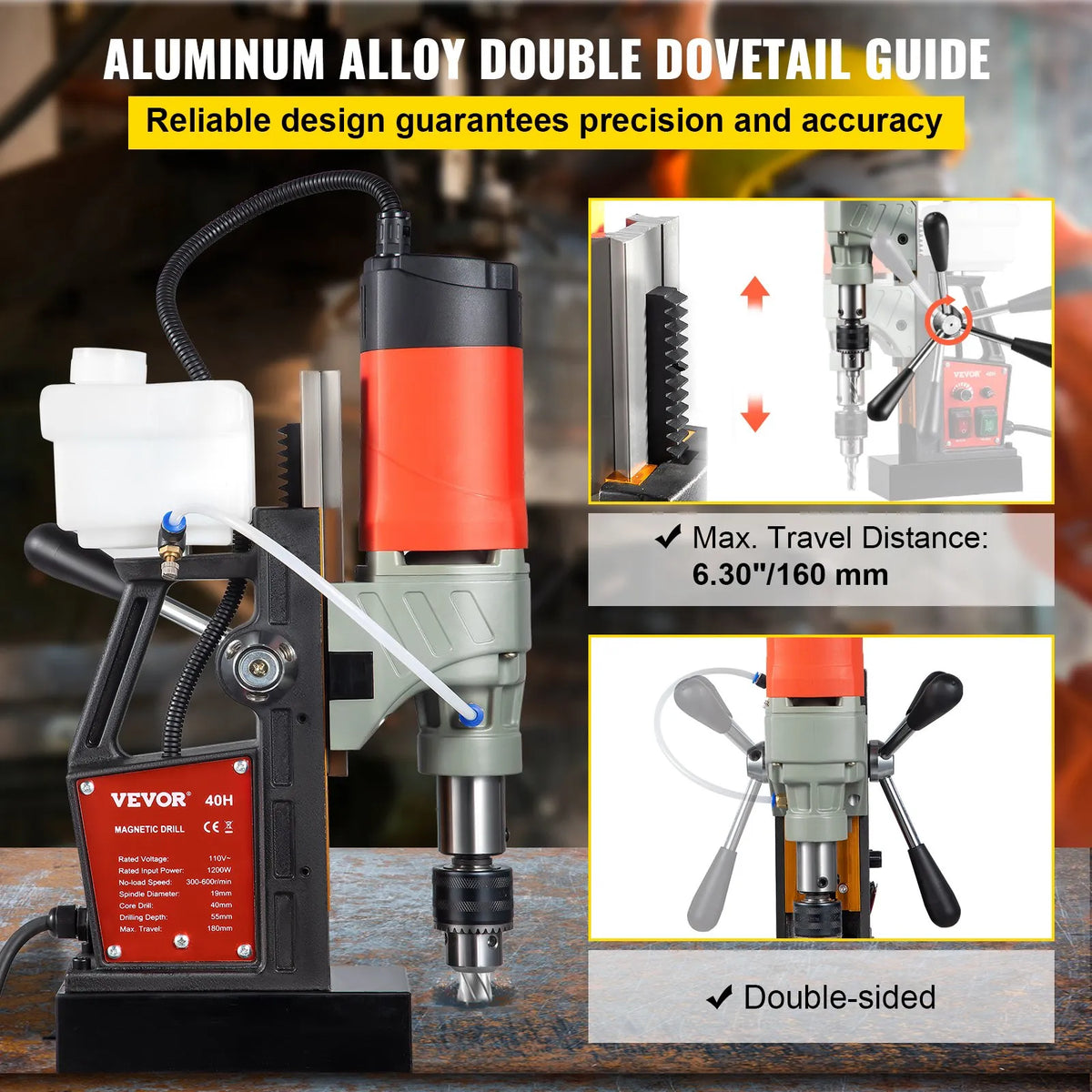

Aluminium Alloy GuideThe dual headless guide made from aluminium alloy provides greater rigidity and improves the drill's wear resistance. Maximum stroke range is 160 mm, and the crank handles can be operated from both sides of the equipment.
Two Practical Drills
Suitable for processing blanks of various sizes, providing faster and more efficient drilling with the core drills included in the package than with conventional drills.

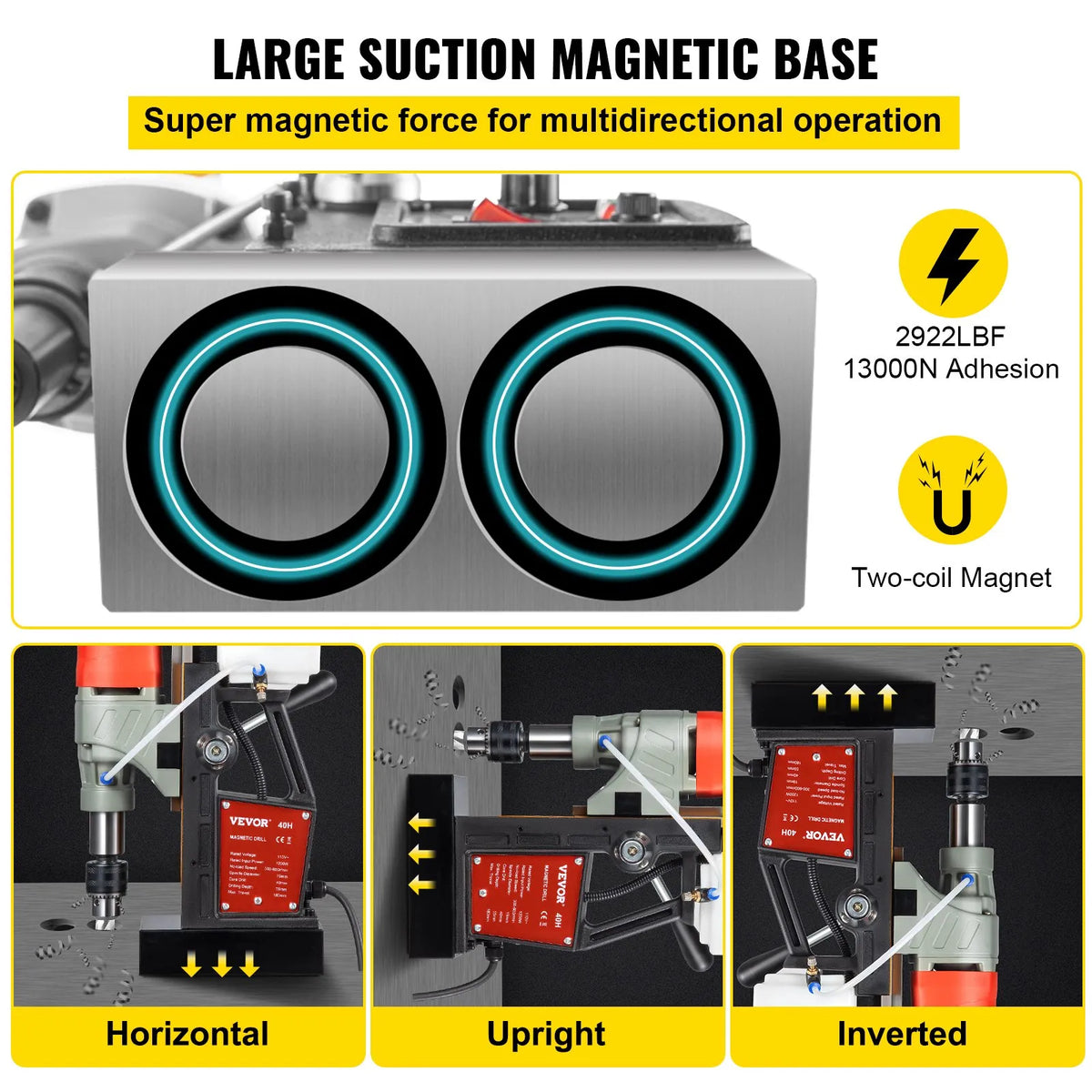

13 000 N Attraction ForceThe nearly pure iron base functions as a powerful electromagnet with 13 000 N attraction force, which securely fastens the magnetic drill and prevents it from moving during drilling.

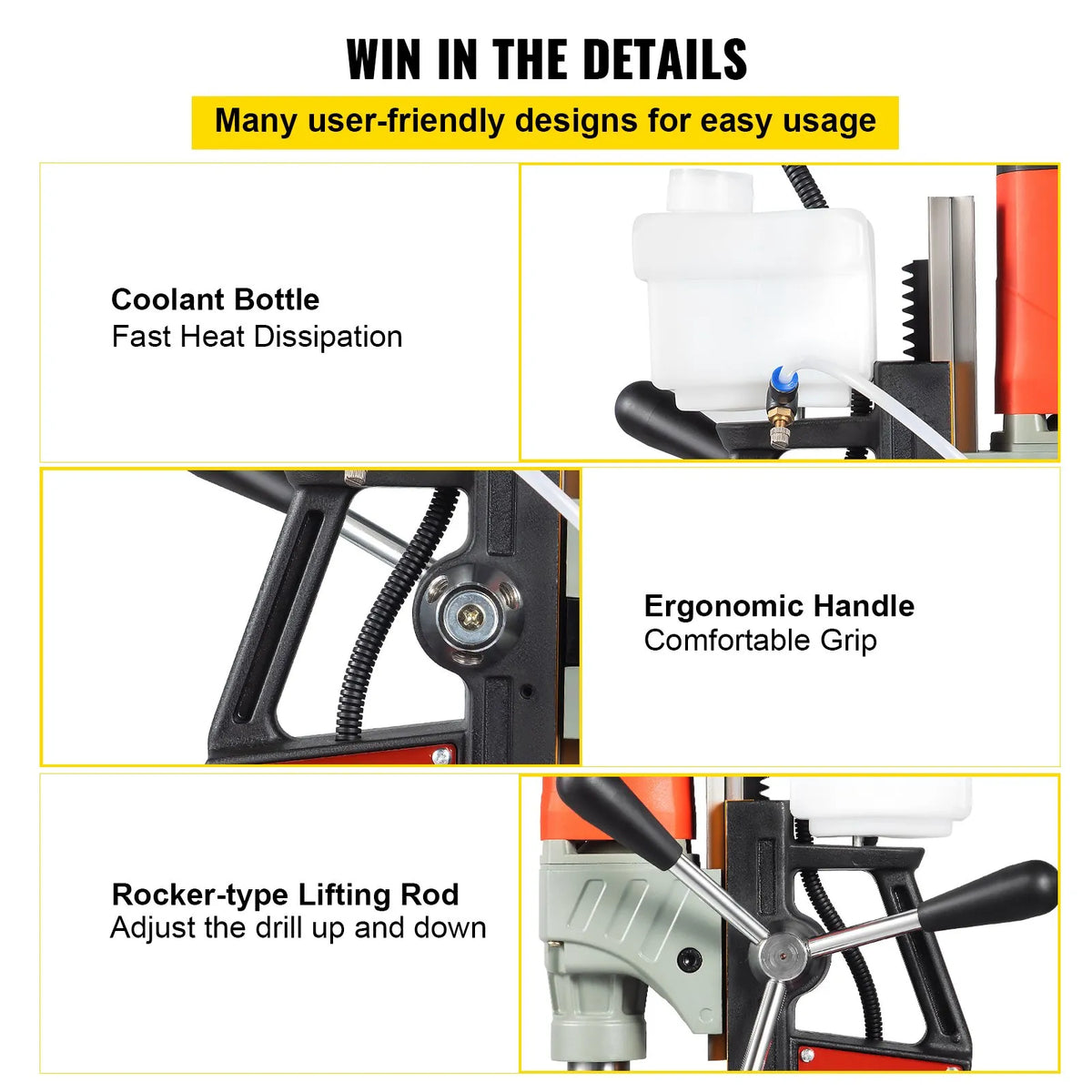

Thoughtful DetailsThe cooling bottle is equipped with a quick-connect hose connection, which extends cutter service life and ensures even drilling. Three extended crank rods allow easy adjustment of the drill height. Ergonomic handles make it easy to move the equipment.

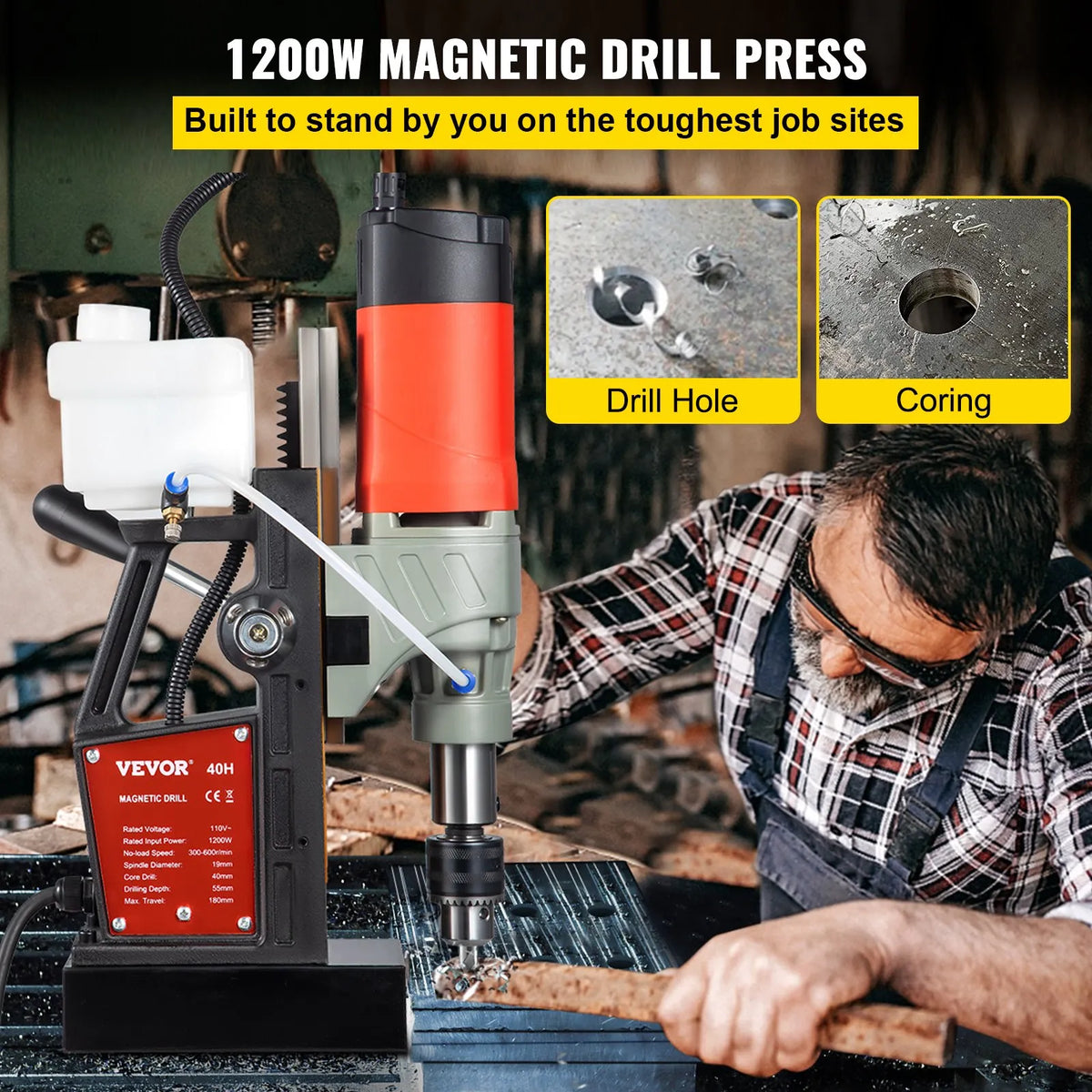

Versatile ApplicationsOur magnetic drill is widely used in steel structures, shipbuilding, bridge construction, wind energy equipment, drilling work, power grid construction and many other industries.

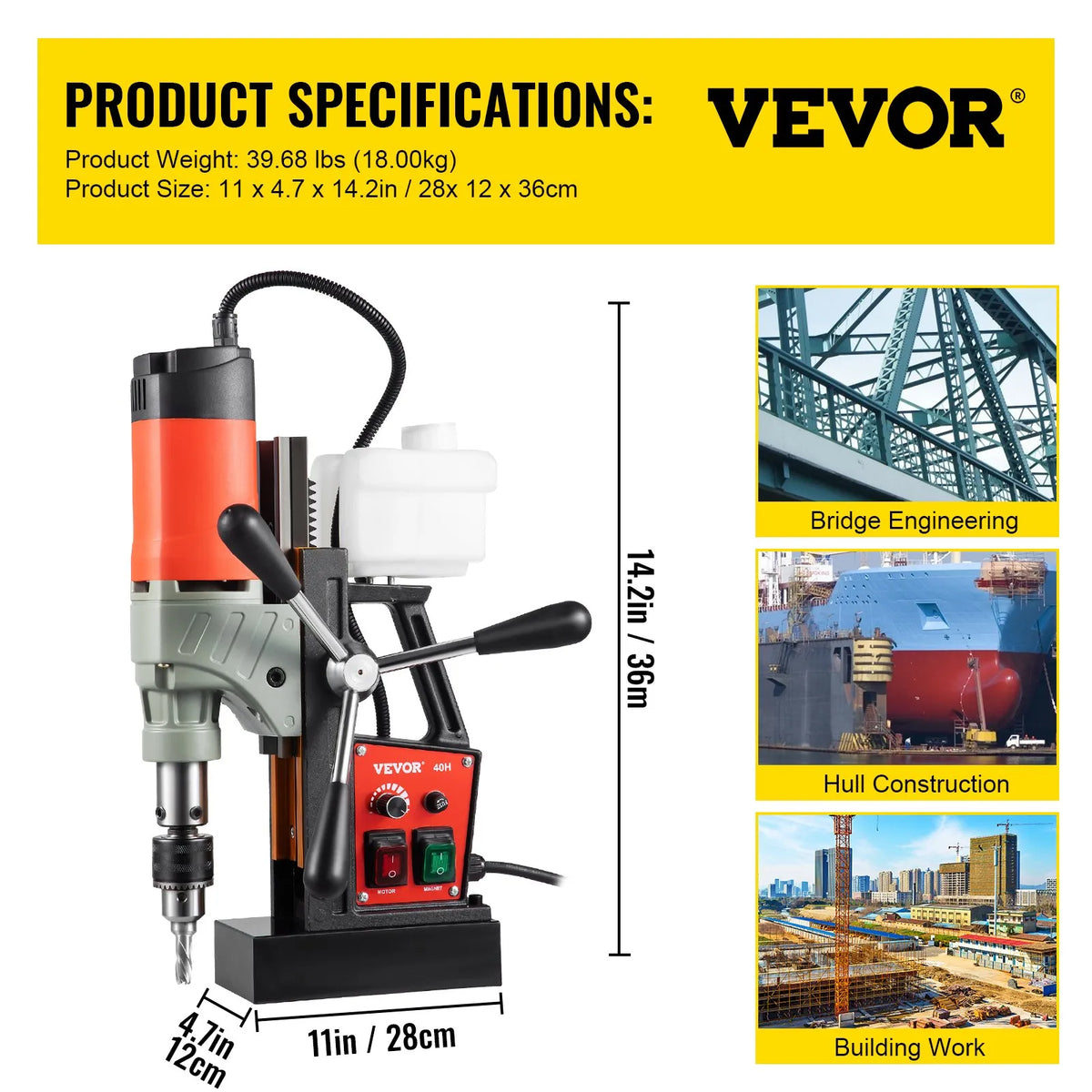

Specification
Model: VV-MD-UK2
Power: 1200 W, 50/60 Hz, 220 V, 2.6 A
Max. drilling diameter (core drill): Ø40 mm
Max. drilling diameter (twist drill): Ø16 mm
Max. stroke range: 160 mm
Variable speed: 0–580 rpm
Magnetic attraction force: 13 000 N
Magnetic base size: 166 × 80 × 50 mm
Max. drilling depth: 55 mm
Case (size): 51 × 40 × 18 cm
Equipment size: 36 × 28 × 12 cm
Product weight: 13 kg

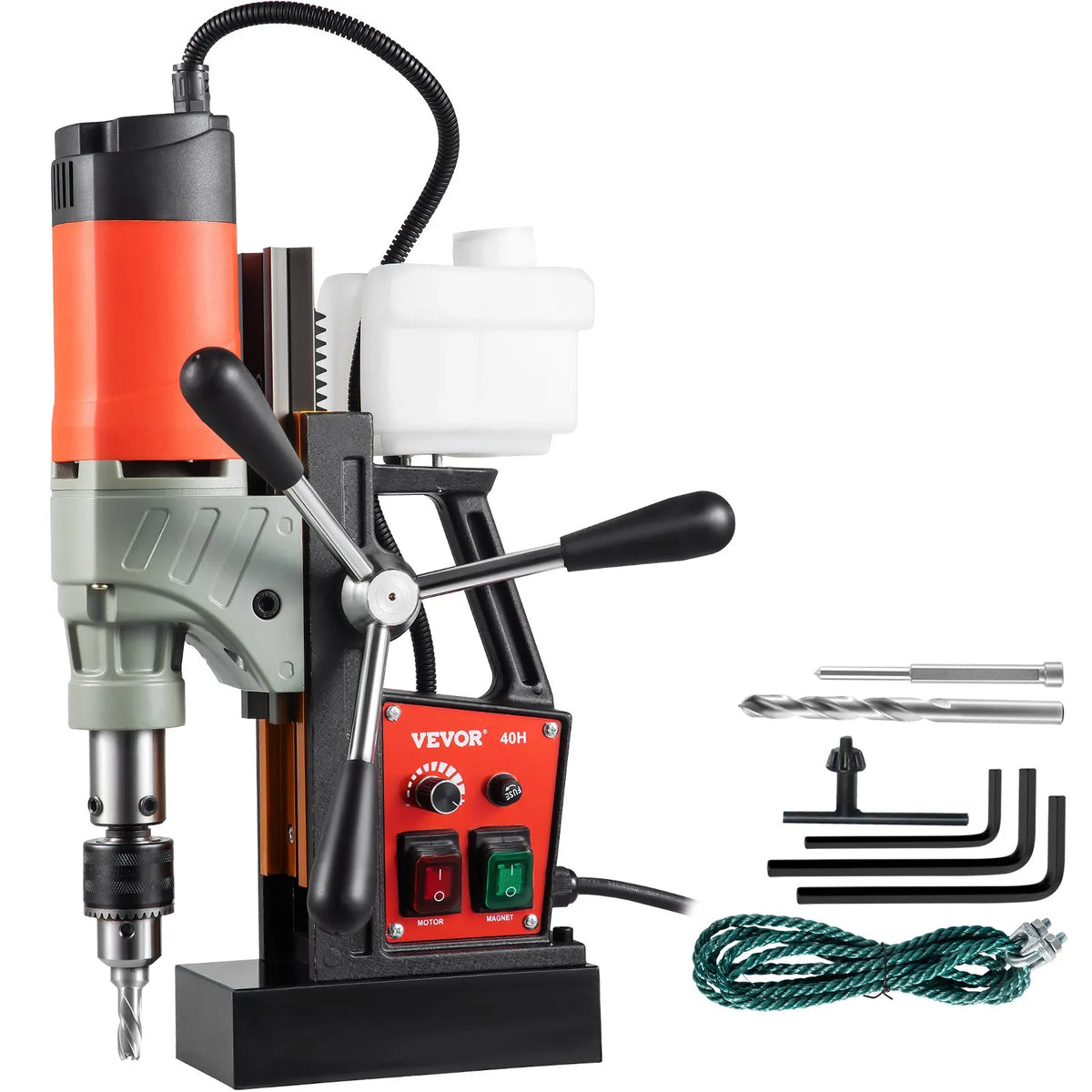

Package Contents
1 × core drill (Ø12 mm)
1 × twist drill (Ø10 mm)

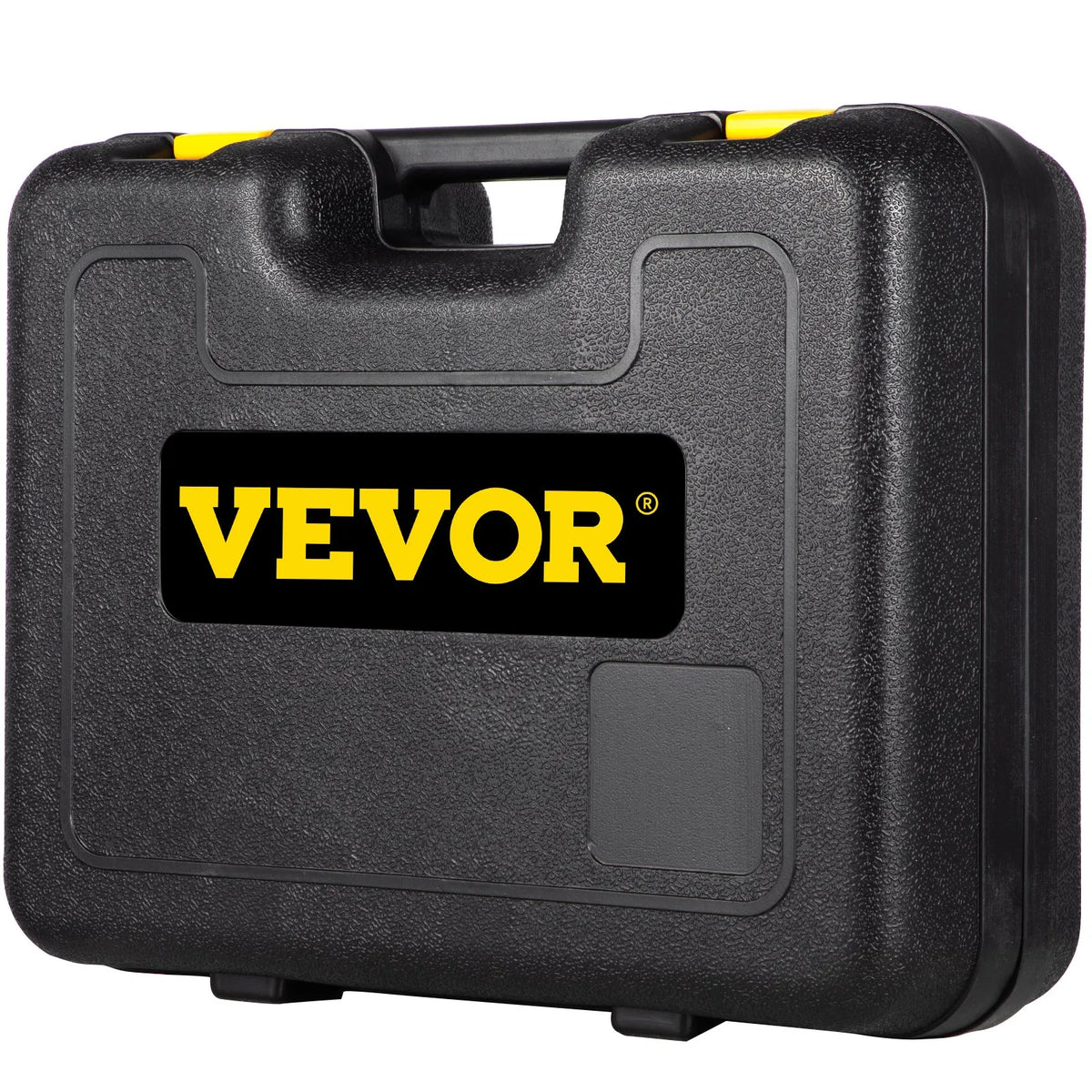

1 × case
1 × cooling reservoir
1 × drill chuck
1 × centre punch (6.34 × 102 mm)
1 × safety rope
1 × user manual
