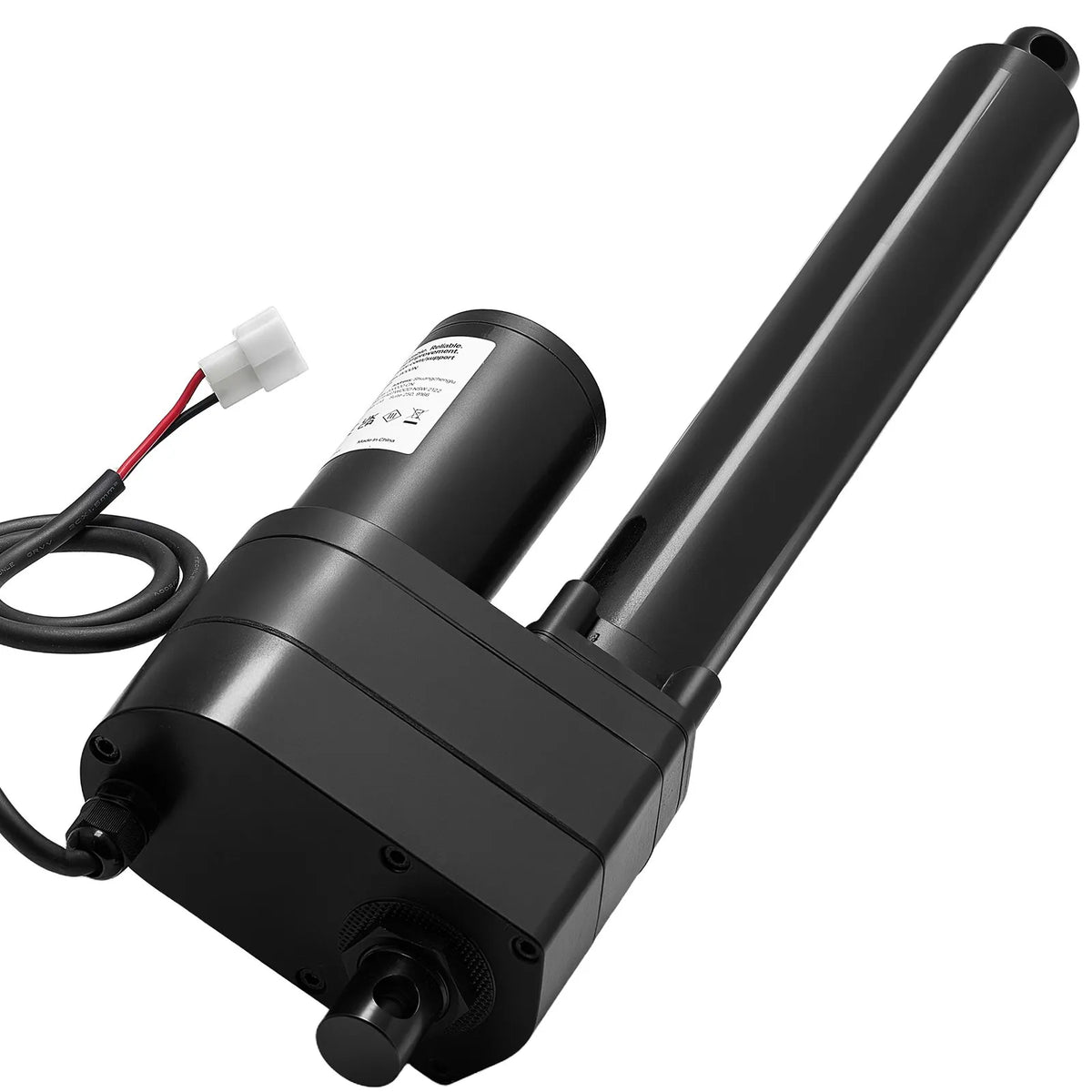

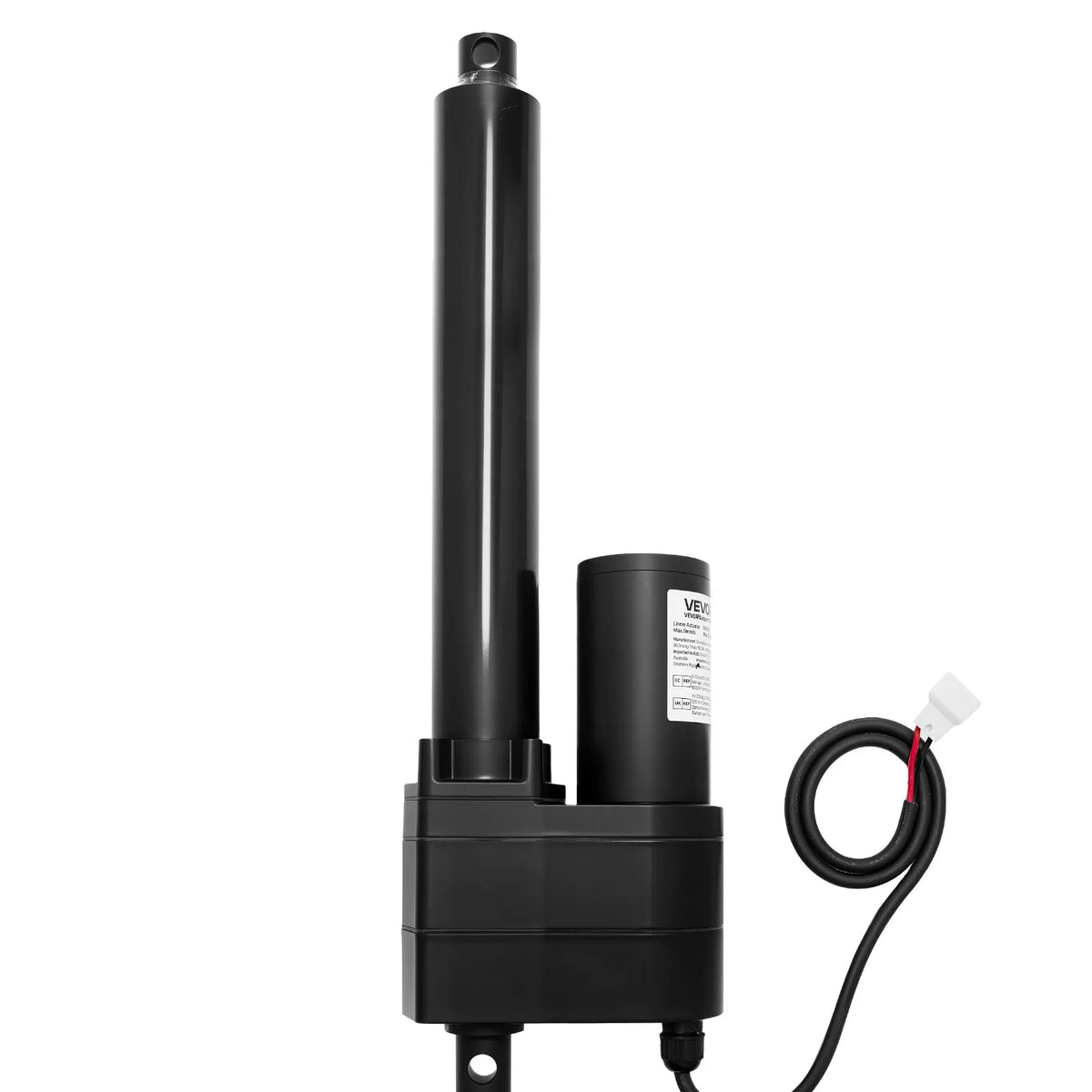

VEVOR Linear Actuator 12 V 20 cm Heavy Duty 9000 N Linear Motion Actuator IP65 5 mm/s with Mounting Brackets for Industrial Equipment Ships and Heavy Lifting Systems

Features and Details

Industrial-grade pulling force: Delivering an impressive 9000 N pulling force, the VEVOR 12 V heavy-duty linear actuator is designed for extreme conditions and large loads. It is ideally suited for demanding industrial automation, heavy lifting systems and mechanical equipment.

Premium IP65 protection: Equipped with IP65 protection class, this 12 V linear actuator provides protection against dust and water, making it suitable for use both indoors and outdoors. (Prolonged exposure to outdoor conditions is not recommended for extended service life.)

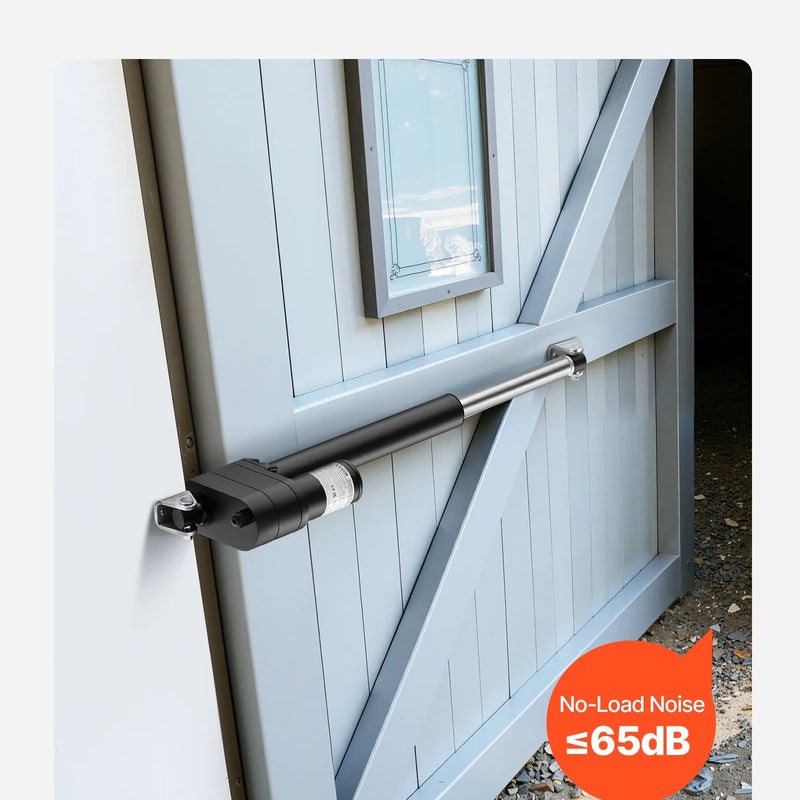

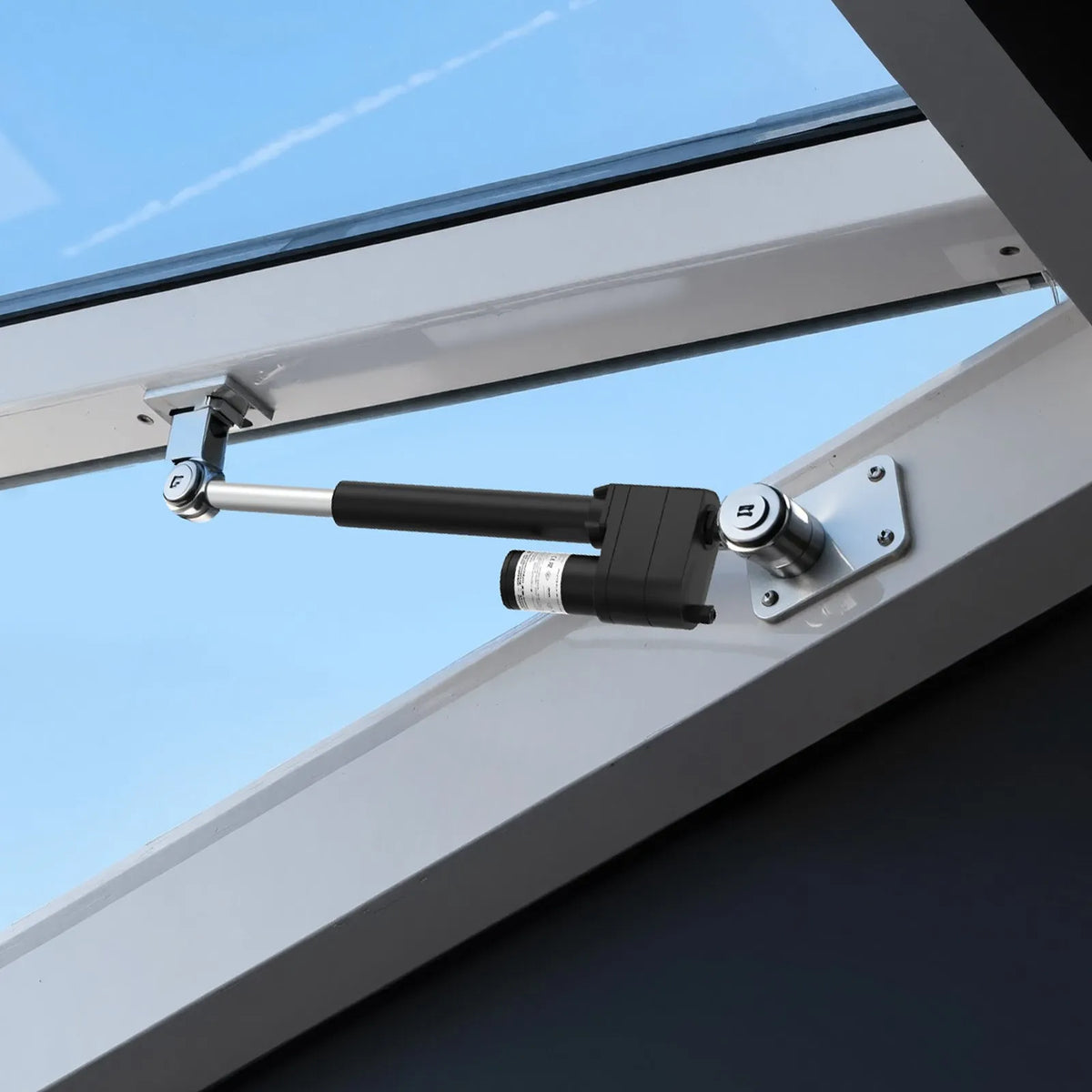

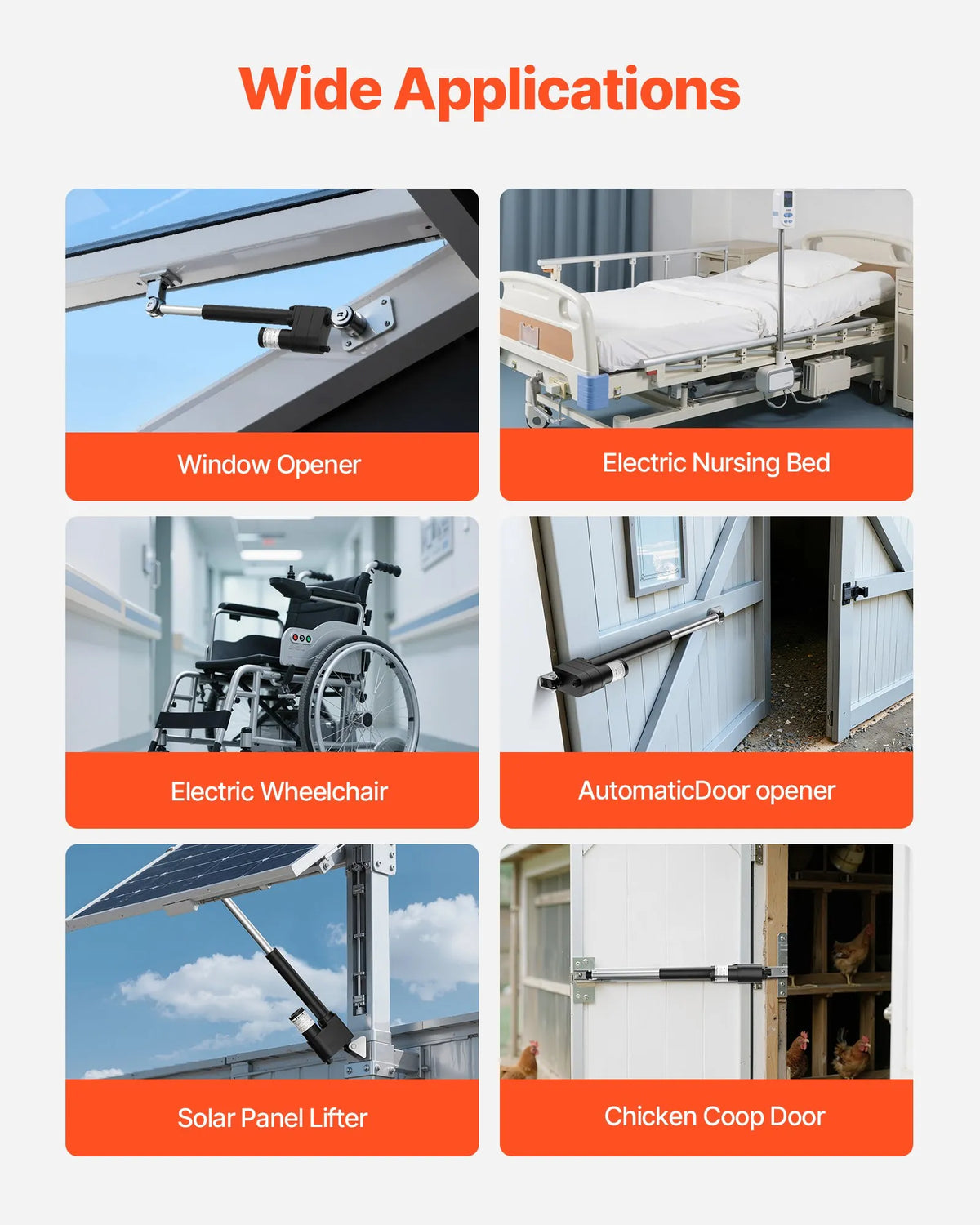

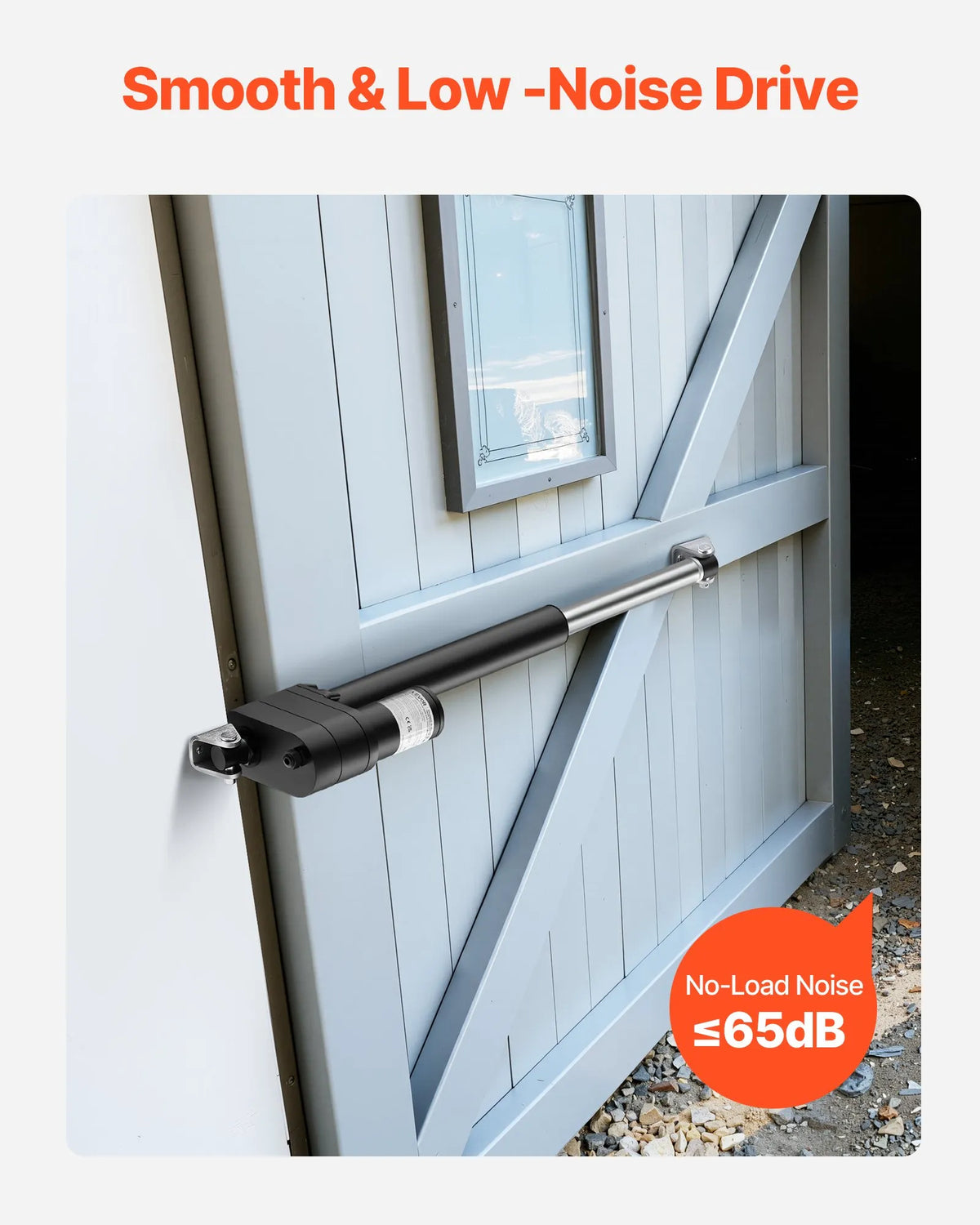

Wide range of applications: This heavy-duty linear actuator operates at a noise level below 65 dB without load and is suitable for barn doors, heavy robotic arm movement, heavy equipment, ships, transport systems, heavy lifting platforms, industrial automation systems and other heavy-load tasks.

Designed for heavy-duty operation: Equipped with a durable aluminium alloy housing and reinforced seals, this linear motion actuator provides high durability and corrosion protection, making it suitable for operation in warehouses, factories and industrial environments.

Key specifications: Movement speed: 5 mm/s; Stroke length: 20 cm; Length in extended position: 65.2 cm; Length in retracted position: 45.2 cm; Current consumption: 20 A; Input voltage: DC 12V.

Effective stroke adjustment and smooth motion control

The VEVOR heavy-duty linear actuator delivers a powerful 9000 N pulling force, IP65 protection class and smooth motion at 5 mm/s, offering reliable support and efficient operation for industrial automation, heavy lifting systems, mechanical equipment, transport systems and other applications.

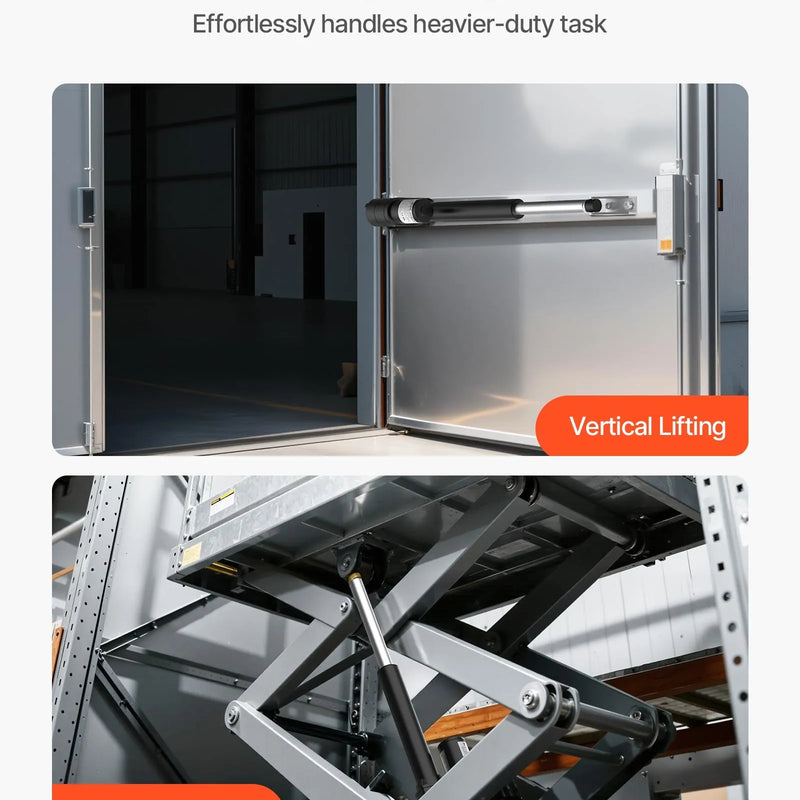

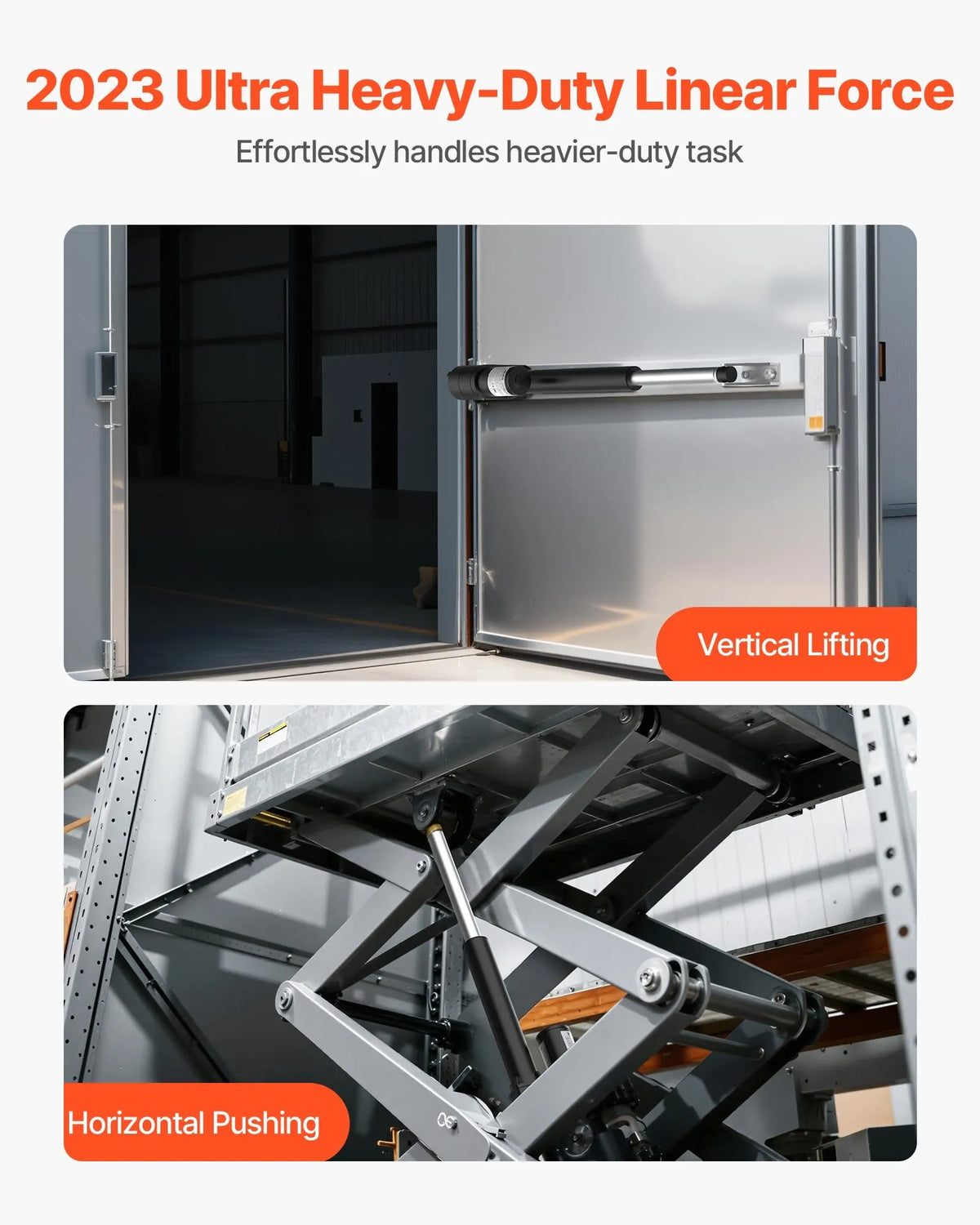

The VEVOR 12 V heavy-duty linear actuator delivers powerful 9000 N vertical lifting force and horizontal pushing power, enabling efficient and precise execution of various heavy-load tasks.

With IP65 protection class, our 12 V linear actuator provides protection against dust and water, ensuring reliable operation both indoors and outdoors. (Note: prolonged exposure to outdoor conditions is not recommended for extended service life.)

For optimal performance, we recommend using the linear actuator together with a controller, which provides more precise motion control. The package includes only the push rod; additional equipment required for installation must be purchased separately.

Product dimensions are clearly specified for convenient selection and suitability. Stroke length: 20 cm; Length in extended position: 65.2 cm; Length in retracted position: 45.2 cm.

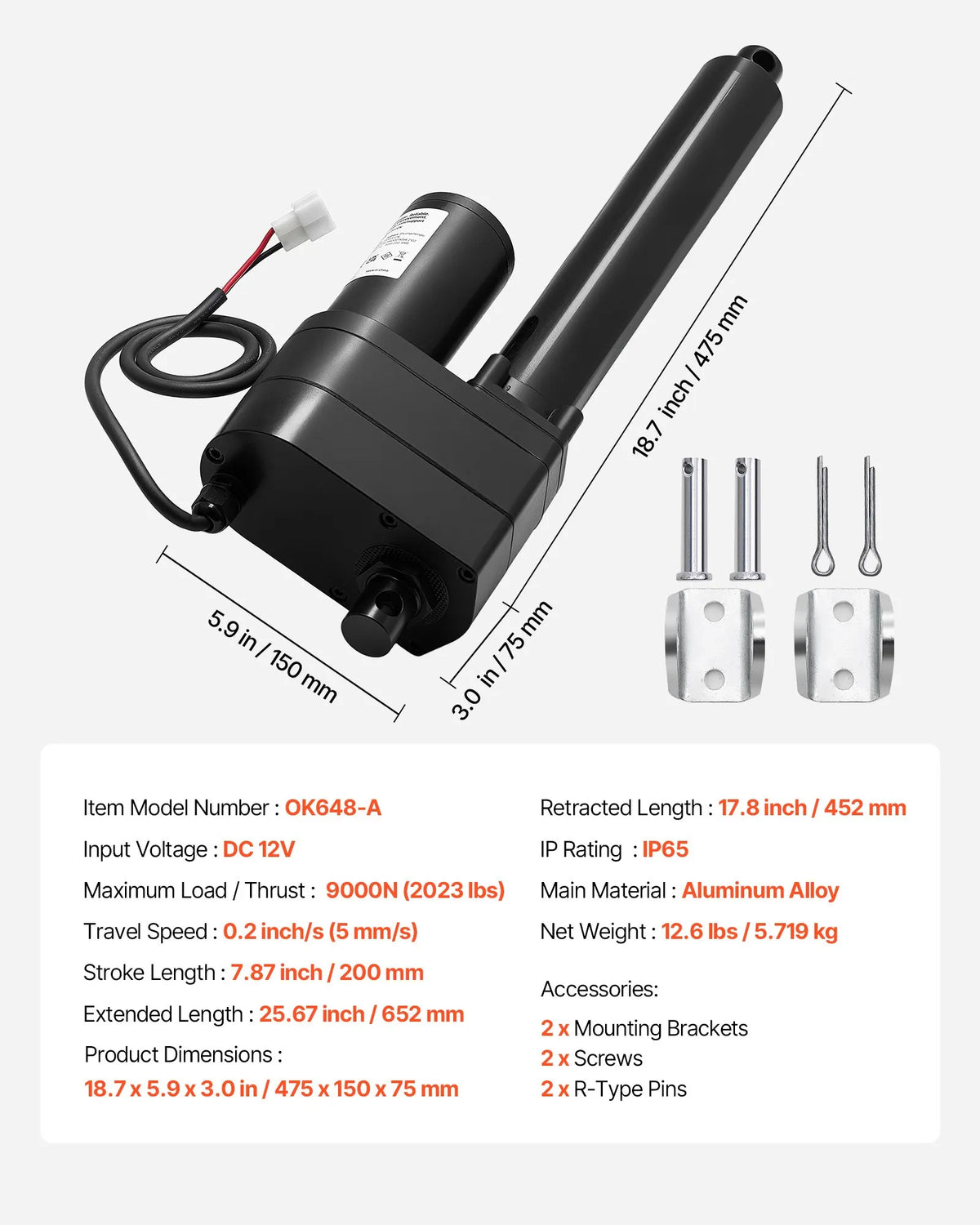

Specification

Model number: OK648-A
Input voltage: DC 12V
Maximum load / pulling force: 9000 N
Movement speed: 5 mm/s
Stroke length: 20 cm
Length in extended position: 65.2 cm
Length in retracted position: 45.2 cm
Protection class: IP65
Main material: Aluminium alloy
Net weight: 5.72 kg
Product dimensions: 47.5 x 15 x 7.5 cm

Heavy-load drive system with 9000 N pulling force

This 12 V heavy-duty linear actuator is designed for demanding lifting and pushing applications requiring high power. With a 9000 N pulling force, it can withstand large mechanical loads and maintain efficient operation even in extreme conditions. Whether used in agricultural machinery, mechanical lifts, industrial automation lines or transport systems, the actuator provides smooth operation even under very heavy loads.

Unlike light-duty actuators that lose stability under heavy loads, this model maintains consistent speed, precise linear motion and minimal vibration. Such reliability is essential in environments where motion control affects the safety of heavy equipment and the efficiency of industrial processes. Thanks to its high power, the actuator can often replace hydraulic systems, providing lower maintenance requirements and high pulling force.

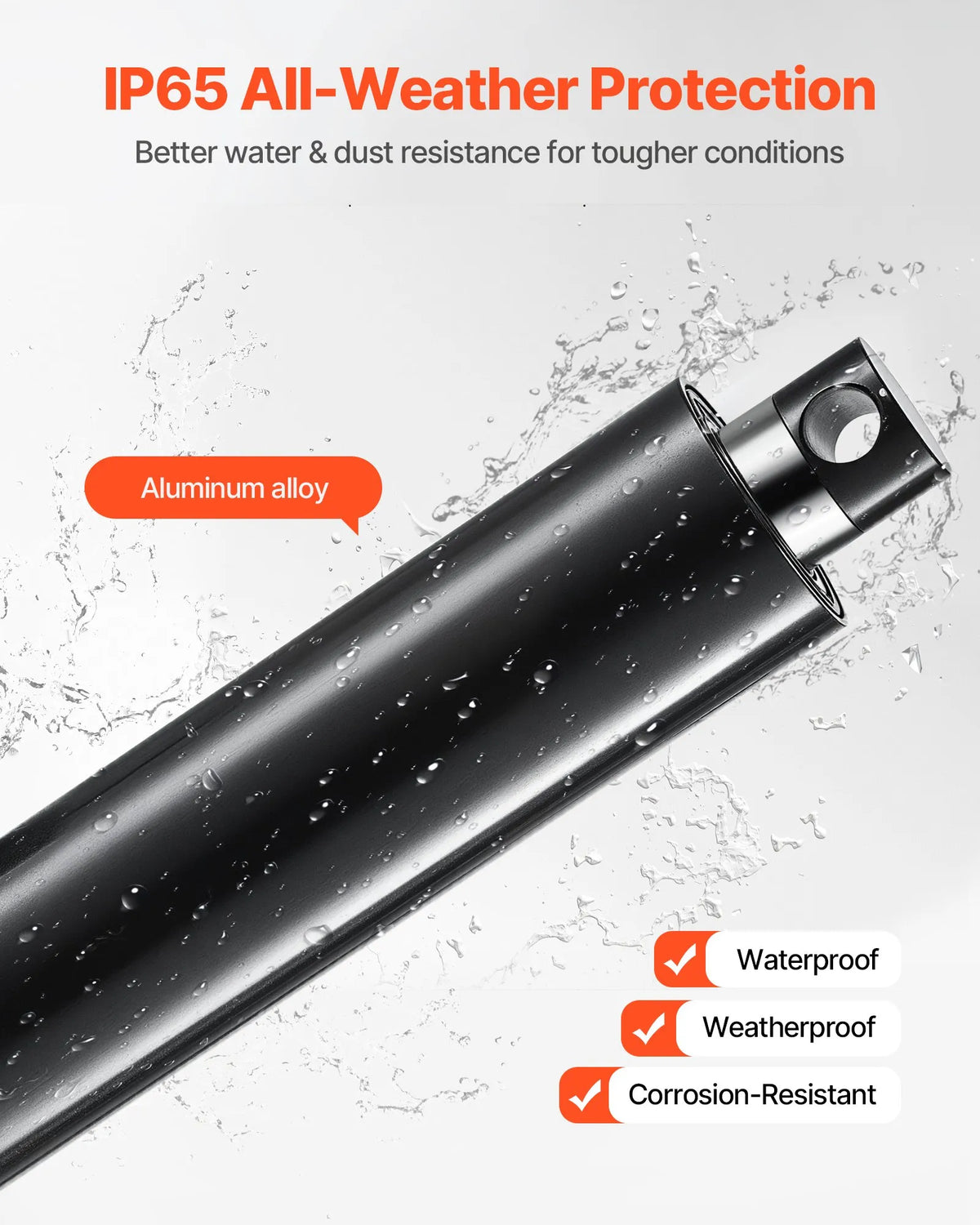

IP65 water resistance for operation in challenging conditions

Thanks to the IP65 protection class, this 12 V heavy-duty linear actuator can be safely used in open areas where moisture, dust or contaminants could damage internal components. The hermetic housing, reinforced seals and protected motor housing prevent water, dust and fine particles from entering the mechanism. This means protection against corrosion and electrical damage when using the actuator in agricultural machinery, marine equipment, municipal vehicles, loading systems and automated outdoor systems.

Since many heavy-duty tasks take place in dirty environments and poor weather conditions, the actuator's protected construction is important for long service life. Rain, temperature fluctuations and dust have minimal impact on its operation. The actuator operates reliably regardless of installation location.

Precise motion with 20 cm stroke for reliable positioning

The 20 cm stroke length provides precise linear motion in applications requiring controlled extension and retraction. The consistent movement speed of 5 mm/s helps maintain stability and prevents unwanted motion under heavy loads. The internal screw mechanism provides minimal backlash and precise repeatability even after thousands of work cycles.

Such precision is essential for industrial lifting tables, heavy doors, robotic systems, adjustable platforms and mechanical pushing or pulling systems, where motion quality and safety are very important. The actuator provides smooth motion even under heavy load, protecting attached components from uneven loading.

Durable aluminium alloy housing for heavy industrial loads

The actuator housing is made from durable aluminium alloy, providing high mechanical strength and corrosion protection. In industrial environments, impacts, vibration, chemical exposure and moisture are frequently encountered. The durable outer housing absorbs mechanical impacts and maintains structural shape. This reduces wear on internal components and helps extend the service life of the entire mechanism.

Even in environments where rust and oxidation are common, such as dusty warehouses, workshops, coastal areas and manure production facilities, the actuator maintains long service life. Aluminium does not rust, so the construction is suitable for long-term use. The hermetic motor compartment and aluminium housing ensure stable operation in various temperature and humidity conditions.

Heavy-duty operation for mechanisms, robotics and transport systems

This 12 V heavy-duty linear actuator is suitable for a wide range of heavy-load applications across various industries. It is particularly suitable for moving and lifting heavy metal or wooden structures, such as barn doors, where stable force is required. In robotic systems and automatic pushing systems, the actuator provides the necessary power to move large objects without deflection.

Transport systems, such as trailers, ships and industrial carts, benefit from the durable construction. Dust and moisture resistance ensure reliable operation even in muddy, salty, vibration-prone and frequently moving environments. The actuator is suitable for equipment adjustment, compartment mechanisms and multi-stage lifting systems.

Optimised 12 V DC electrical system for simple integration

The actuator operates on 12 V DC power, which facilitates integration into vehicles, automation systems, agricultural machinery, robotics and industrial control systems. It consumes 20 A of current, providing high pulling force without excessive load on the power system. Simple electrical installation allows easy integration of the actuator into both new systems and existing solutions.

The 12 V configuration allows the actuator to be used with battery systems, making it suitable for mobile platforms, autonomous equipment and emergency lifting or positioning systems. The motor provides smooth operation and high torque at start-up, reducing load on the mechanism. The electrical system is designed for simple and reliable operation with minimal maintenance requirements.

Flexible mounting options with retracted and extended position dimensions

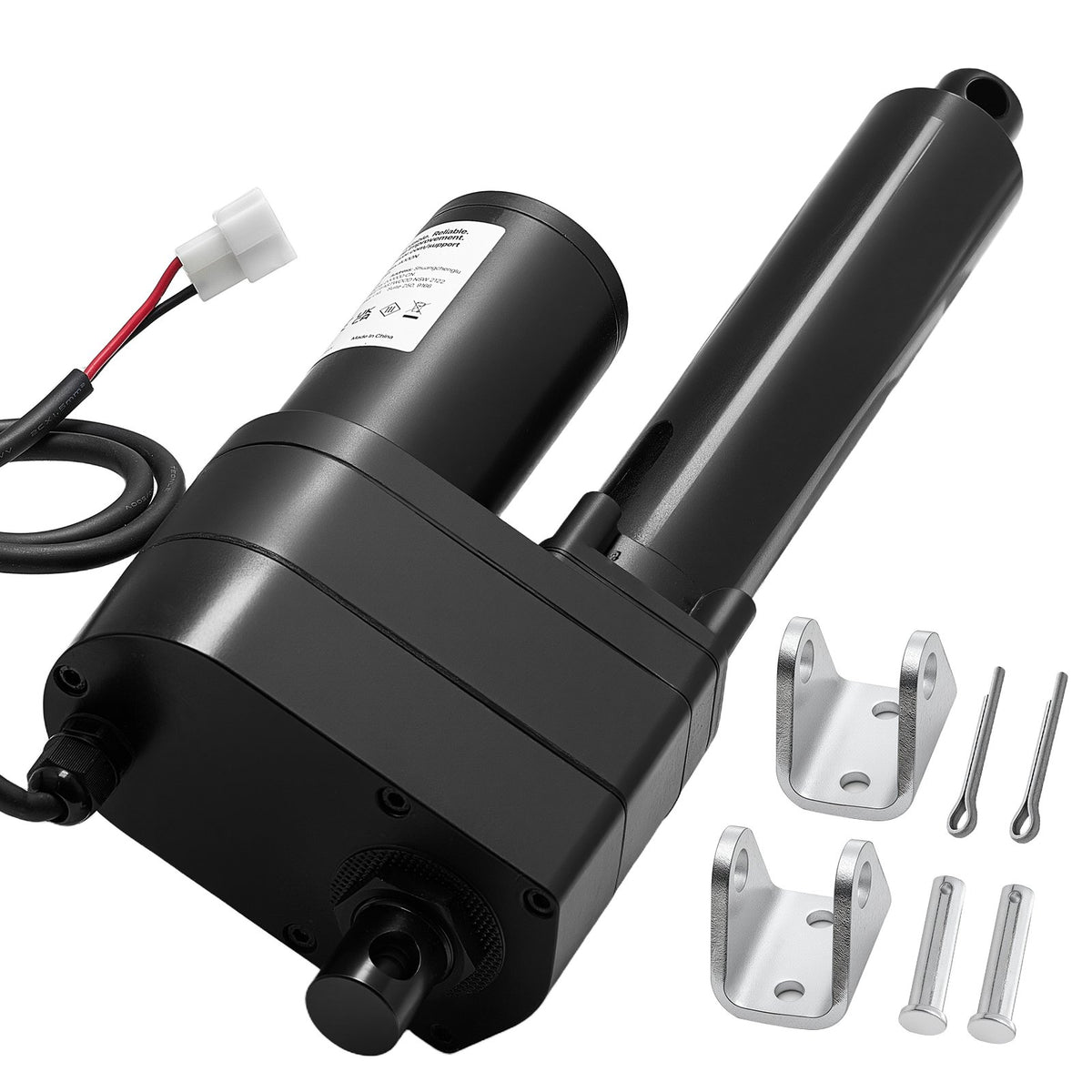

The actuator length in retracted position is 45.2 cm and in extended position 65.2 cm. This provides extensive installation options for both short and long stroke applications. The mounting brackets included in the package facilitate installation in both stationary and mobile structures, ensuring proper alignment in any position.

This flexibility allows the actuator to be used in large structures requiring longer strokes and in confined spaces within equipment frames. The design helps prevent compatibility issues in various industrial systems. The actuator provides smooth and reliable motion in both standard lifting platforms and custom-designed equipment.
