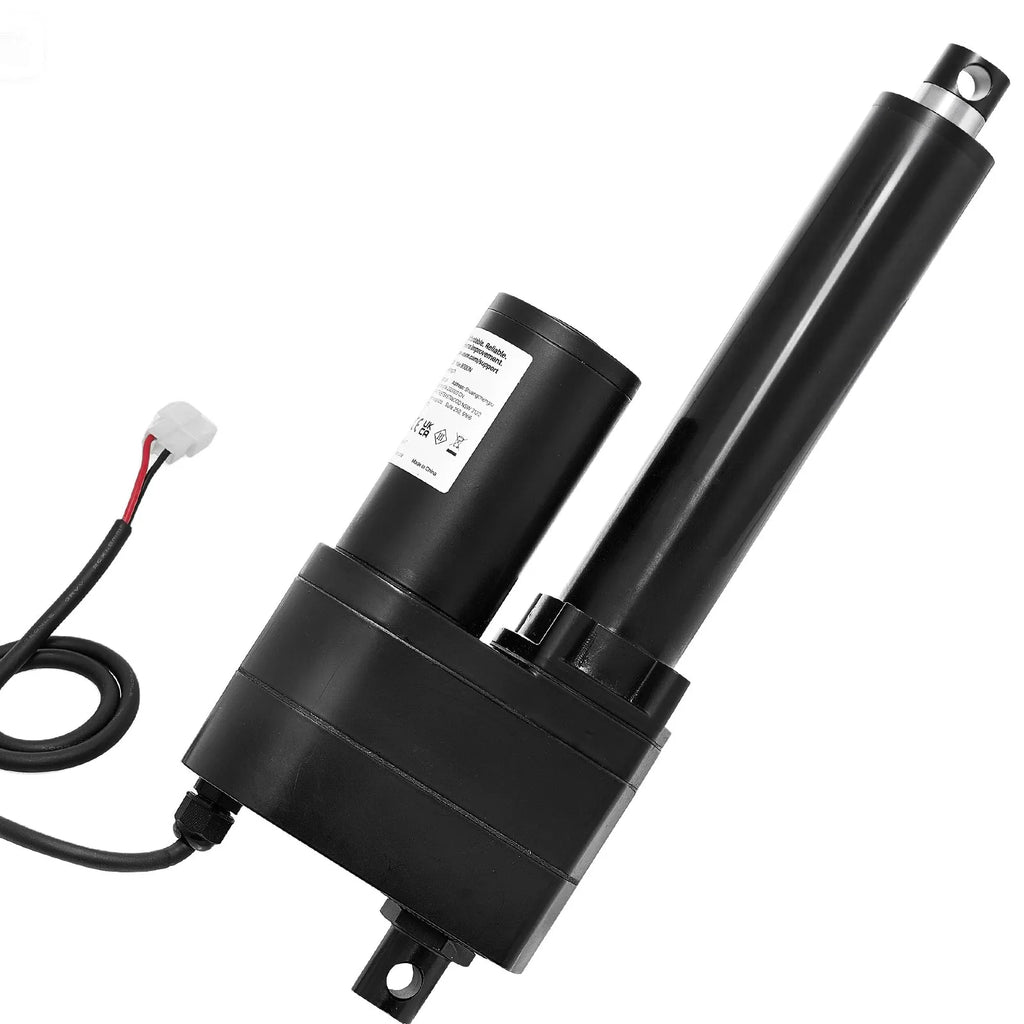

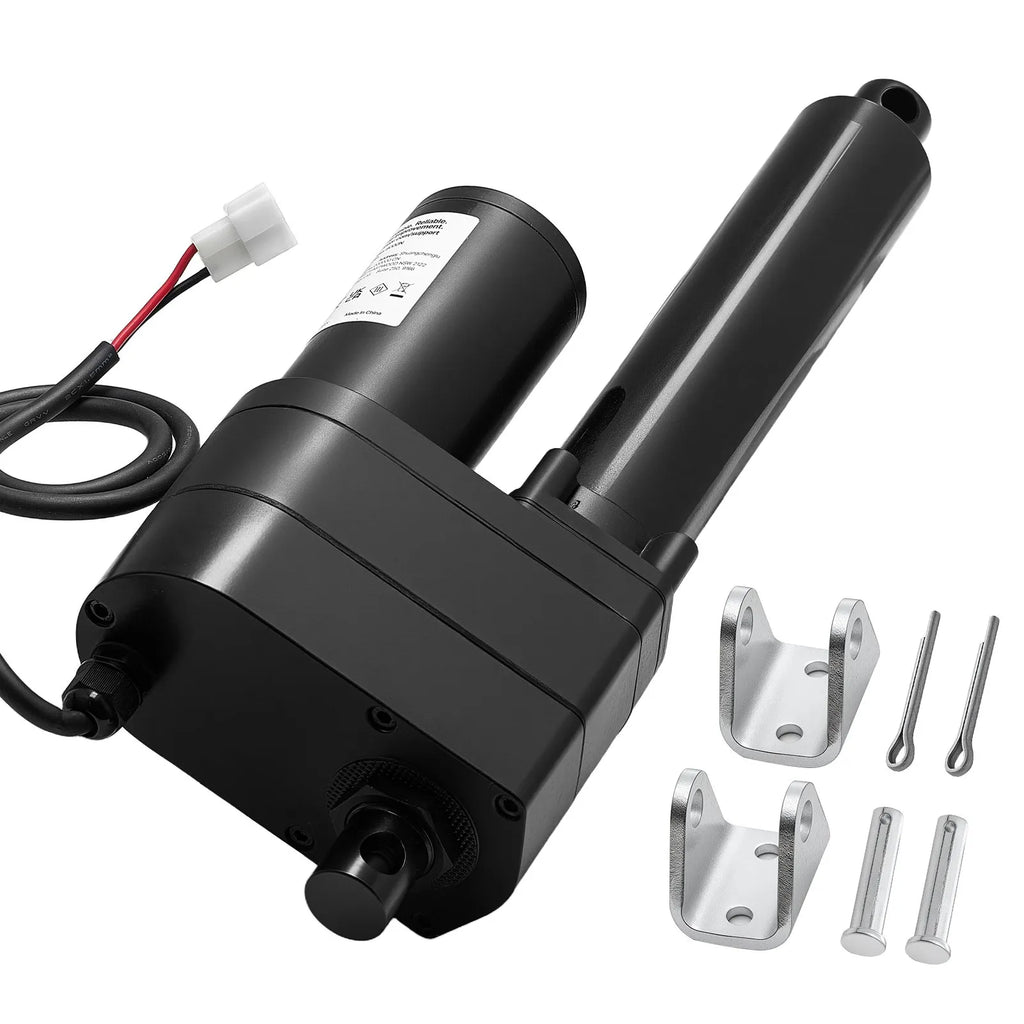

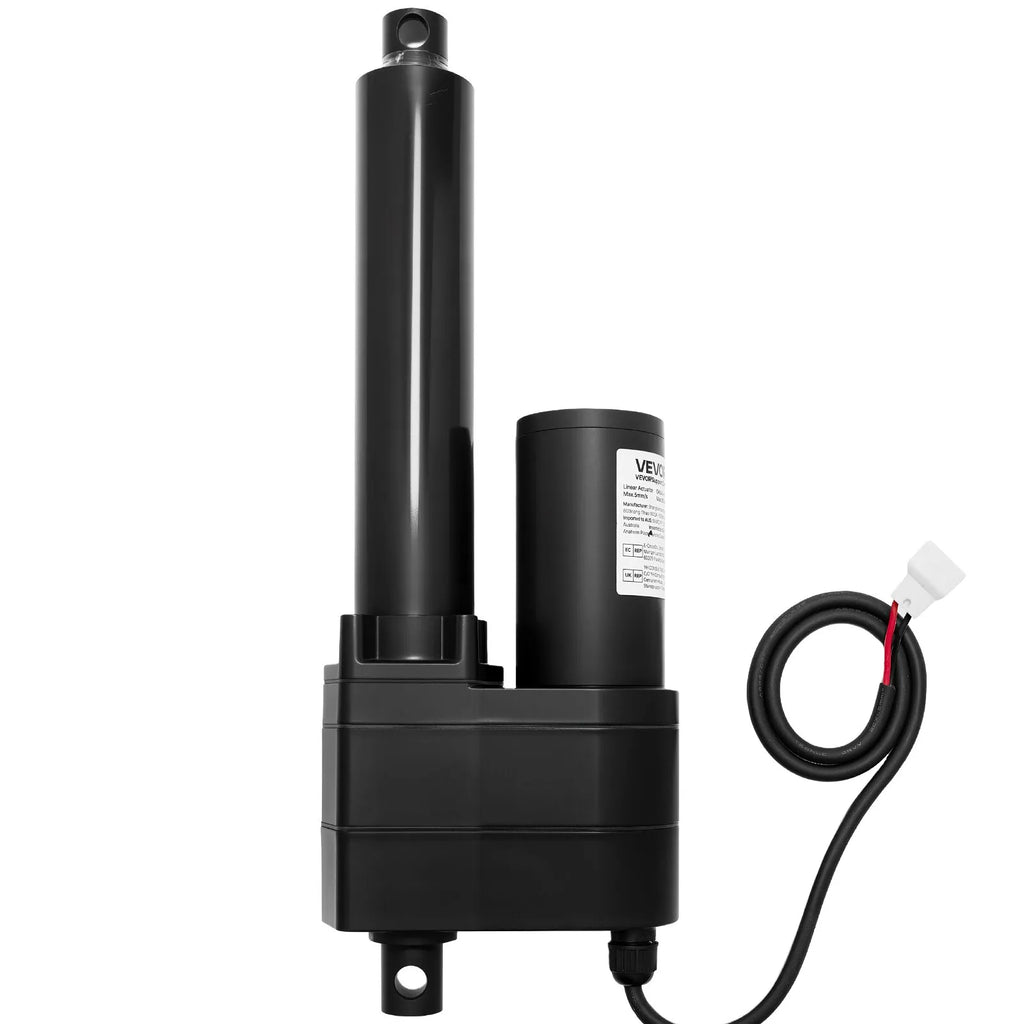

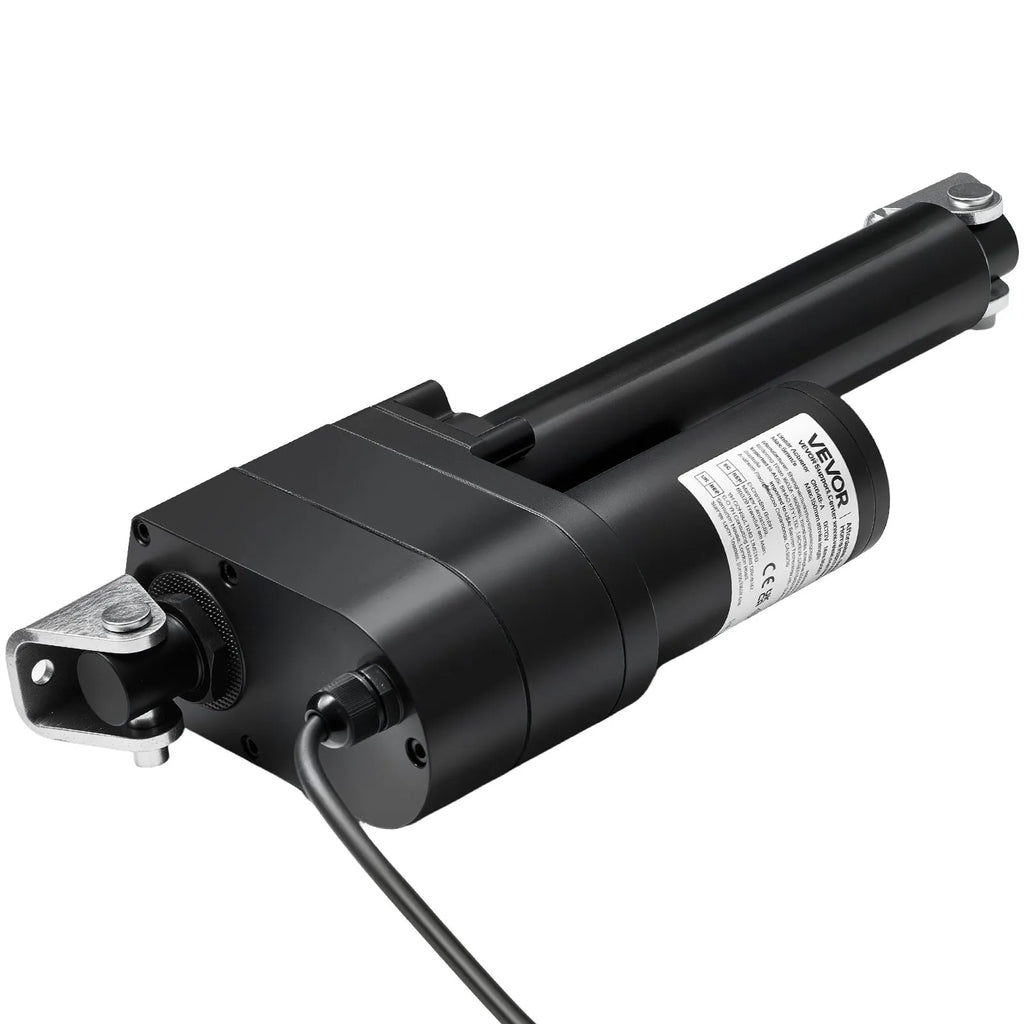

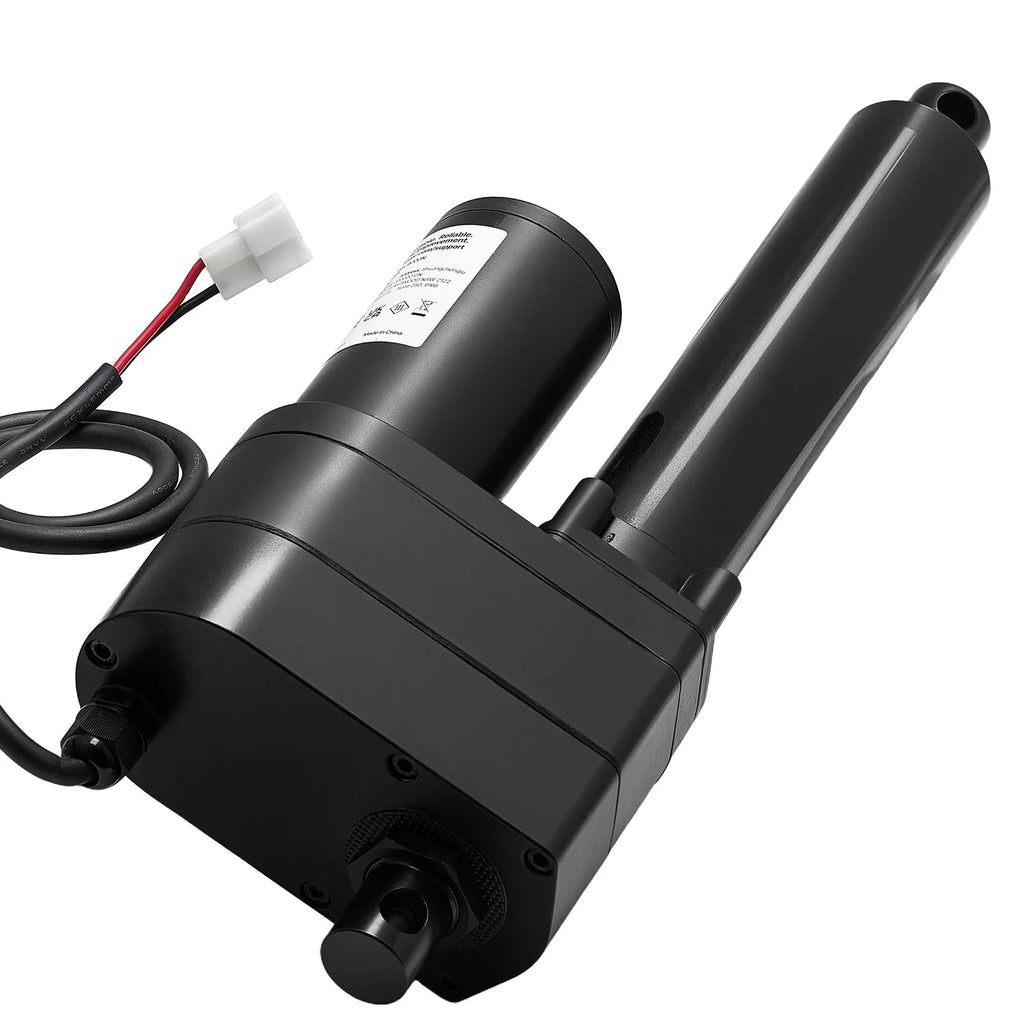

VEVOR Linear Actuator 12 V 15 cm Heavy Duty 9000 N Linear Motion Actuator IP65 5 mm/s with Mounting Brackets for Industrial Equipment Ships and Heavy Lifting Systems

Features and Details

Industrial-grade pulling force: Delivering an impressive 9000 N pulling force, the VEVOR 12 V heavy-duty linear actuator is designed for extreme conditions and large loads. It is ideally suited for demanding industrial automation, heavy lifting systems and mechanical equipment.

Premium IP65 protection: Equipped with IP65 protection rating, this 12 V linear actuator provides protection against dust and water, making it suitable for use both indoors and outdoors. (Prolonged exposure to outdoor conditions is not recommended for extended service life.)

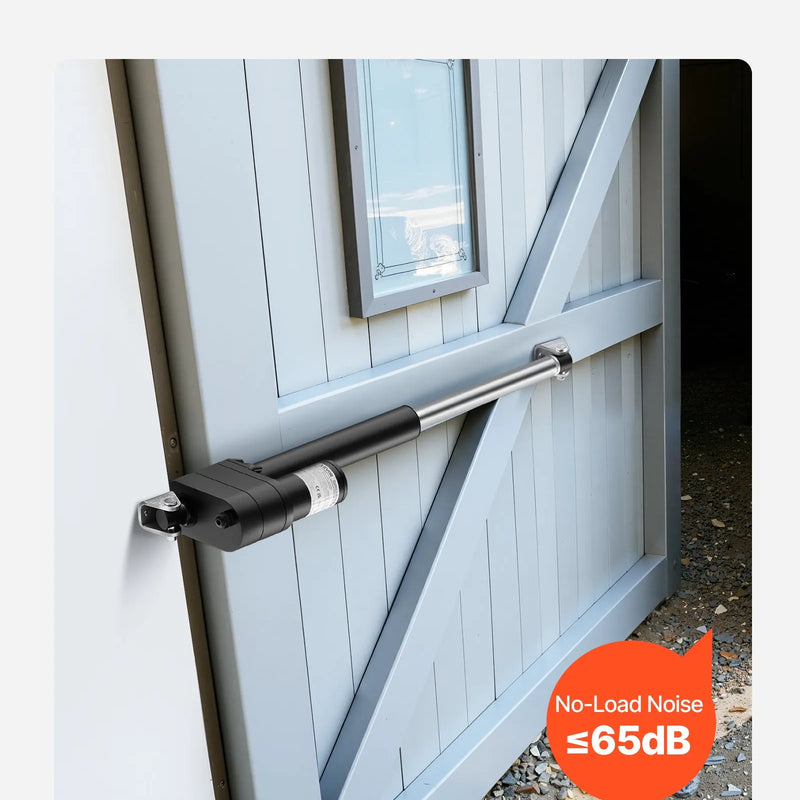

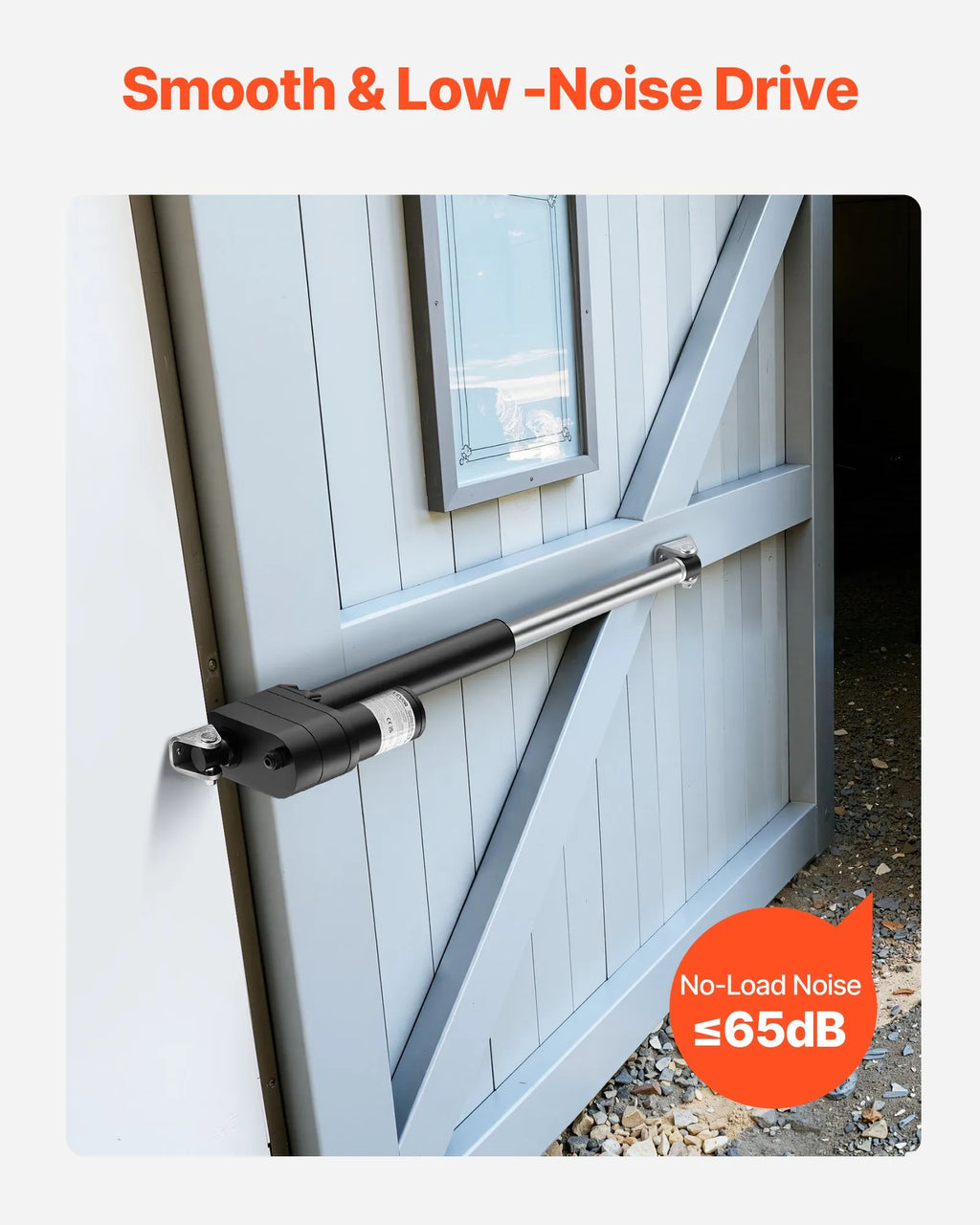

Wide range of applications: This heavy-duty linear actuator operates at a noise level below 65 dB without load and is suitable for barn doors, heavy robotic arm movement, heavy equipment, ships, transport systems, heavy lifting platforms, industrial automation systems and other heavy-load tasks.

Designed for heavy-duty operation: Equipped with a durable aluminium alloy housing and reinforced seals, this linear motion actuator provides high durability and corrosion protection, making it suitable for operation in warehouses, factories and industrial environments.

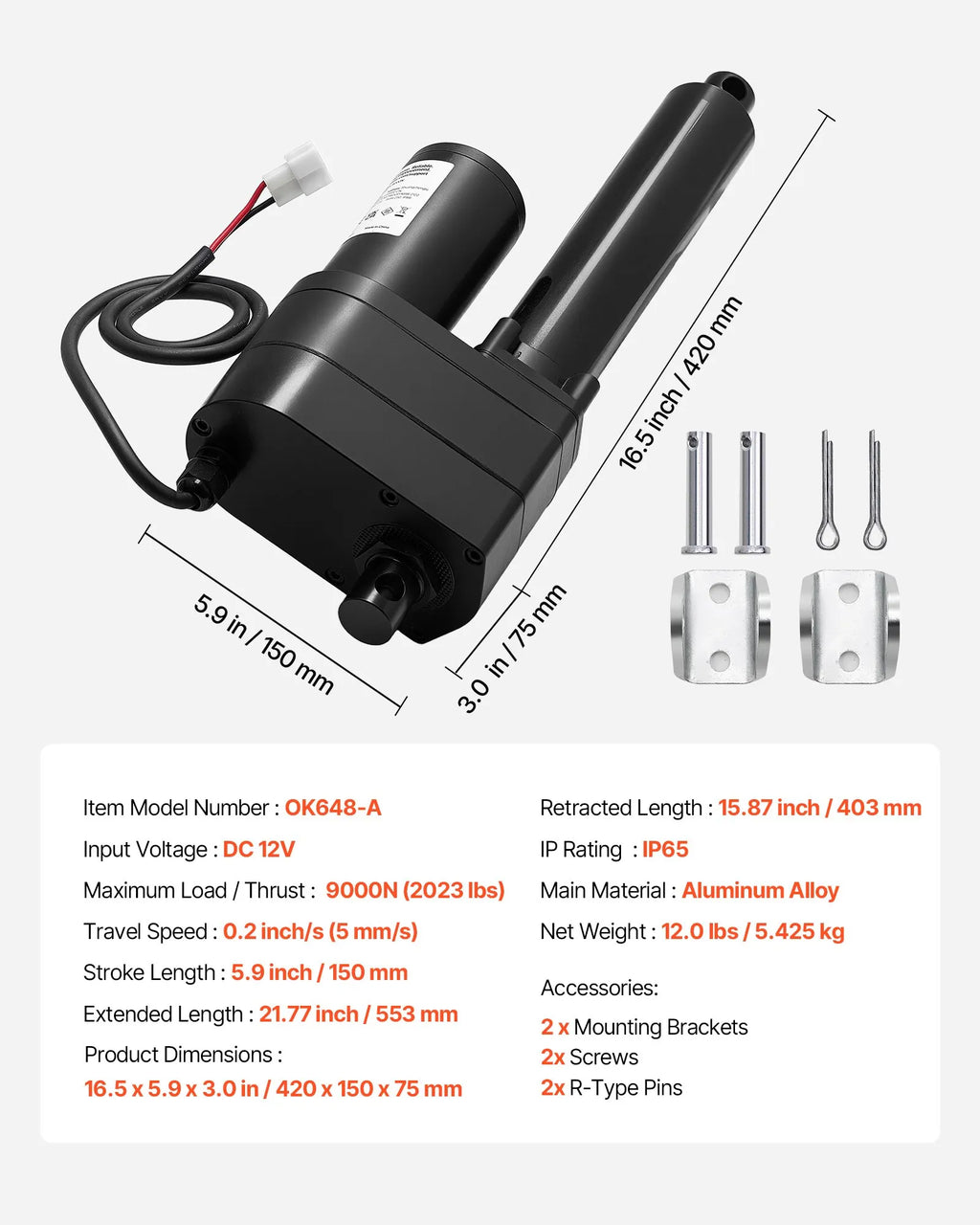

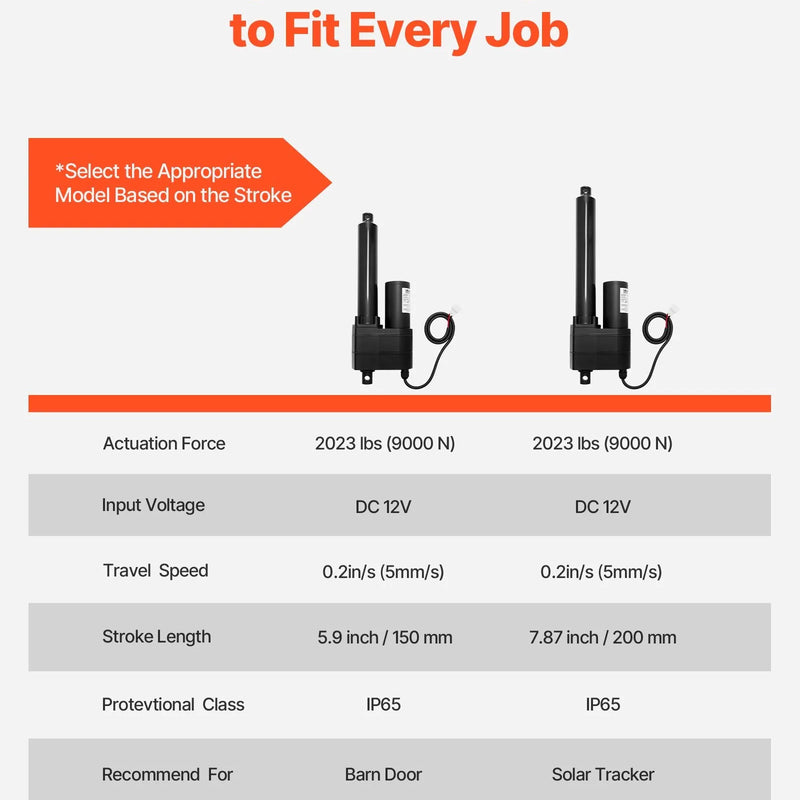

Key specifications: Movement speed: 5 mm/s; Stroke length: 15 cm; Length in extended position: 55.3 cm; Length in retracted position: 40.3 cm; Current consumption: 20 A; Input voltage: DC 12V.

Effective stroke adjustment and smooth motion control

The VEVOR heavy-duty linear actuator delivers powerful 9000 N pulling force, IP65 protection rating and smooth motion at 5 mm/s, offering reliable support and efficient operation for industrial automation, heavy lifting systems, mechanical equipment, transport systems and other applications.

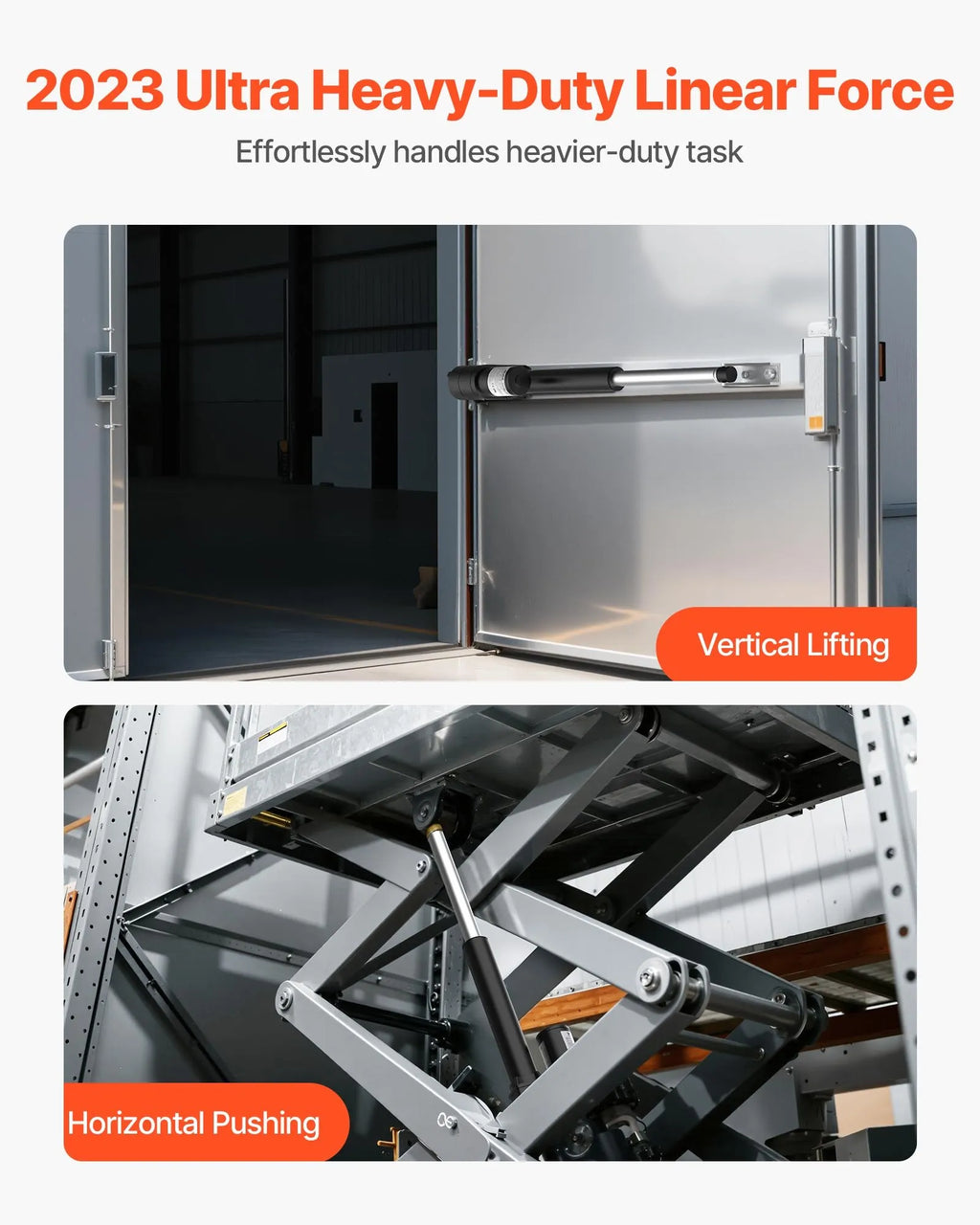

The VEVOR 12 V heavy-duty linear actuator delivers powerful 9000 N vertical lifting force and horizontal pushing power, enabling efficient and precise execution of various heavy-load tasks.

With IP65 protection rating, our 12 V linear actuator provides protection against dust and water, ensuring reliable operation both indoors and outdoors. (Note: prolonged exposure to outdoor conditions is not recommended for extended service life.)

For optimal performance, we recommend using the linear actuator together with a controller, which provides more precise motion control. The package includes only the push rod; additional equipment required for installation must be purchased separately.

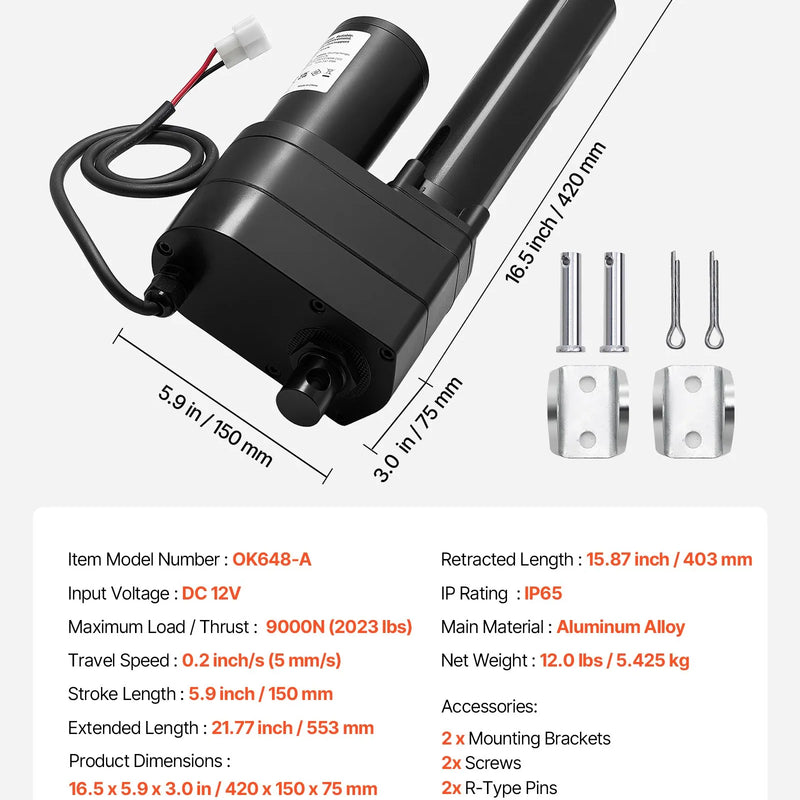

Product dimensions are clearly specified for convenient selection and suitability. Stroke length: 15 cm; Length in extended position: 55.3 cm; Length in retracted position: 40.3 cm.

917.6 kg / 9000 N pulling force for industrial lifting and automation systems

With powerful pulling force up to 9000 N, this heavy-duty 12 V linear actuator handles large loads with ease. It provides great pushing, lifting and moving of large components in automation systems, platforms and mechanisms. Even during prolonged operation, the actuator maintains stable motion in demanding industrial environments.

In various industries, this actuator is used in systems where reliable and smooth motion is required. It operates effectively in mechanical systems, factories and warehouses where heavy components need to be moved in a controlled manner. The large pulling force improves system safety and productivity whilst reducing strain on other parts of the mechanism.

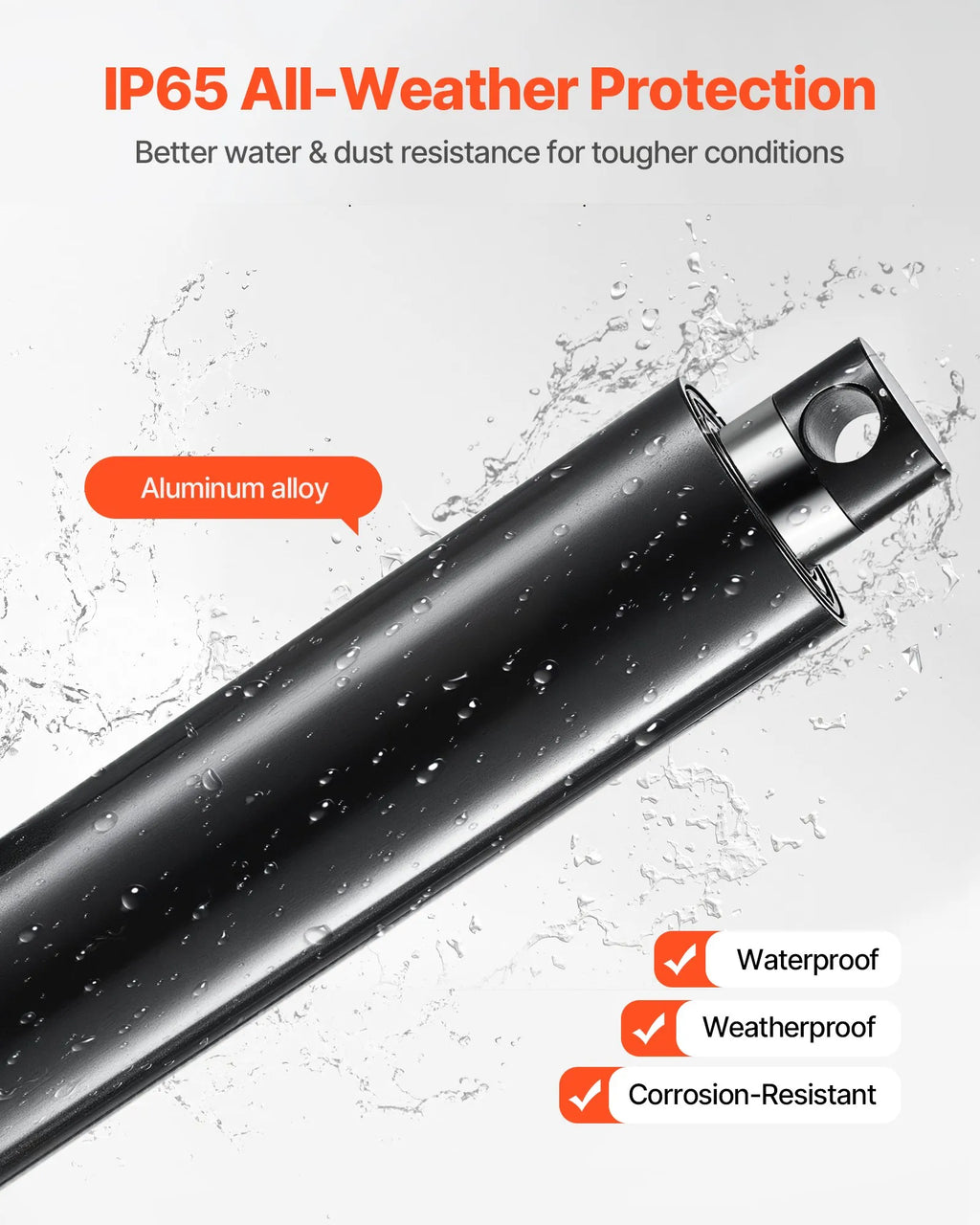

IP65 water and dust protection for reliable operation indoors and outdoors

The IP65 protection rating housing of this actuator protects internal components from dust and moisture. The hermetic construction helps prevent dirt, rain and fine particles from entering, which could affect operation. Using this system in open areas, workshops or industrial sites, you don't need to worry about damage from water, dust or weather conditions.

This protection extends the service life of the actuator both indoors and outdoors. It operates reliably in wet, dusty and complex working environments. By keeping internal components dry and clean, the actuator reduces maintenance requirements and improves long-term system reliability.

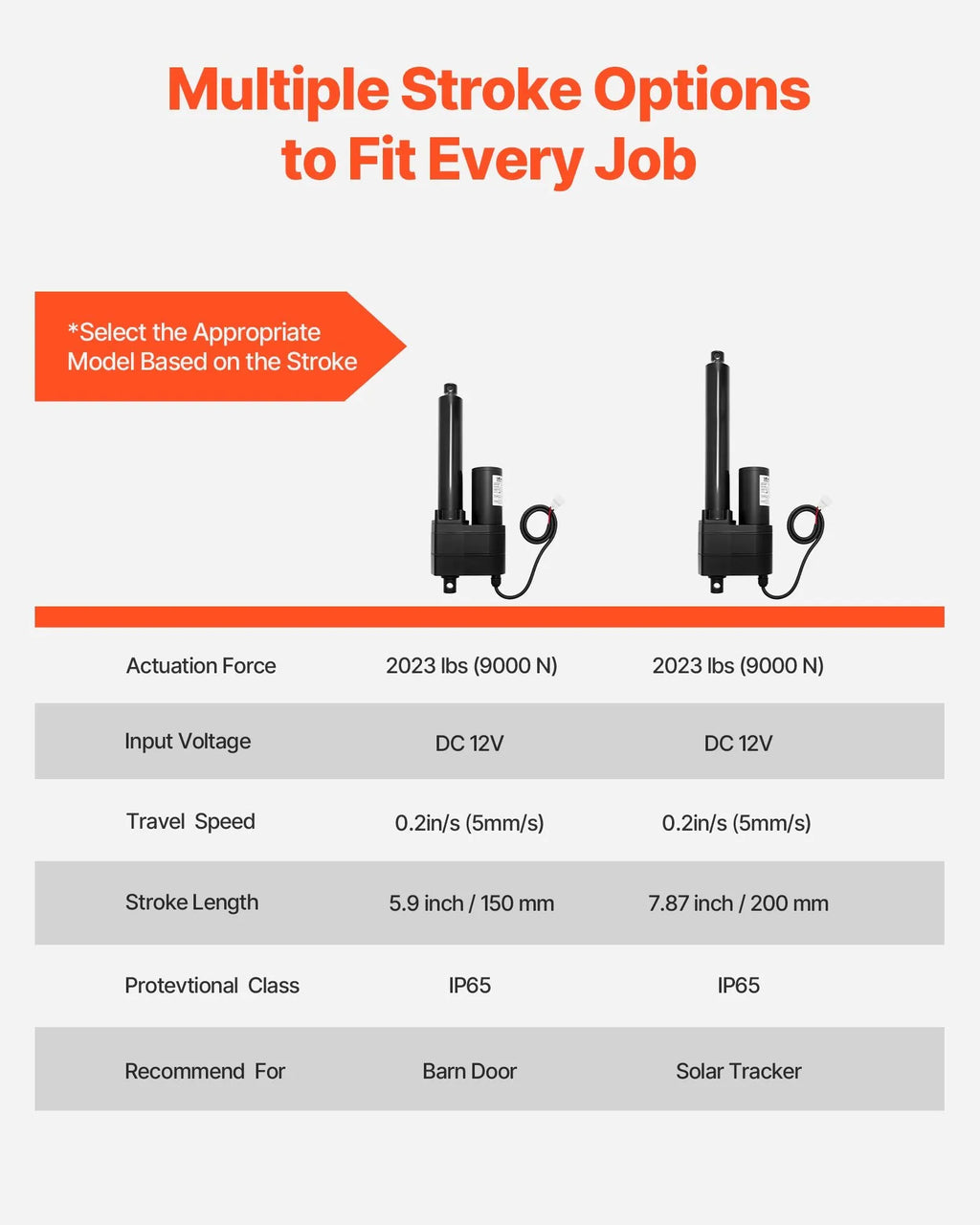

15 cm stroke for precise linear motion under heavy loads

This heavy-duty 12 V linear actuator with 15 cm stroke allows components to be moved along a precise and controlled trajectory. It provides the ability to push, pull or lift large components with a precise range of motion. This feature improves accuracy when moving or positioning heavy components in mechanisms and systems.

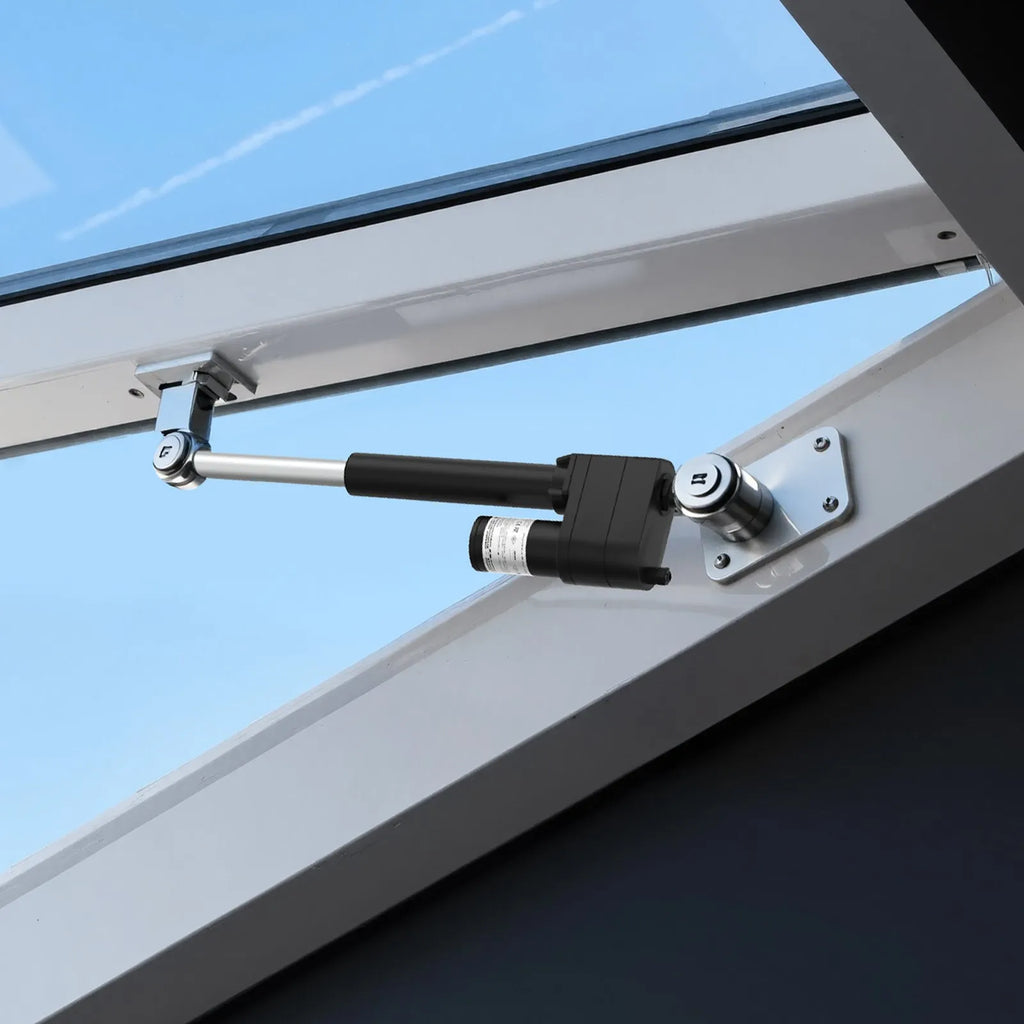

This level of motion control is suitable for a wide range of mechanical and automation tasks. The actuator is used for platform movement, door lifting and mechanism adjustment. The smooth range of motion helps prevent sudden movements and maintains stable operation.

5 mm/s movement speed for smooth and controlled heavy-load motion

The actuator provides smooth motion at 5 mm/s. This speed helps avoid sudden movements that could damage equipment or create safety risks. During lifting and pushing, the smooth speed helps maintain balance under heavy loads.

Smooth motion helps protect attached components from excessive stress and wear. This is particularly important in systems where safety and precision are a priority. Balanced movement speed helps mechanisms operate more efficiently and extends their service life.

Durable aluminium alloy construction for greater durability and corrosion protection

The actuator housing is made from durable aluminium alloy, providing long-lasting and safe construction. The material is resistant to rust, corrosion and everyday wear. This allows the actuator to operate reliably in complex conditions with high humidity and dust.

The durable construction is suitable for long-term use in outdoor systems, warehouses and factories. The stable housing helps protect internal components during intensive operation. This design improves system reliability and reduces the need for repairs.

12 V DC power supply with 20 A current consumption for stable and efficient operation

This heavy-duty 12 V linear actuator operates on 12 V DC power supply, making it easy to integrate into various systems. It consumes up to 20 A current, providing powerful and stable operation. This configuration helps maintain smooth motion in lifting and pushing tasks.

The actuator can be easily connected to vehicles, mechanisms or control systems without complex electrical installation. The power supply system improves efficiency and reduces energy losses. This makes the actuator suitable for both stationary and mobile systems where reliable operation is required.

Length in extended and retracted positions for flexible installation

The actuator length in extended position is 55.3 cm and in retracted position is 40.3 cm. These dimensions provide flexible installation options in various systems. The actuator can be installed in both confined spaces and larger mechanism structures.

This flexibility helps technicians and engineers create more efficient mechanisms. Depending on the required motion and available space, it is possible to adjust the mounting position. The wide range of dimensions makes the actuator suitable for various industrial and mechanical applications.

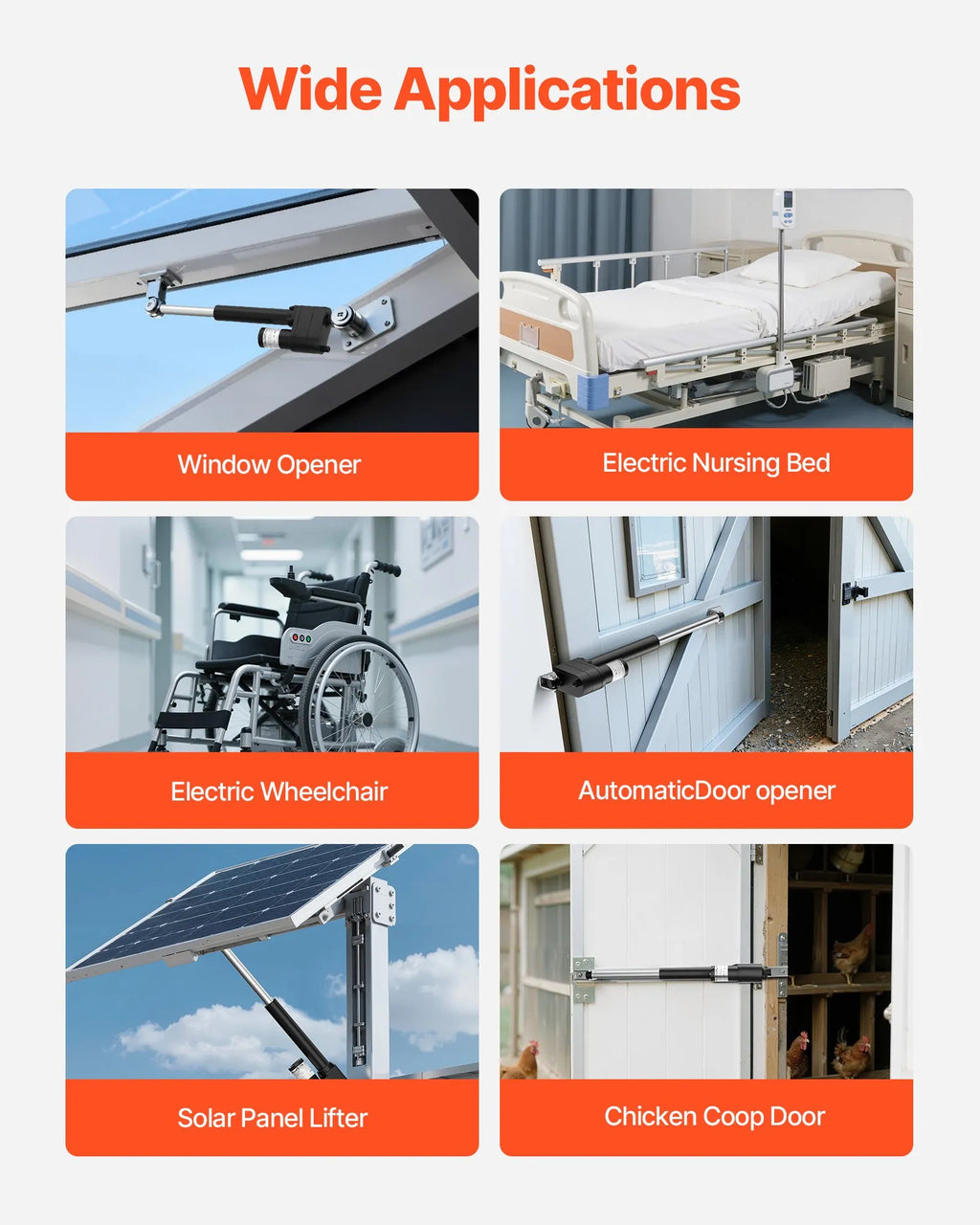

Versatile heavy-duty 12 V linear actuator for industrial equipment, ships and robotic systems

This actuator is suitable for various applications, including industrial equipment, ships and heavy robotic systems. The powerful pulling force and smooth motion help ensure efficient lifting and automation. It works excellently in systems where high precision and power are required.

This heavy-duty 12 V linear actuator is suitable for mechanical arms, lifting platforms, transport systems and barn doors. Thanks to its versatile design, it adapts to various industries and working conditions, improving system efficiency and performance in various projects.
