Description
Features and Details
Excellent Performance
This powerful 1100 W magnetic drill operates at 580 rpm, providing drilling depths up to 50 mm and a maximum hole diameter of 40 mm. With its 10 A powerful motor, the drill easily handles industrial-grade steel drilling.
Quality Core Drills and Standard Drill Bit
The magnetic drill works best with the included drill bits, which provide the most frequently needed sizes.

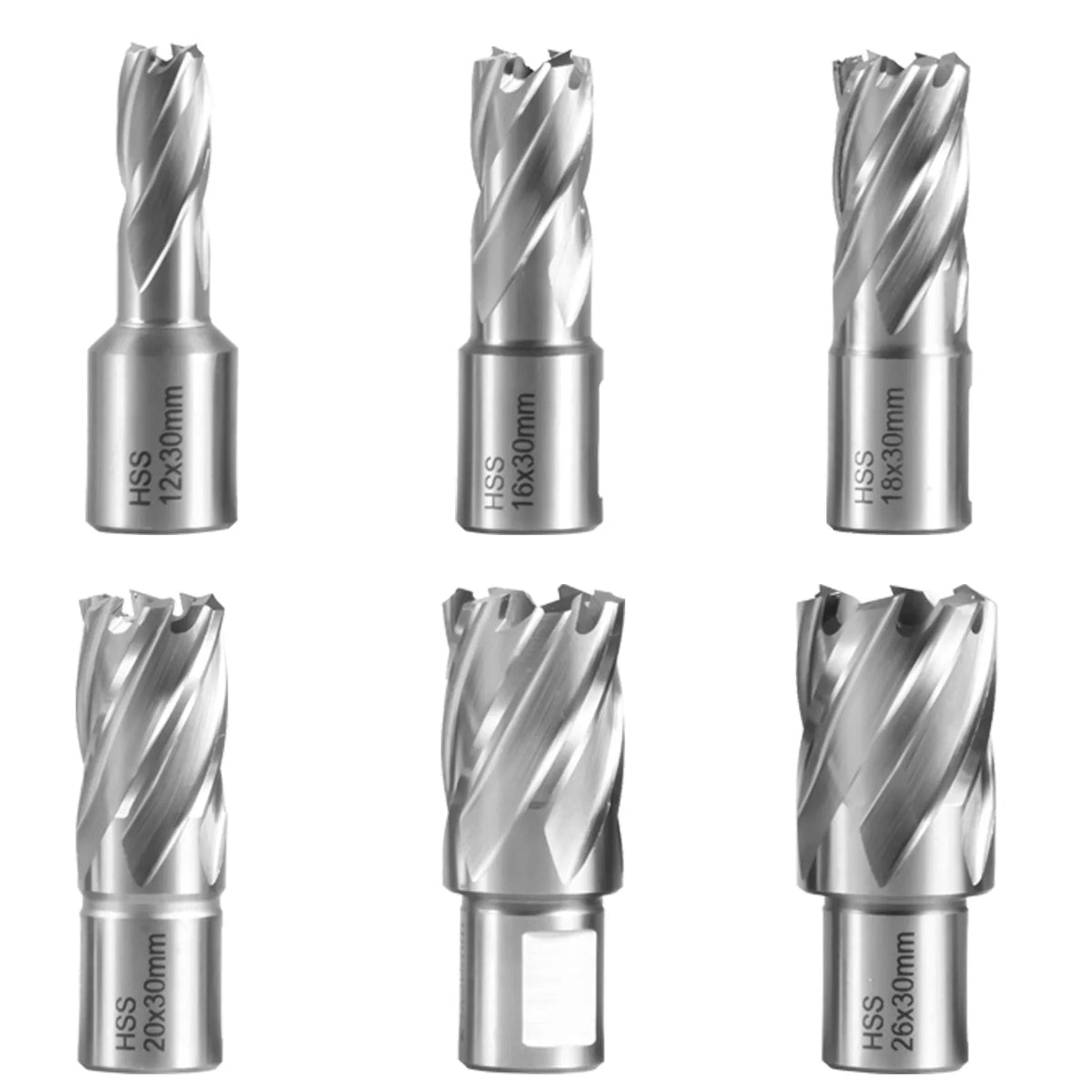

6 core drills: 12 mm, 16 mm, 18 mm, 20 mm, 24 mm, 26 mm
Standard drill bit: 10 mm
12 000 N Magnetic Force
The electromagnetic base is made from nearly pure cast iron, providing excellent durability and stability. Its 12000 N (2697 lbf) magnetic holding power allows precise positioning of the drill and high-precision drilling.
Cooling System and User-Friendly Design
The ergonomic handle provides comfortable grip during transport. Three extended crank handles make the drilling process easier. The cooling reservoir helps quickly dissipate heat. The transparent control panel ensures convenient visibility and simple operation.
Wide Range of Applications

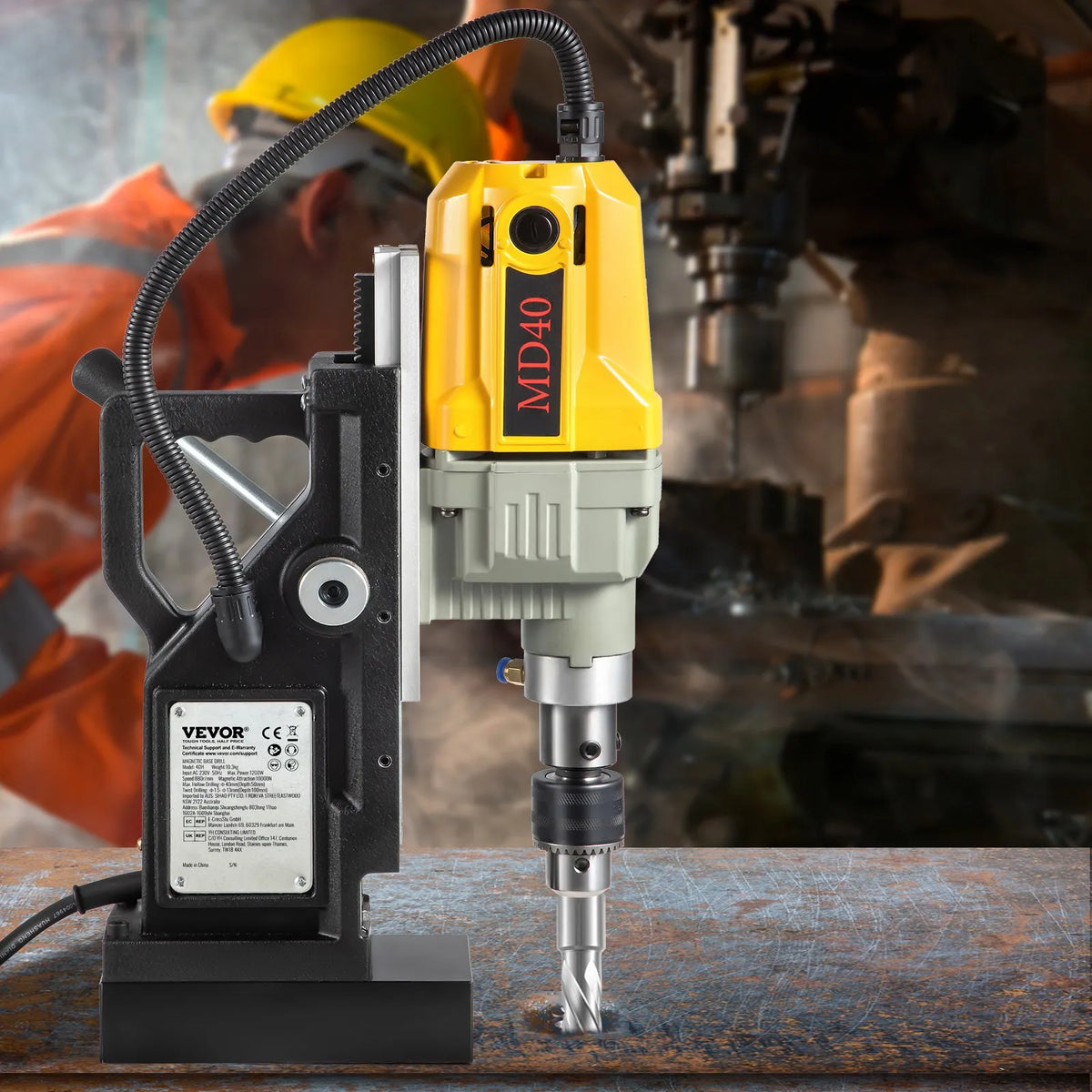

The versatile magnetic drill enables drilling on almost any metal surface. It is ideal for shipbuilding and bridge construction, industrial applications and steel structure fabrication, wind turbine and power station construction, railway manufacturing, equipment installation and many other fields.

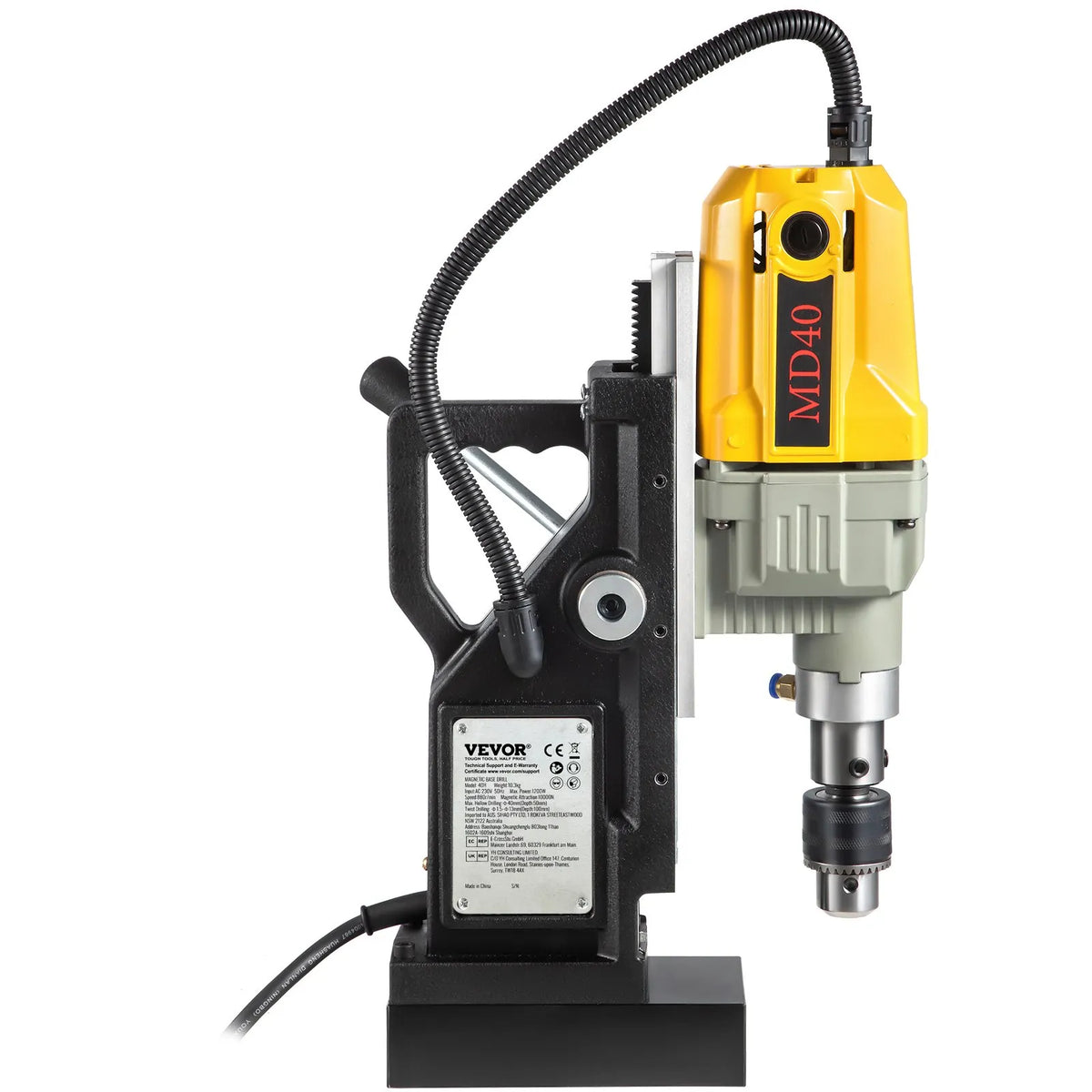

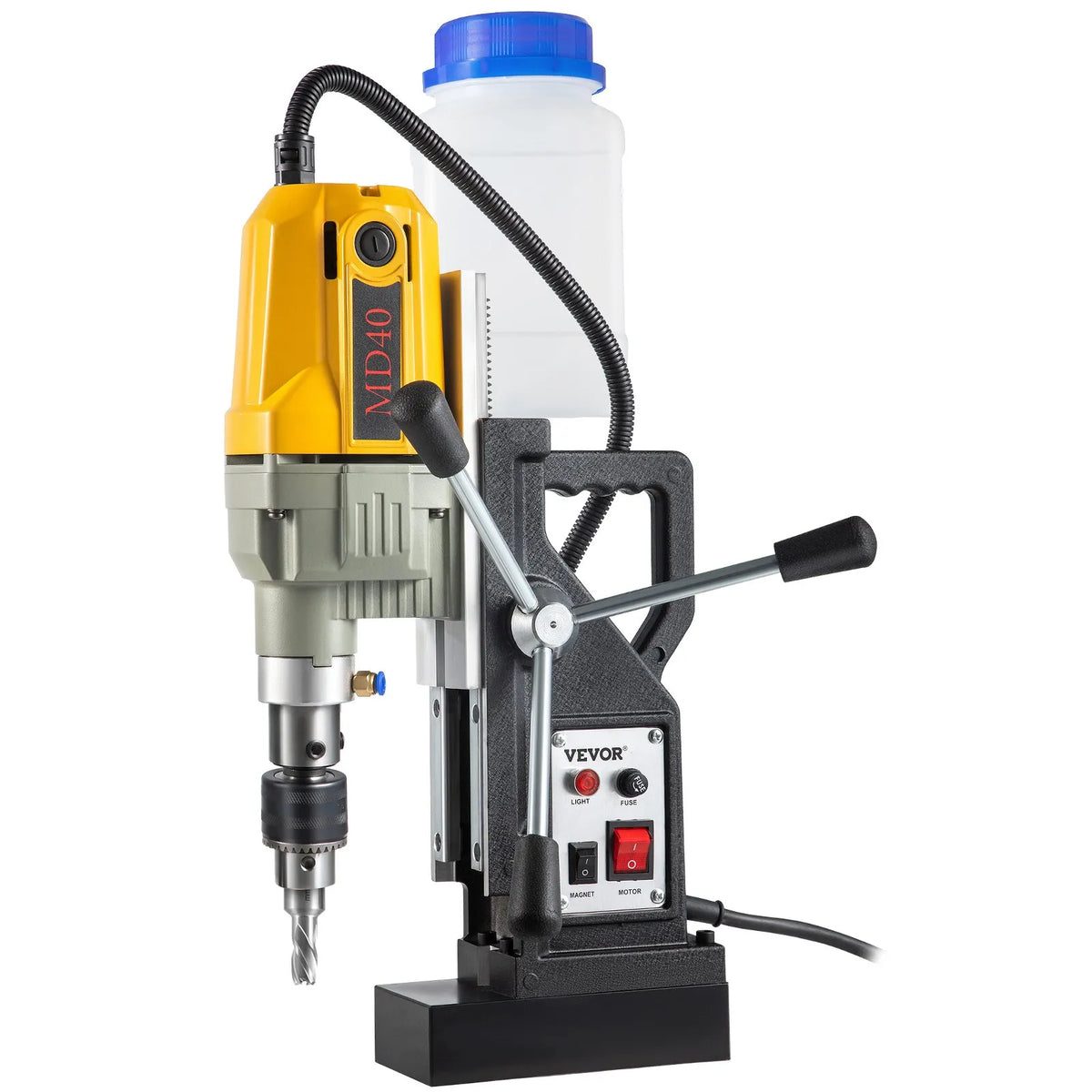

Electric Magnetic Drill
580 rpm • 1100 W • 125 mm stroke
The portable drill works best with the precision drill bits included in the package. It can drill even the most durable materials, creating holes up to 40 mm in diameter to depths of 55 mm. Thanks to its 1100 W copper motor, the drill delivers tremendous power without compromising long-term stable performance. The large cooling reservoir prevents overheating and extends the drill's service life. Its 12000 N magnetic holding power allows safe drilling in various directions. Take the power into your hands and drill any material with confidence – precision is guaranteed.
Excellent Performance
Quality Core Drills and Standard Drill Bit
12 000 N Magnetic Force
Cooling System and User-Friendly Design
VEVOR is a leading brand specialising in equipment and tool manufacturing. With thousands of motivated employees, VEVOR provides durable tools at exceptionally low prices. Currently, VEVOR is represented in more than 200 countries with more than 10 million users worldwide.
Why Choose VEVOR?
• Durable and tested quality
• Exceptionally low prices
• Fast and secure delivery
• 30-day free returns
Excellent PerformanceThis magnetic base drill is designed for precise and intensive core drilling, delivering 1100 W motor power. Maximum core hole diameter: 40 mm; maximum stroke: 125 mm.
Seven Practical Drill BitsThe included core drills allow processing workpieces of various sizes, providing faster and more efficient drilling than standard drill bits.
12000 N Holding ForceThe nearly pure cast iron base functions as a powerful electromagnet with 12000 N (2697 lbf) holding force, securely fastening the magnetic drill during operation and preventing movement during the drilling process.

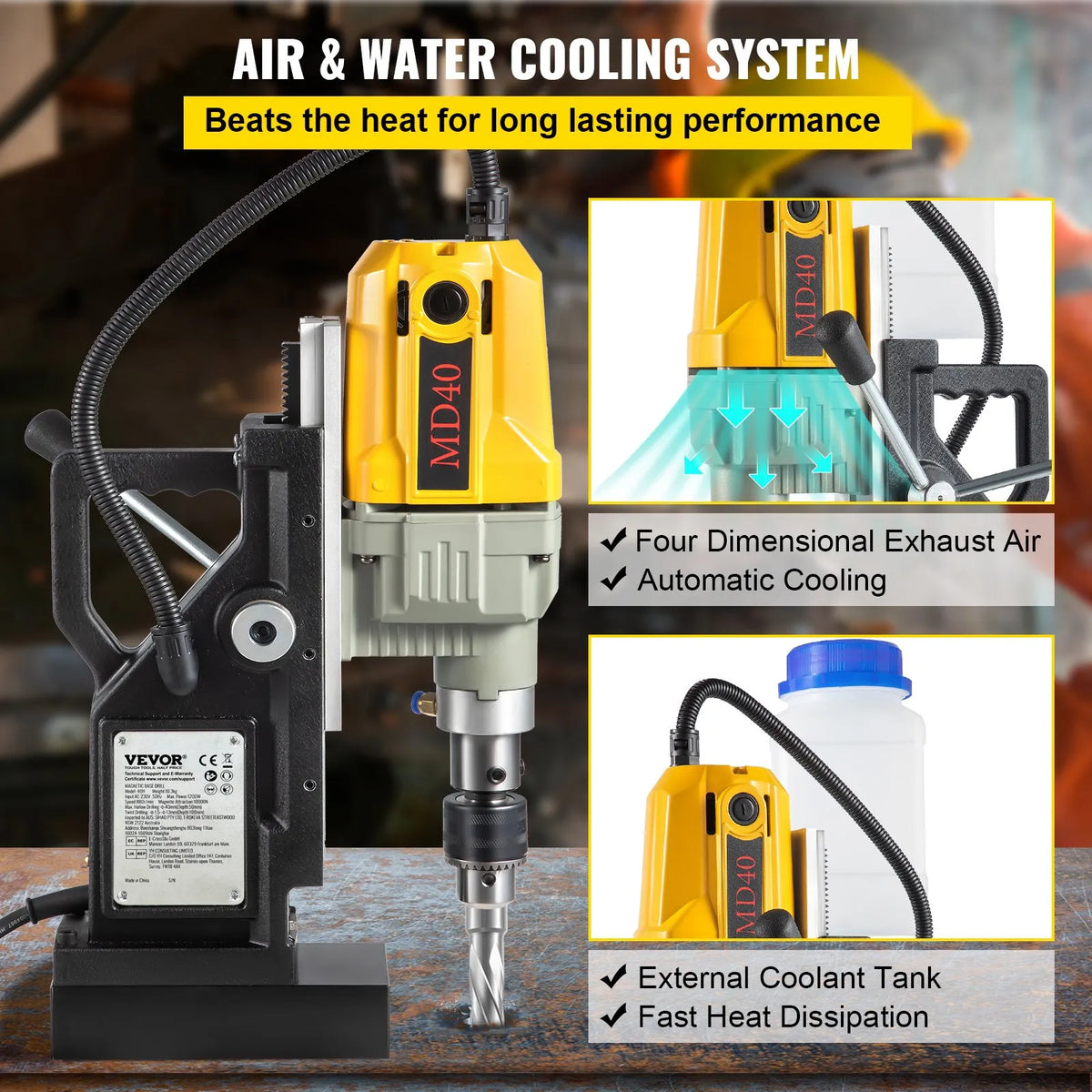

Effective Cooling System
The portable drill is equipped with a removable, integrated cooling system that significantly extends the service life of drill bits and cutters. Additionally, dust-protected air inlet and outlet openings ensure effective temperature reduction during operation.

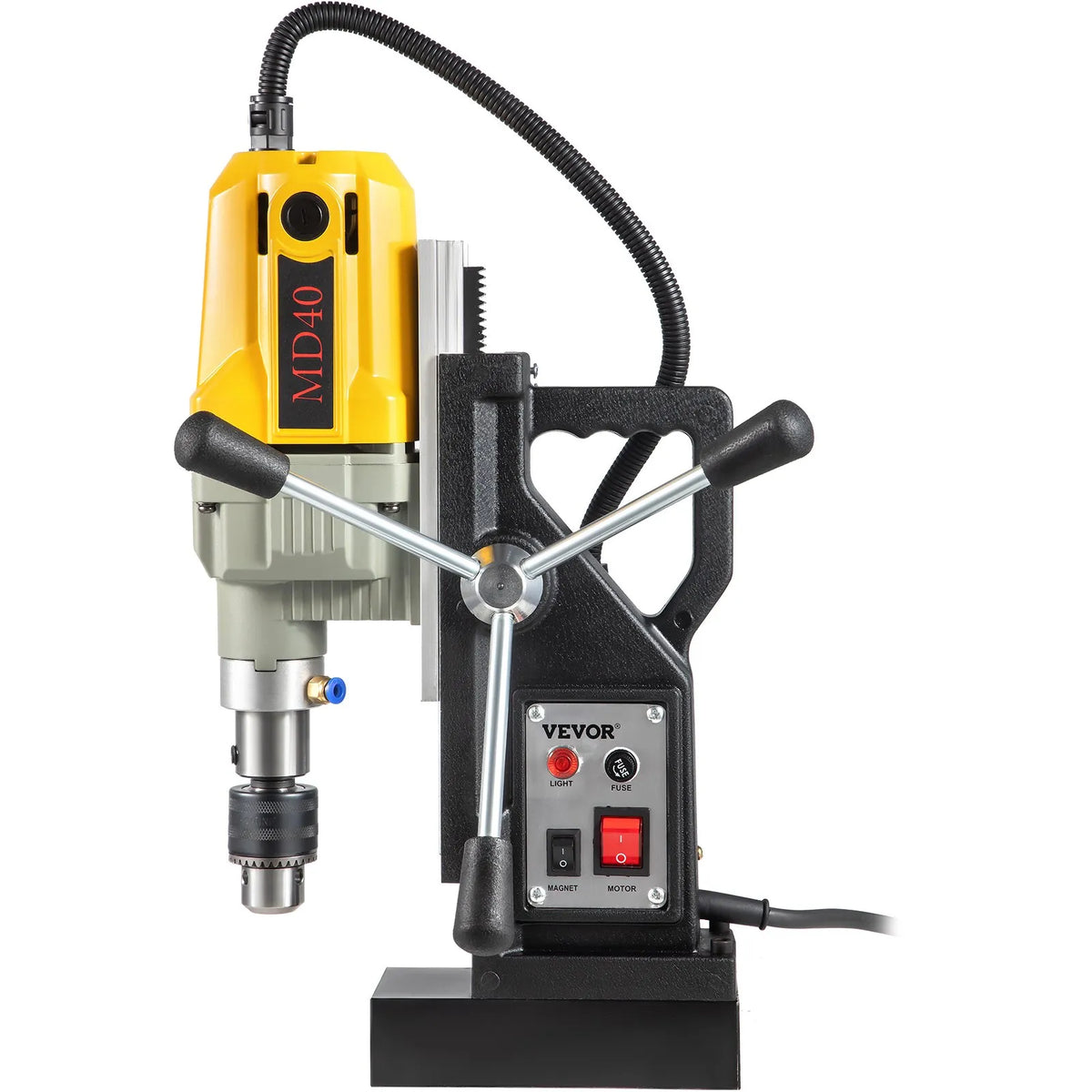

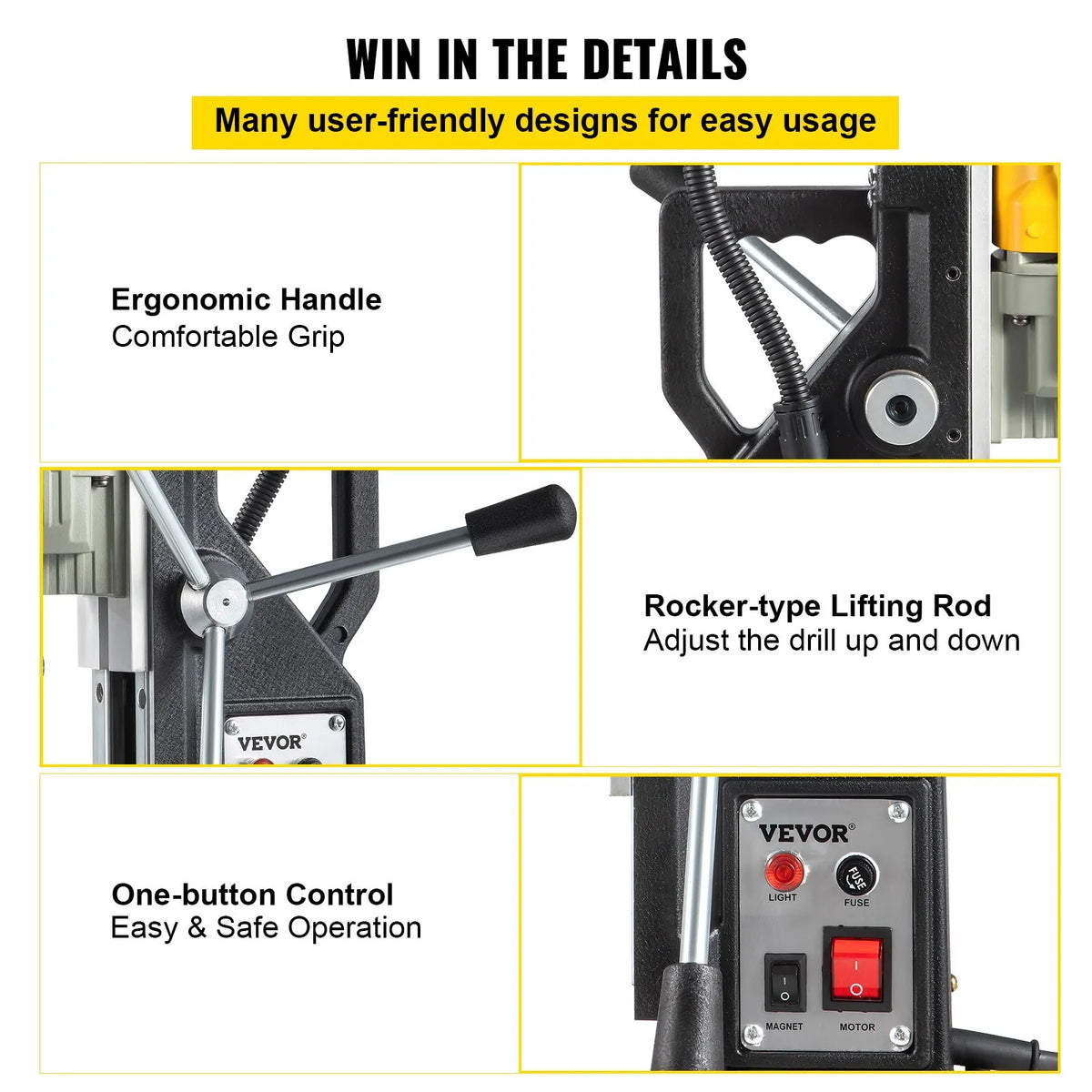

Optimal DesignThree extended crank handles allow easy adjustment of the drill's up and down movement without requiring much effort. Ergonomic handles provide comfortable transport. The simple control panel allows easy and intuitive operation of the device.
Versatile UseOur magnetic drill is suitable for steel structures, shipbuilding, bridge construction, wind energy equipment, drilling work, electrical grid installation and many other applications.
Specification
Model: VV-MD-UK7
Power: 1100 W, 50/60 Hz, 220 V, 5 A
Max. hole diameter (core drills): 40 mm
Max. hole diameter (spiral drills): 16 mm
Max. stroke: 125 mm
Rotation speed: 580 rpm
Magnetic attraction force: 12 000 N
Magnetic base size: 166 × 80 × 50 mm
Max. drilling depth: 55 mm

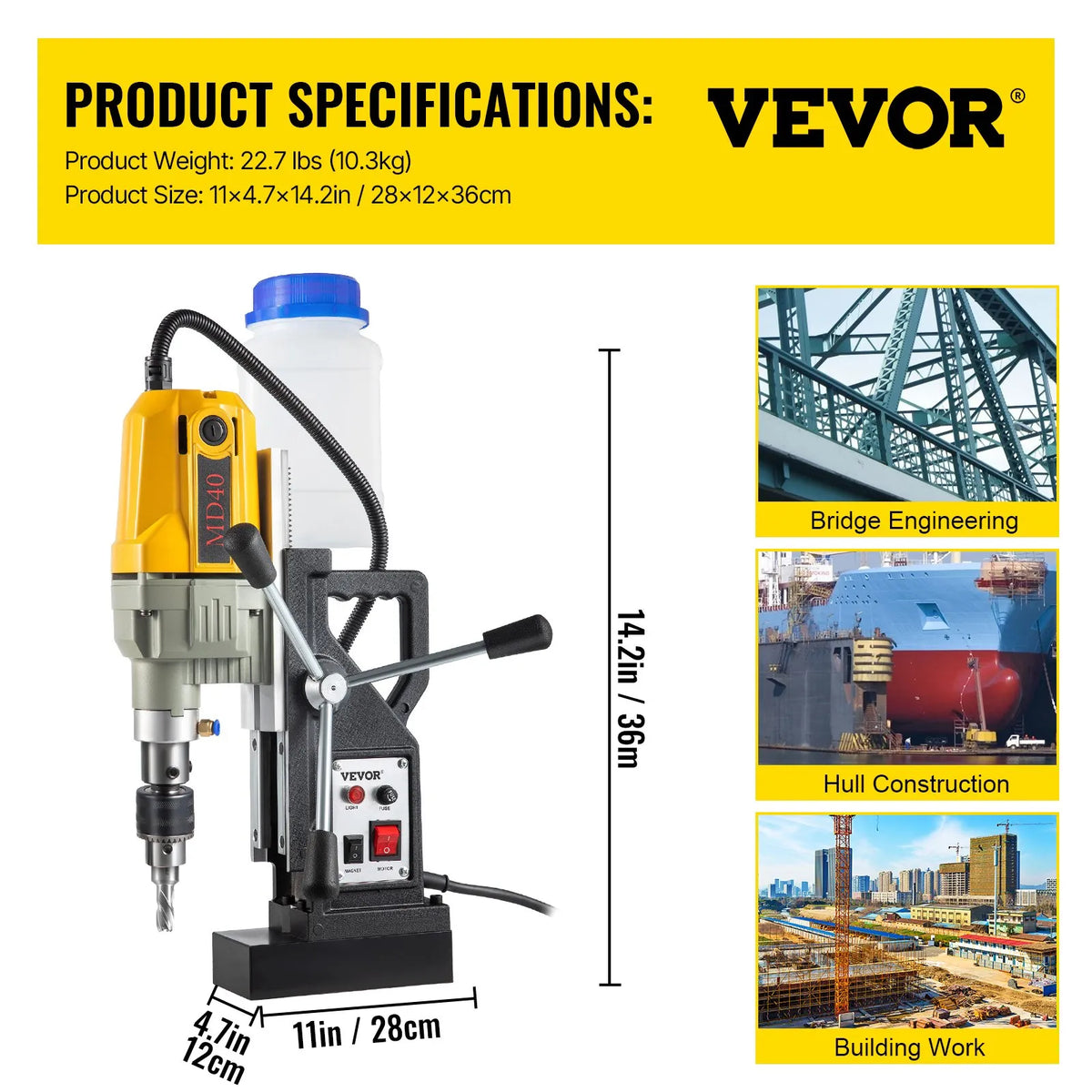

Product size: 36 × 28 × 12 cm
Product weight: 11 kg

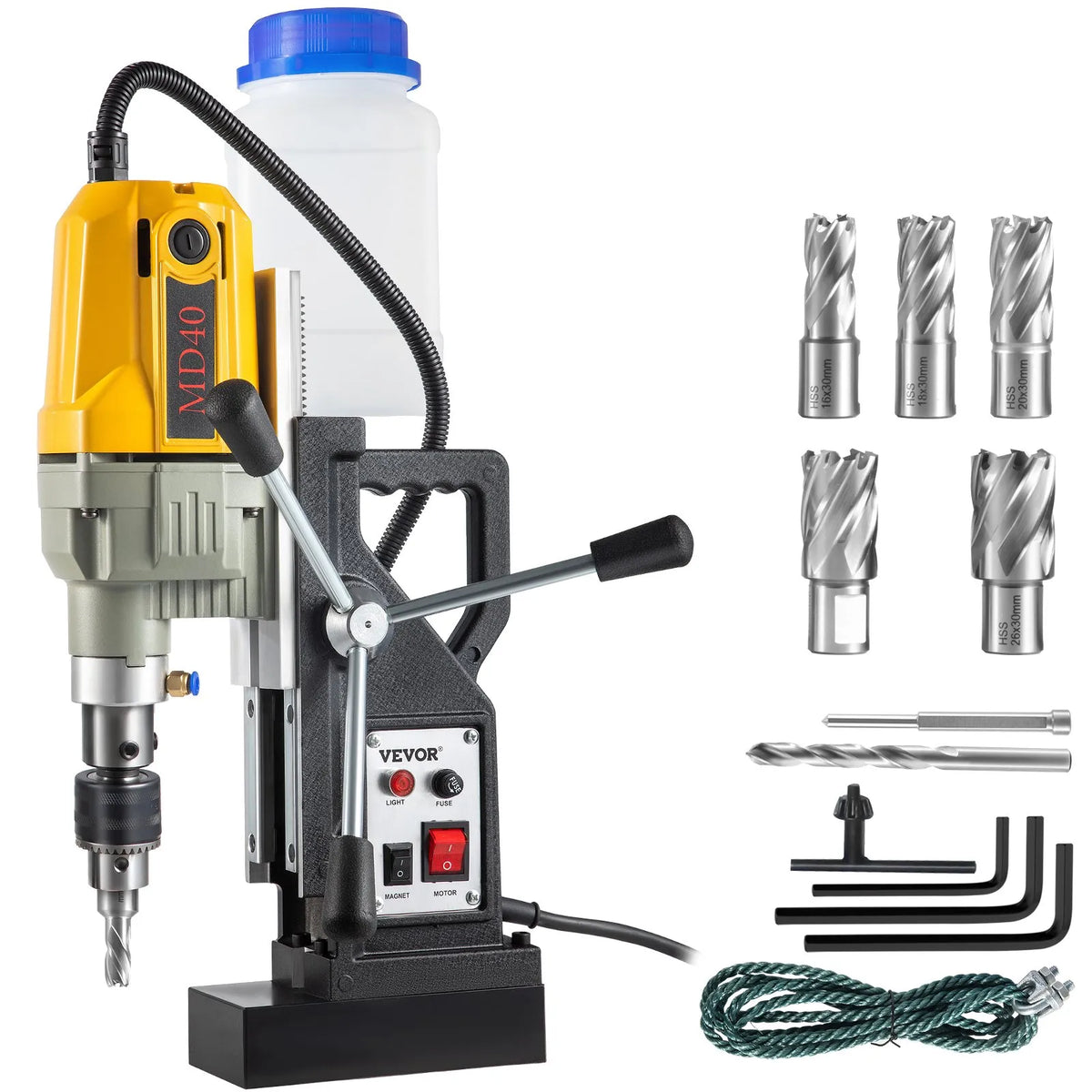

Package Contents
-
6 × core drills (Ø12 mm, Ø16 mm, Ø18 mm, Ø20 mm, Ø24 mm, Ø26 mm)
-
1 × spiral drill (Ø10 mm)
-
1 × cooling reservoir
-
1 × chuck
-
1 × centering pin (6.34 × 102 mm)
-
1 × safety rope
-
1 × user manual
