4 MP high-resolution image

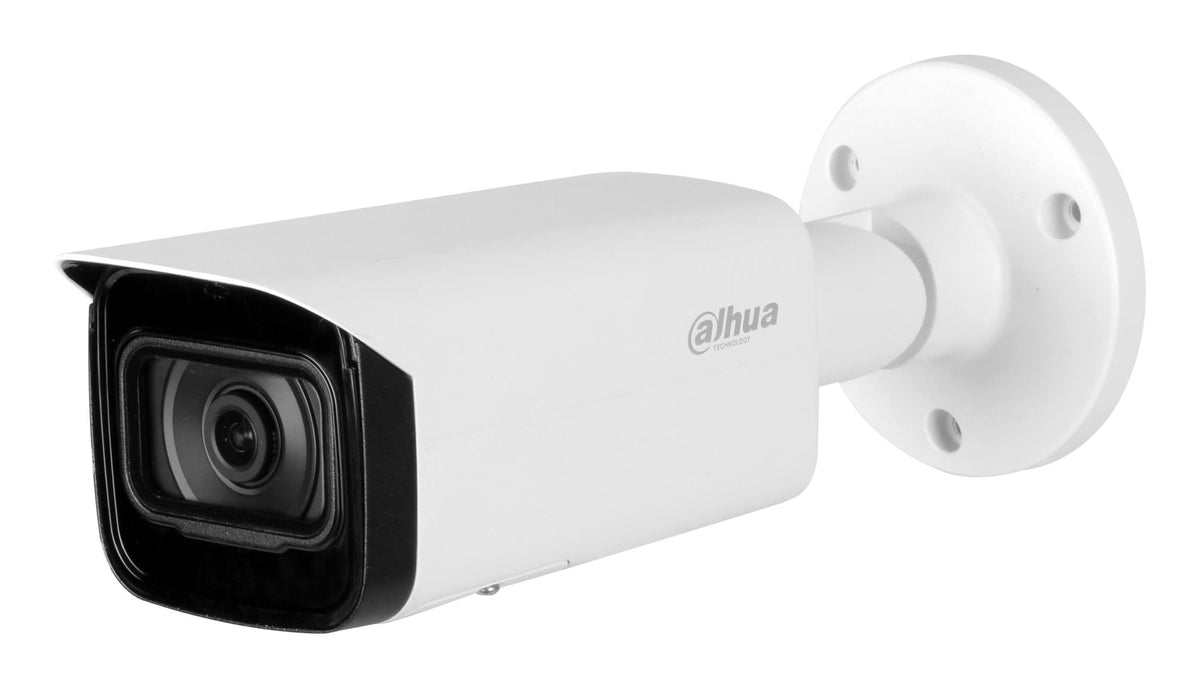

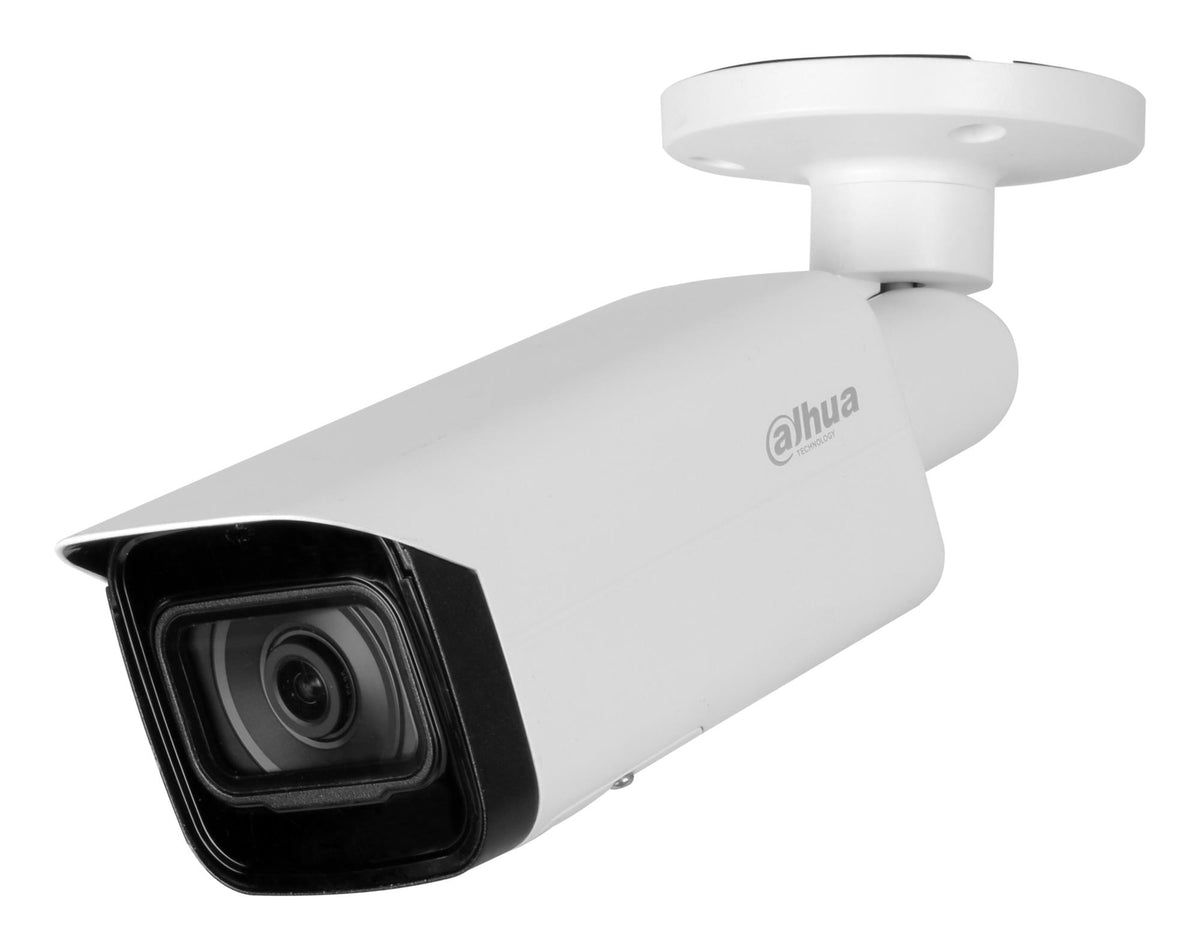

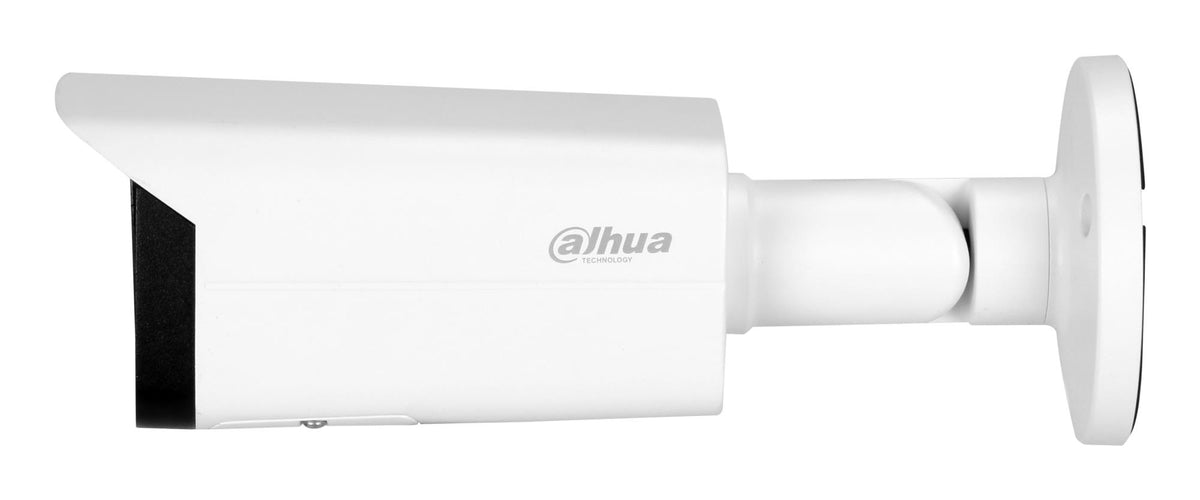

Dahua WizMind IPC-HFW5442T-ASE-0280B-S3 is a professional 4 MP bullet camera with a 1/1.8″ CMOS sensor. It provides up to 2688 × 1520 pixel resolution and up to 60 frames per second, ensuring detailed and smooth images for security monitoring.
Wide viewing angle
The fixed 2.8 mm lens provides 112° horizontal, 58° vertical and 139° diagonal viewing angles. The camera's pan range is 0–360°, and tilt range is 0–90°, allowing precise adjustment of the monitoring direction.
IR night vision
Integrated infrared LEDs provide night vision up to 80 m. This allows the camera to maintain monitoring capabilities even in complete darkness.
140 dB WDR
140 dB WDR technology helps preserve detailed images in situations with very large differences between bright and dark areas of the image. The camera also supports BLC, HLC and 3D noise reduction.
Smart video analytics
Deep learning algorithms provide video metadata processing, smart object detection, face detection, people counting, smart sound detection and IVS functions. People and vehicle classification helps identify critical objects more accurately.
Efficient video compression
The camera supports H.264, H.264B, H.264H, H.265 and M-JPEG video compression. ROI, SVC and advanced H.264+/H.265+ encoding functions help reduce network load and storage space required for video recordings.
Built-in microphone
The built-in microphone provides sound capture in the monitoring area. The camera supports multiple audio formats, including G.711, G.723, G.726 and PCM.
Local recording storage
The integrated microSD memory card reader supports cards up to 1 TB, allowing video recordings to be saved locally. The camera also supports NAS network storage.
PoE power supply
The camera supports 12 V DC and PoE power supply, including IEEE 802.3af standard. This allows data transmission and power supply to be provided using a single network cable.
Durable housing
The metal bullet housing complies with IP67 protection class and IK10 impact resistance class. The camera is designed for installation with a pole clamp and is suitable for use in challenging outdoor conditions.
Specifications
Model: IPC-HFW5442T-ASE-0280B-S3
Camera type: IP security camera
Camera shape: bullet
Connection technology: wired
Application: indoor
Installation method: pole clamp
Housing material: metal
Housing colour: white
Sensor type: CMOS
Sensor size: 1/1.8″
Resolution: 4 MP
Maximum resolution: 2688 × 1520 pixels
Lens focal length: 2.8 mm
Lens type: fixed
Minimum illumination: 0.0004 lx
Horizontal viewing angle: 112°
Vertical viewing angle: 58°
Diagonal viewing angle: 139°
Pan range: 0–360°
Tilt range: 0–90°
Night vision: yes
Illumination type: IR
Night vision distance: 80 m
WDR: 140 dB
BLC: yes
HLC: yes
3D noise reduction: yes
ROI encoding: yes
Video stabilisation: yes
Frame rate: 60 frames/s
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video recording: yes
Video streaming: yes
Built-in microphone: yes
Audio formats: G.711 μ-law/G.711 A-law/G.723/G.726/PCM
Ethernet LAN: yes
Ethernet port: 1 × RJ-45
Wi-Fi: no
Bluetooth: no
Network standards: IEEE 802.1x/IEEE 802.3af
Memory card reader: yes
Supported memory cards: microSD
Maximum memory card capacity: 1 TB
NAS support: yes
Built-in hard drive: no
People and vehicle classification: yes
Face detection: yes
People counting: yes
Video motion detection: yes
Smart sound detection: yes
IVS: yes
Alarm inputs: 1
Alarm outputs: 1
Power source: 12 V DC, PoE
Maximum power consumption: 8.3 W
Typical power consumption: 4.1 W
Protection class: IP67
Impact resistance class: IK10
Operating temperature: -40 to 60 °C
Storage temperature: -40 to 60 °C
Storage relative humidity: 10–95%
Width: 79 mm
Length: 244.1 mm
Height: 75.9 mm
Weight: 820 g
RAM capacity: 1 GB
ROM capacity: 4 GB
Number of cameras: 1
