6 MP high-resolution image

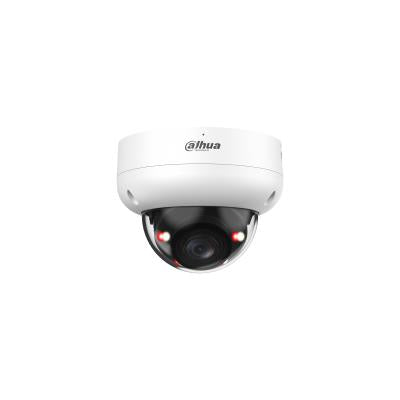

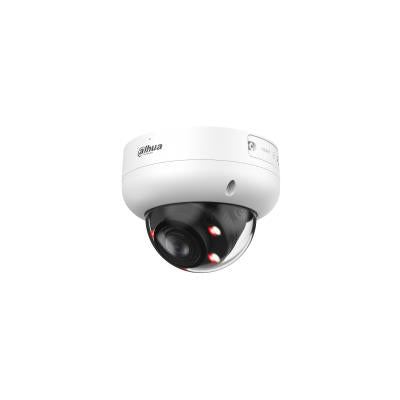

Dahua IPC-HDBW3649R-ZAS-IL-27135 is a professional WizSense series dome IP camera with a 1/2.7" CMOS sensor and 3288 × 1850 pixel resolution. It delivers up to 25/30 frames per second and is designed for high-quality day and night security monitoring.
2.7–13.5 mm varifocal lens
The camera is equipped with an adjustable 2.7–13.5 mm lens that provides approximately 114°–32° horizontal field of view. This allows you to adjust the coverage area depending on the installation location and monitoring distance.
Smart Dual Light illumination
The camera features integrated multi-segment IR and warm white light illumination. Both IR and warm light provide an operating range of up to 50 m, enabling high-quality images even in complete darkness.
AI human and vehicle classification
Dahua WizSense Deep Learning technology focuses on detecting and classifying humans and vehicles, helping reduce false alarms and improve security monitoring analytics.
SMD 4.0
Smart Motion Detection 4.0 provides more accurate detection of human and vehicle movement, filtering out irrelevant moving objects.
Smart perimeter protection
The camera supports intrusion and line crossing detection with human and vehicle classification, as well as loitering detection.
Face detection
Face detection is supported across the entire image area, providing additional capabilities for person analysis and security system automation.
WDR and image enhancement
WDR, 3D NR, HLC, BLC and other image processing solutions help preserve details in complex lighting conditions, including backlit scenes.
H.265+ video compression
The camera supports H.265, H.264, Smart H.265+ and Smart H.264+, reducing video bitrate and required storage space for recordings.
Audio and alarm functions
The camera features a built-in microphone, one audio input, one audio output, as well as one alarm input and one alarm output.
Local recording
microSD slot supports memory cards up to 512 GB, allowing video recordings to be saved directly on the camera.
PoE power supply
The camera supports 12 V DC and PoE power supply, allowing power and data transmission via a single Ethernet cable.
IP67 and IK10 protection
IP67 protection provides resistance to dust and water, while IK10 protection offers high mechanical impact resistance. The camera is suitable for use in demanding outdoor conditions.
Specifications
-
Model: IPC-HDBW3649R-ZAS-IL-27135
-
Manufacturer: Dahua
-
Series: WizSense 3 Series
-
Camera type: IP camera
-
Camera form: Dome
-
Application: indoor / outdoor
-
Sensor: 1/2.7" CMOS
-
Resolution: 6 MP
-
Max. resolution: 3288 × 1850 px
-
Frame rate: up to 25/30 fps
-
Lens: varifocal
-
Focal distance: 2.7–13.5 mm
-
Horizontal field of view: 114°–32°
-
Min. illumination: 0.005 lux colour mode / 0.0005 lux B/W
-
IR illumination: up to 50 m
-
Warm LED illumination: up to 50 m
-
Smart Dual Light: yes
-
WDR: yes
-
3D NR: yes
-
BLC: yes
-
HLC: yes
-
SMD: SMD 4.0
-
AI SSA: yes
-
Human classification: yes
-
Vehicle classification: yes
-
Intrusion detection: yes
-
Line crossing: yes
-
Loitering detection: yes
-
Loitering detection: yes
-
Face detection: yes
-
Video compression: H.265 / H.264
-
Smart Codec: Smart H.265+ / Smart H.264+
-
ROI: yes
-
Built-in microphone: yes
-
Audio input: 1
-
Audio output: 1
-
Alarm input: 1
-
Alarm output: 1
-
microSD: up to 512 GB
-
Network connection: 1 × RJ-45
-
PoE: yes
-
Power supply: 12 V DC / PoE
-
Electronic shutter: 1/3–1/100 000 s
-
Pan: 0–355°
-
Tilt: 0–80°
-
Rotation: 0–355°
-
Protection class: IP67
-
Impact resistance: IK10
-
Housing colour: white
-
Dimensions: 94 × Ø122 mm
-
Weight: approximately 0.56 kg
-
Max. power consumption: approximately 9.8 W
-
Operating temperature: approximately -30 to +60 °C
-
Wi-Fi: no
-
Application: business premises, car parks, warehouses, shops, offices, entrances, courtyards, perimeter protection and professional security monitoring systems.
