6 MP resolution

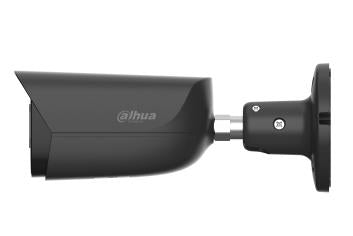

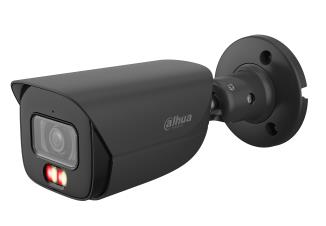

Dahua IPC-HFW3649E-AS-IL-0280B-B is a WizSense series bullet-type IP camera with a 1/2.7" CMOS sensor and maximum resolution of 3288 × 1850 pixels. The camera delivers up to 25/30 frames/s and is designed for high-quality security monitoring both indoors and outdoors.
2.8 mm fixed lens
The camera is equipped with a 2.8 mm F1.4 fixed lens, providing approximately 110° horizontal field of view. The wide viewing angle is suitable for monitoring courtyards, entrances, car parks, warehouses and territories.
Smart Dual Light
The camera uses combined IR and warm white light illumination. IR illumination range reaches up to 40 m, while warm white light extends to 30 m. Multiple illumination modes are available to adapt night monitoring to specific situations.
WizSense AI analytics
Deep Learning technology provides human and vehicle classification, helping reduce false alarms. The camera supports SMD 4.0, IVS, AcuPick and face detection.
AcuPick
AcuPick enables quick search for people and vehicles across large volumes of video recordings, significantly facilitating the location of specific events and objects.
Smart perimeter protection
The camera supports line crossing and intrusion detection with human and vehicle classification, as well as loitering detection. This makes the camera suitable for perimeter security and territory control.
WDR 120 dB
WDR up to 120 dB helps preserve details in situations with contrasting lighting. Additional 3D NR, BLC, HLC, Defog, ROI and SSA functions enhance image quality in various conditions.
Built-in microphone
The camera features a built-in microphone, as well as audio input and output. Two-way audio streaming and audio event detection are supported.
Local recording
The integrated microSD slot supports memory cards up to 512 GB, enabling local video recording storage.
PoE power supply
The camera supports 12 V DC and PoE 802.3af power supply. PoE allows data transmission and power supply through a single Ethernet cable. Maximum power consumption in PoE mode is up to 10 W depending on enabled functions.
Durable outdoor housing
Metal bullet housing with IP67 protection provides protection against dust and water. The camera is designed for operation at temperatures from -40 to +60 °C.
Specifications
-
Model: IPC-HFW3649E-AS-IL-0280B-B
-
Manufacturer: Dahua
-
Series: WizSense 3
-
Camera type: IP camera
-
Camera form: Bullet
-
Application: indoors and outdoors
-
Housing colour: black
-
Sensor: 1/2.7" CMOS
-
Resolution: 6 MP
-
Max. resolution: 3288 × 1850 px
-
Max. frame rate: 25/30 frames/s
-
Lens: fixed
-
Focal length: 2.8 mm
-
Aperture: F1.4
-
Horizontal field of view: 110°
-
Vertical field of view: 58°
-
Diagonal field of view: 132°
-
Min. illumination: 0.005 lx in colour mode
-
Min. illumination B/W: 0.0005 lx
-
IR illumination: up to 40 m
-
Warm white light: up to 30 m
-
Smart Dual Light: yes
-
WDR: 120 dB
-
3D NR: yes
-
BLC: yes
-
HLC: yes
-
ROI: yes
-
Defog: yes
-
SSA: yes
-
Smart Illumination: yes
-
SMD: SMD 4.0
-
AcuPick: yes
-
Face detection: yes
-
Human classification: yes
-
Vehicle classification: yes
-
IVS: yes
-
Intrusion detection: yes
-
Line crossing detection: yes
-
Loitering detection: yes
-
Built-in microphone: yes
-
Audio input: 1
-
Audio output: 1
-
Two-way audio: yes
-
Alarm input: 1
-
Alarm output: 1
-
microSD: up to 512 GB
-
Video compression: H.265 / H.264 / MJPEG
-
Smart Codec: Smart H.265+ / Smart H.264+
-
AI Codec: AI H.265 / AI H.264
-
Network connection: RJ-45
-
Network speed: 10/100 Mbps
-
Power supply: 12 V DC / PoE
-
PoE: IEEE 802.3af
-
Max. power consumption: up to 10 W
-
Pan: 0–360°
-
Tilt: 0–90°
-
Rotation: 0–360°
-
Lens mount: M12
-
Protection class: IP67
-
Housing: metal
-
Operating temperature: -40 to +60 °C
-
Operating humidity: ≤95%, non-condensing
-
Dimensions: 192.7 × 70.5 × 66.4 mm
-
Net weight: 610 g
-
DORI 2.8 mm: 84.8 m / 33.9 m / 17.0 m / 8.5 m (Detect / Observe / Recognize / Identify)
