6 MP WizColor image

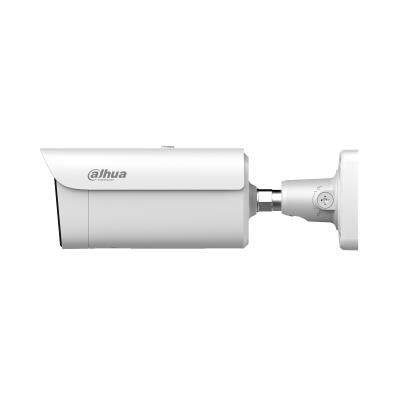

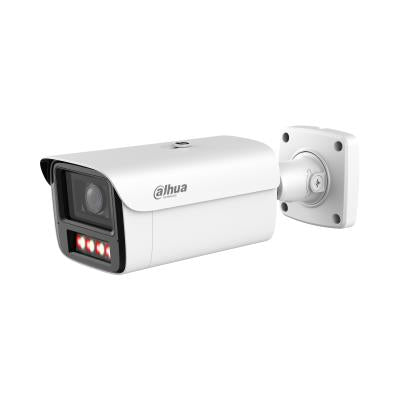

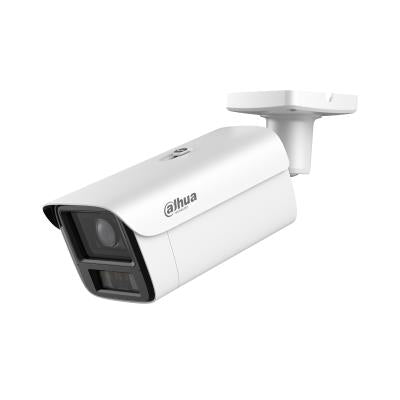

Dahua IPC-HFW5659Z-ZHE-PV-PRO is a professional WizMind 5 series bullet IP camera with a 1/1.8" CMOS sensor and 6 MP resolution. Maximum resolution is 3072 × 2048 pixels at up to 25/30 frames/s.
2.7–12 mm motorised zoom lens
The motorised varifocal lens provides a 2.7–12 mm focus range and approximately 98°–48° horizontal field of view. This allows the camera to be adjusted for both wider area surveillance and detailed observation of distant objects.
WizColor technology
The large 1/1.8" sensor and WizColor technology deliver high-quality images even in low-light conditions. The camera can provide colour images in very low light, whilst in complete darkness the integrated illumination is used.
IR and warm white light up to 60 m
The integrated multi-core illumination system provides up to 60 m IR illumination and up to 60 m warm white light illumination, ensuring effective surveillance even at night.
WizMind AI analytics
The camera uses Xinghan Vision Models and Deep Learning technology. AcuPick, video metadata, IVS, face detection, smart object detection and people counting functions are supported.
AI Rule Assist
AI Rule Assist helps automatically create more accurate IVS rules based on Xinghan Vision models, thus simplifying smart perimeter protection configuration.
Image enhancement
The camera supports WDR, 3D NR, HLC, BLC, ROI, image rotation and digital watermark. These functions help preserve image details in complex lighting conditions and reduce video noise.
Two-way audio
The camera has two built-in microphones and a speaker, as well as audio input and output. Two-way audio communication is supported.
Local recording
The integrated microSD slot supports memory cards up to 1 TB, allowing video recordings to be saved locally in addition to NVR or server recording.
PoE, ePoE and 12 V DC
The camera supports 12 V DC, PoE+ (802.3at) and ePoE power supply. It also provides a 12 V DC output with maximum current of 165 mA, which can facilitate connection of additional devices.
IP67 and IK10 protection
The durable housing provides IP67 protection against dust and water, as well as IK10 impact resistance. The camera is designed for use in complex outdoor conditions and operates at temperatures from -40 to +60 °C.
Specifications
-
Model: IPC-HFW5659Z-ZHE-PV-PRO
-
Manufacturer: Dahua
-
Series: WizMind 5
-
Camera type: IP camera
-
Camera form: Bullet
-
Application: indoor and outdoor
-
Sensor: 1/1.8" CMOS
-
Resolution: 6 MP
-
Max. resolution: 3072 × 2048 px
-
Max. frame rate: 25/30 frames/s
-
Lens: motorised varifocal
-
Focus distance: 2.7–12 mm
-
Horizontal field of view: 98°–48°
-
Min. illumination colour mode: 0.0005 lx
-
Min. illumination B/W: 0.0003 lx
-
IR illumination: up to 60 m
-
Warm white light: up to 60 m
-
WizColor: yes
-
WDR: yes
-
3D NR: yes
-
BLC: yes
-
HLC: yes
-
ROI: yes
-
Image Stabilization: yes
-
AcuPick: yes
-
AI Rule Assist: yes
-
Video metadata: yes
-
IVS: yes
-
Face detection: yes
-
Smart object detection: yes
-
People counting: yes
-
Built-in microphones: 2
-
Built-in speaker: 1
-
Two-way audio: yes
-
Audio input: 1
-
Audio output: 1
-
Alarm inputs: 2
-
Alarm outputs: 2
-
RS-485: 1
-
microSD: up to 1 TB
-
Video compression: H.265 / H.264
-
Smart Codec: Smart H.265+ / Smart H.264+
-
AI Codec: AI H.265 / AI H.264
-
Network connection: RJ-45
-
Power supply: 12 V DC / PoE+ / ePoE
-
PoE: IEEE 802.3at
-
12 V DC output: up to 165 mA
-
Protection class: IP67
-
Impact resistance: IK10
-
Operating temperature: -40 to +60 °C
-
Window heating: yes
-
Housing colour: white
-
Net weight: approximately 1.65 kg
-
Dimensions: 302.6 × 110.8 × 99.1 mm
-
Lens mount: M16
-
Application: perimeter protection, business premises, car parks, warehouses, industrial facilities and other professional video surveillance systems.
