High-resolution 6 MP image
The camera is equipped with a 1/2.7 type CMOS image sensor and provides images with a resolution of up to 3288 × 1850 pixels. At maximum 6 MP resolution, the frame rate reaches 20 frames per second, and at 2688 × 1520 pixel resolution – up to 25/30 frames per second.
Clear image in low light
F1.6 aperture and high light sensitivity help maintain clear and detailed images even in insufficient lighting. Minimum illumination in colour mode is 0.007 lx, and in black and white mode – 0.0007 lx.

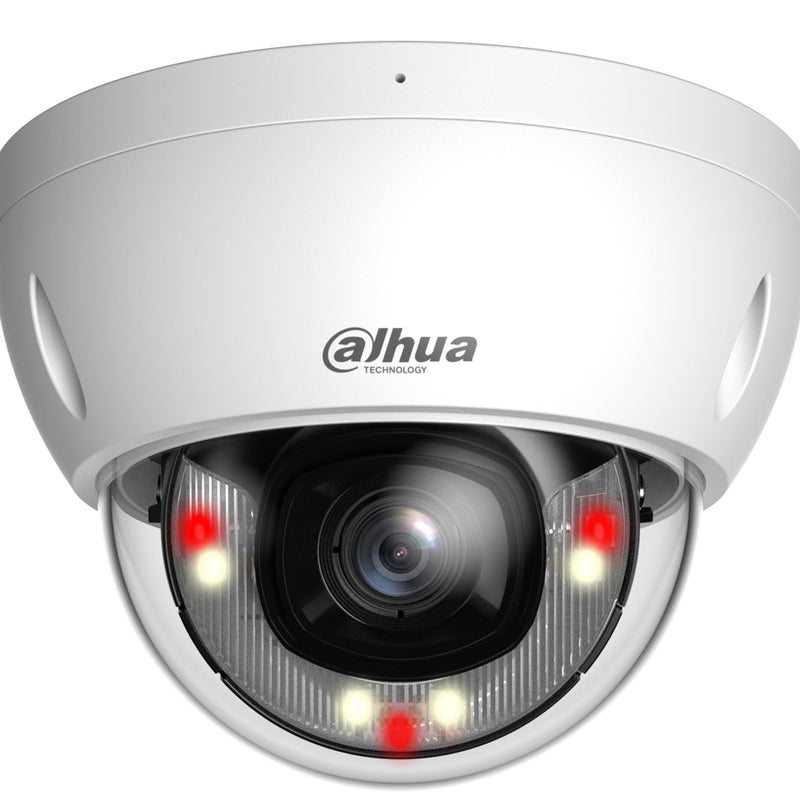

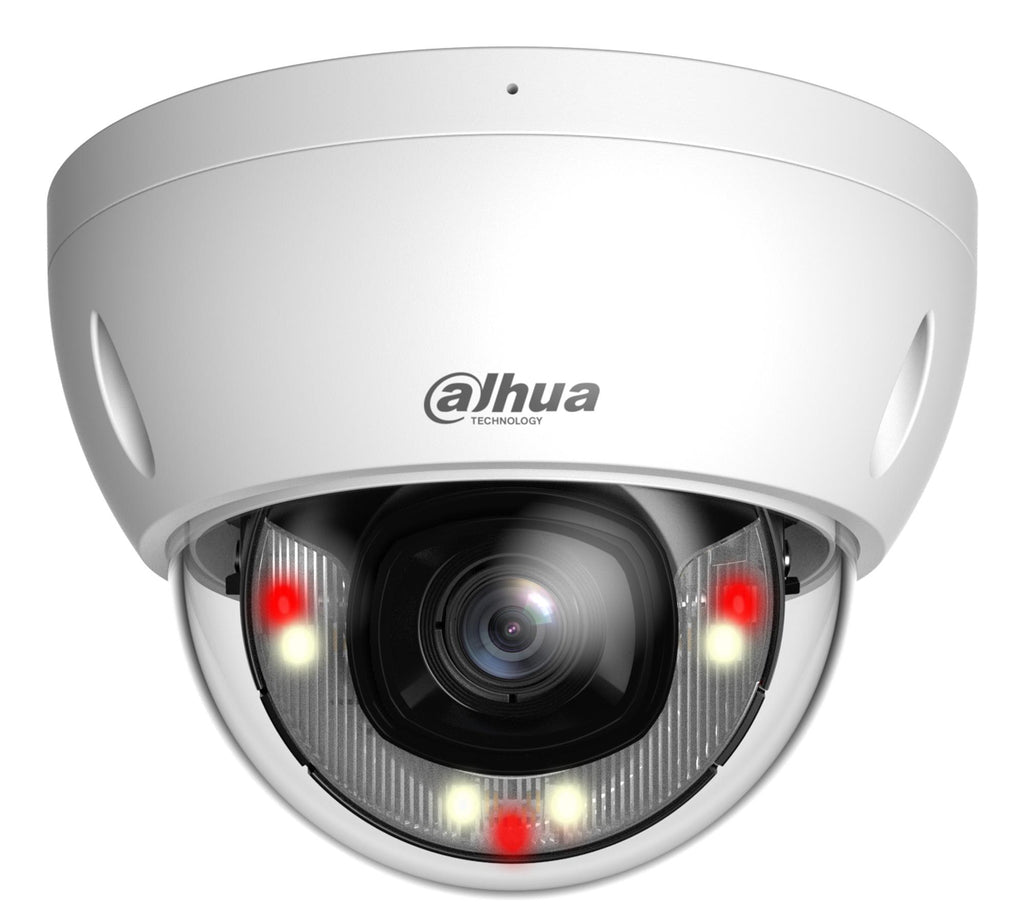

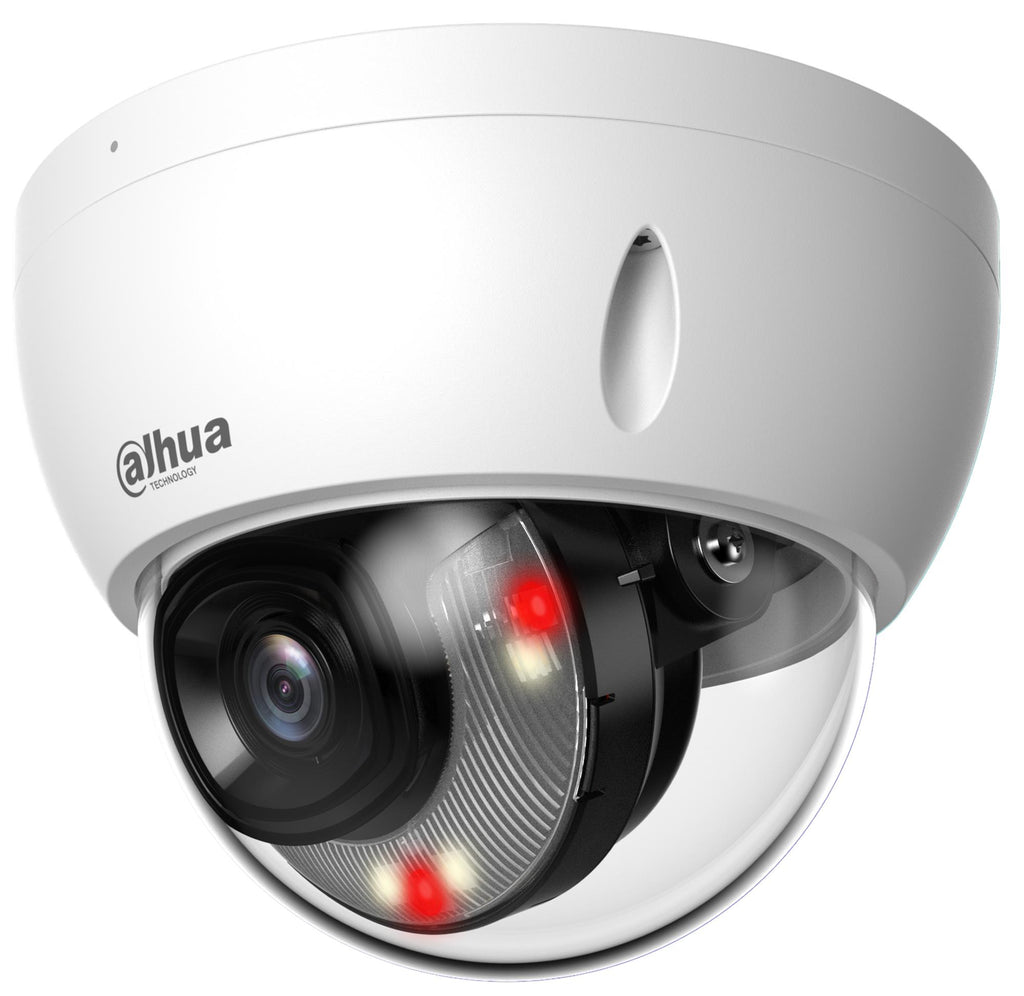

Smart dual-spectrum illumination
Three infrared and four warm white light illuminators provide visibility up to 30 m away. Three illumination modes are available, allowing the use of infrared, warm white or intelligent combined illumination according to surveillance conditions.
Wide 112° viewing angle
Fixed focus 2.8 mm lens provides 112° horizontal, 61° vertical and 132° diagonal viewing angle. The wide field of view is suitable for monitoring entrances, courtyards, corridors, car parks and other areas.
Human and vehicle classification
Deep machine learning algorithms enable the camera to accurately distinguish between humans and vehicles from other moving objects. Virtual line crossing and intrusion detection help reduce the number of false alarms caused by insignificant motion.
SMD Plus intelligent motion detection
SMD Plus technology analyses motion and focuses on humans and vehicles. Using a compatible intelligent network video recorder, it is possible to refine the search and quickly find the required events in the recorded video material.
120 dB wide dynamic range
Wide dynamic range helps preserve details in both very bright and dark image areas simultaneously. The camera supports backlight compensation, bright light compensation, three-dimensional noise reduction and automatic white balance adjustment.
Efficient video compression
Smart H.265+ and Smart H.264+ video compression technologies reduce network bandwidth and recording storage consumption while maintaining high image quality. The camera simultaneously supports two video streams.
Built-in microphone
The built-in microphone provides real-time audio recording. The camera supports multiple audio compression formats and can detect unusual sound events.
Local and network recording storage
Video recordings can be saved to a microSD memory card with capacity up to 256 GB, as well as to FTP, SFTP and NAS network storage. The camera can be managed with SmartPSS Lite, DSS, DMSS and DoLynk Care software.
Flexible power supply
The camera can be powered by 12 V DC or PoE power supply, using a single network cable for both data transmission and power supply. Maximum power consumption with PoE power supply is 8.2 W.

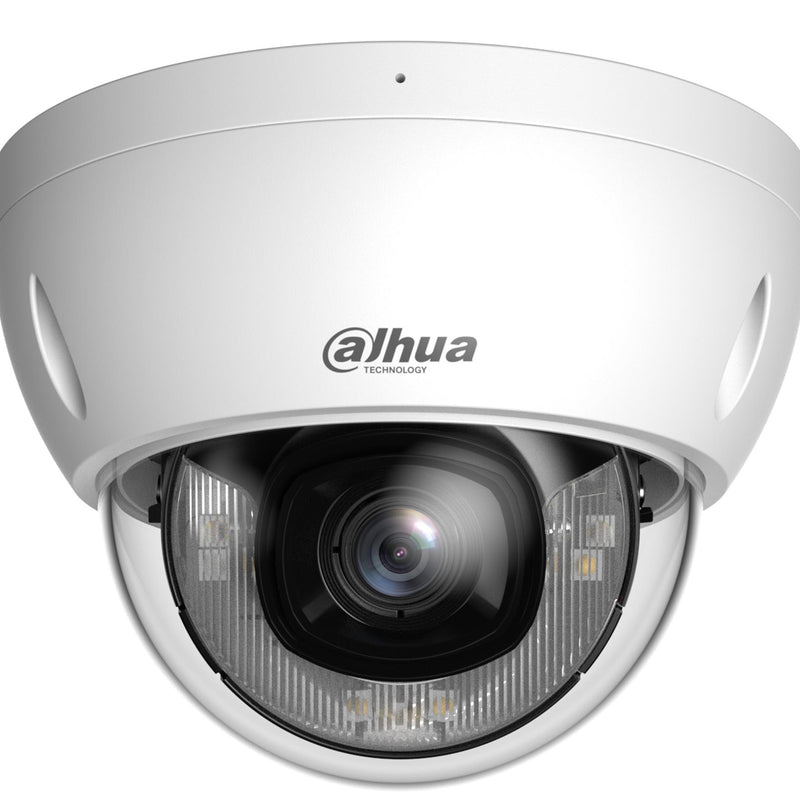

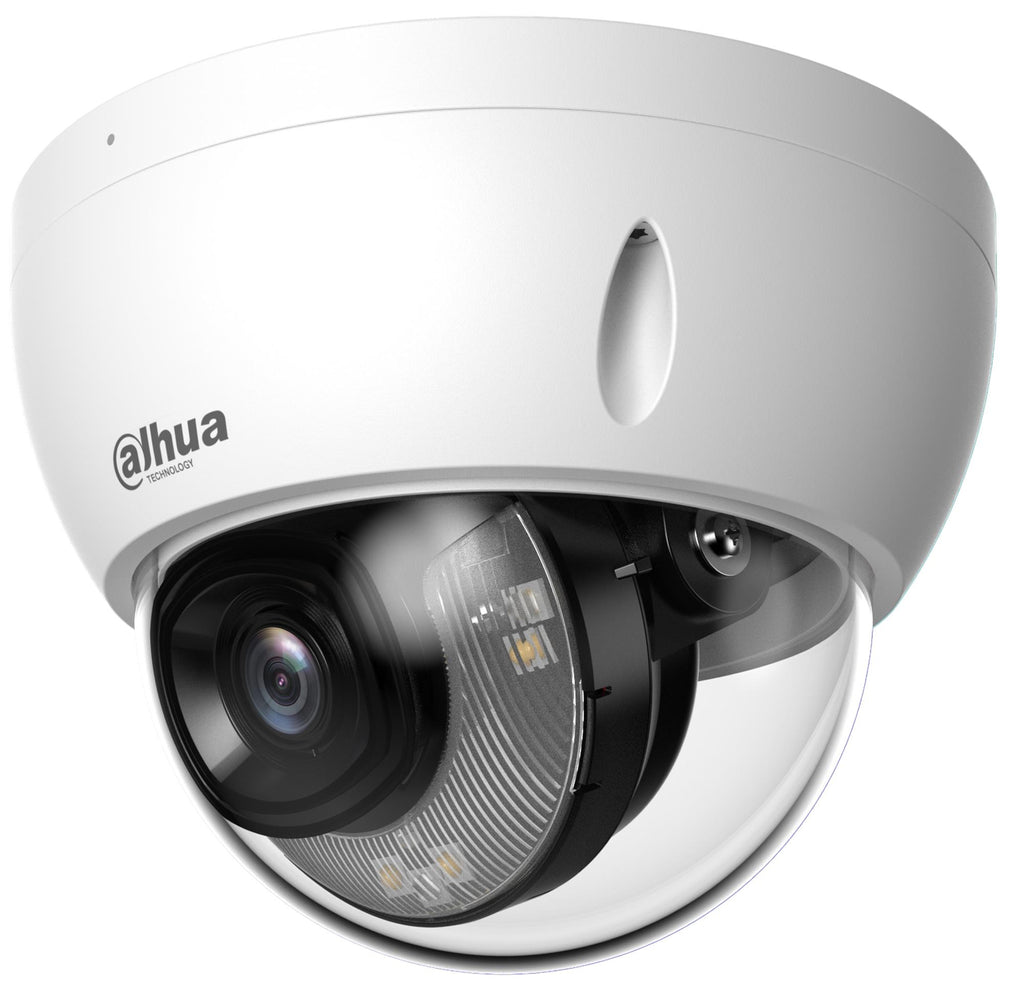

Durable vandal-resistant housing
Metal housing with IP67 protection rating protects the camera from dust and water, while IK10 impact resistance class provides protection against mechanical impacts. The camera is designed to operate at temperatures from −40 °C to +60 °C.
Specification
Manufacturer: DAHUA
Model: IPC-HDBW2649E-S-IL-0280B-S2
ELKO code: 1464727
Series: WizSense
Camera type: Vandal-resistant dome network camera
Application: Indoor and outdoor conditions
Colour: White
Connection type: Wired
Image sensor: 1/2.7 type CMOS
Effective resolution: 6 MP
Maximum resolution: 3288 × 1850 pixels
Built-in memory: 128 MB
Operating memory: 256 MB
Scanning system: Progressive scanning
Electronic shutter speed: From 1/3 to 1/100 000 s
Minimum illumination in colour mode: 0.007 lx at F1.6
Minimum illumination in black and white mode: 0.0007 lx at F1.6
Minimum illumination with illuminator enabled: 0 lx
Signal to noise ratio: More than 56 dB
Illumination type: Infrared and warm white
Infrared illumination distance: Up to 30 m
Warm white illumination distance: Up to 30 m
Number of infrared illuminators: 3
Number of warm white illuminators: 4
Illumination control: Automatic or manual
Smart dual-spectrum illumination: Yes
Horizontal adjustment: From 0° to 355°
Vertical adjustment: From 0° to 65°
Rotation adjustment: From 0° to 355°
Lens type: Fixed focus
Lens mount: M12
Focus distance: 2.8 mm
Maximum aperture: F1.6
Horizontal viewing angle: 112°
Vertical viewing angle: 61°
Diagonal viewing angle: 132°
Aperture control: Fixed
Closest focusing distance: 1 m
DORI detection distance: 61.2 m
DORI observation distance: 24.5 m
DORI recognition distance: 12.2 m
DORI identification distance: 6.1 m
Perimeter protection: Virtual line crossing and intrusion detection
Object classification: Humans and vehicles
Intelligent motion detection: SMD Plus
Intelligent search: Yes, with compatible intelligent network video recorder
Video compression: H.265, H.264, H.264H, H.264B and MJPEG
Intelligent video compression: Smart H.265+ and Smart H.264+
Maximum frame rate at 6 MP resolution: 20 frames per second
Maximum frame rate at 4 MP resolution: 25/30 frames per second
Number of video streams: 2
Supported resolutions: 3288 × 1850, 3200 × 1800, 2880 × 1620, 2688 × 1520, 2048 × 1536, 2304 × 1296, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 704 × 480, 640 × 480, 352 × 288 and 352 × 240 pixels
Data transmission rate control: CBR and VBR
H.264 video data transmission rate: From 32 to 8192 kbit/s
H.265 video data transmission rate: From 12 to 8192 kbit/s
Day and night mode: Automatic, colour or black and white
Backlight compensation: Yes
Bright light compensation: Yes
Wide dynamic range: 120 dB
White balance: Automatic, natural, street lighting, outdoor, manual or region-specific
Gain control: Automatic or manual
Noise reduction: Three-dimensional noise reduction
Motion detection: 4 rectangular zones
Regions of interest: 4 zones
Image rotation: 0°, 90°, 180° and 270°
Image mirroring: Yes
Privacy masking: 4 zones
Built-in microphone: Yes
Audio compression: G.711a, G.711Mu, PCM and G.726
Alarm events: Memory card absence, full or corrupted memory card, network connection interruption, IP address conflict, unauthorised access, motion detection, camera obstruction, virtual line crossing, intrusion, sound detection, voltage detection, SMD and security exception
Network connection: RJ-45, 10/100 Base-T
Software development kit and API: Yes
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour and automatic registration
Compatibility: ONVIF profiles S, G and T, CGI
Maximum number of users: 20
Total network bandwidth: 48 Mbit/s
Data storage: FTP, SFTP, microSD memory card and NAS
Maximum memory card capacity: 256 GB
Management software: SmartPSS Lite, DSS, DMSS and DoLynk Care
Supported mobile operating systems: Android and iOS
Certification: CE-LVD and CE-EMC
Power supply: 12 V DC or PoE
Basic power consumption with 12 V power supply: 2.2 W
Basic power consumption with PoE power supply: 2.9 W
Maximum power consumption with 12 V power supply: 6.8 W
Maximum power consumption with PoE power supply: 8.2 W
Operating temperature: From −40 °C to +60 °C
Storage temperature: From −40 °C to +60 °C
Operating relative humidity: Up to 95 %, without condensation
Storage relative humidity: Up to 95 %, without condensation
Protection rating: IP67
Impact resistance class: IK10
Housing material: Metal
Dimensions: 81 × 109.9 mm
Net weight: 340 g
Gross weight: 490 g
