High-resolution 6 MP image
6 MP CMOS image sensor delivers detailed images with maximum resolution of 3072 × 2048 and frame rate up to 30 frames per second. The camera simultaneously supports four video streams for various live viewing, recording and remote monitoring needs.
WizColor technology
WizColor technology, light-sensitive sensor and F1.0 aperture lens provide high-quality colour images in very low light conditions. Minimum required illumination in colour mode is only 0.0002 lx.
3.6 mm fixed lens
Fixed focus 3.6 mm lens provides 93° horizontal, 50° vertical and 111° diagonal field of view. Minimum focusing distance is 4.4 m.

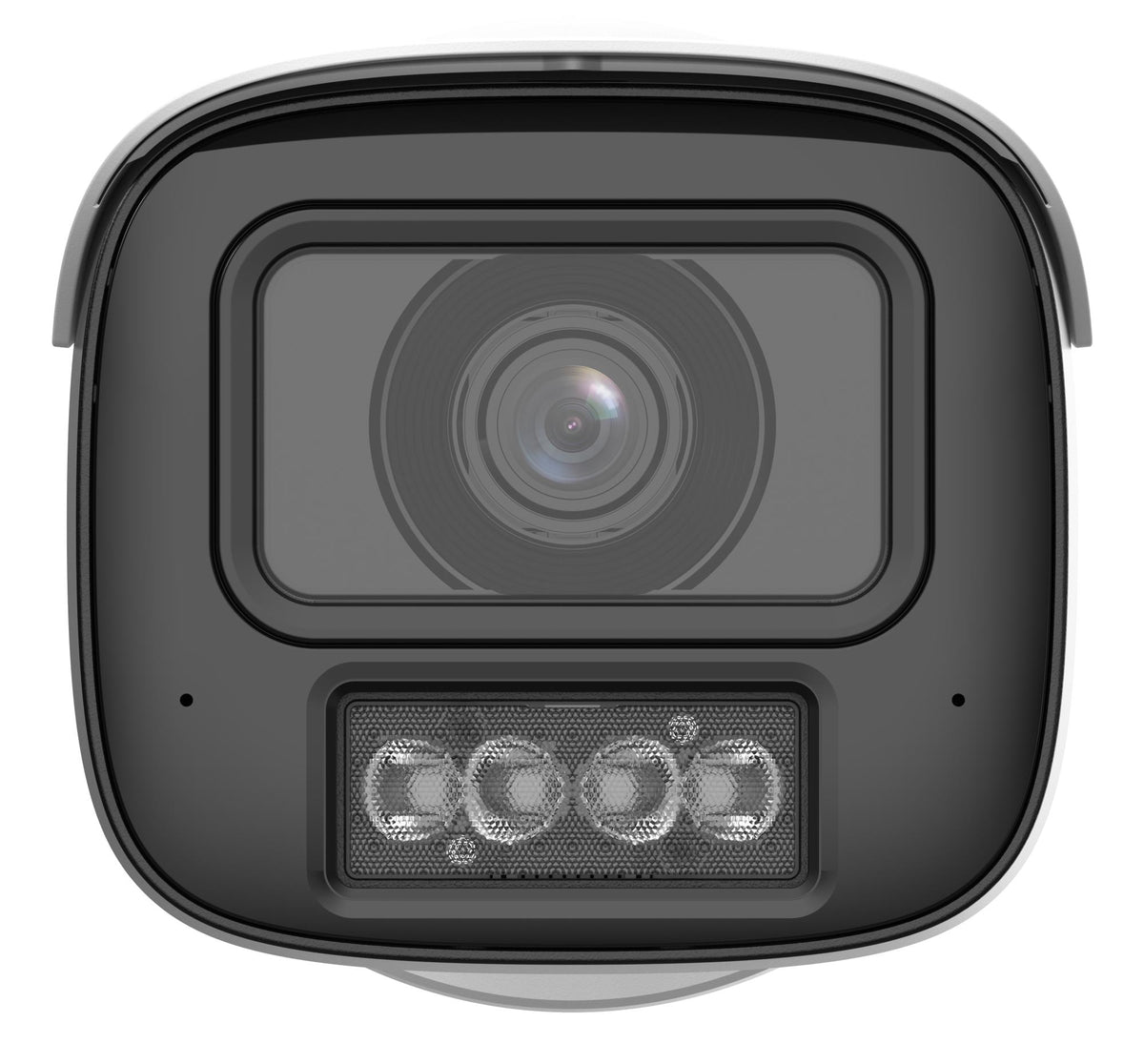

Smart dual illumination
Four multifunctional illuminators combine infrared and warm white light. Infrared illumination operating range reaches 80 m, while warm white light operating range is 60 m. Smart illumination function automatically adjusts lighting to monitoring conditions.

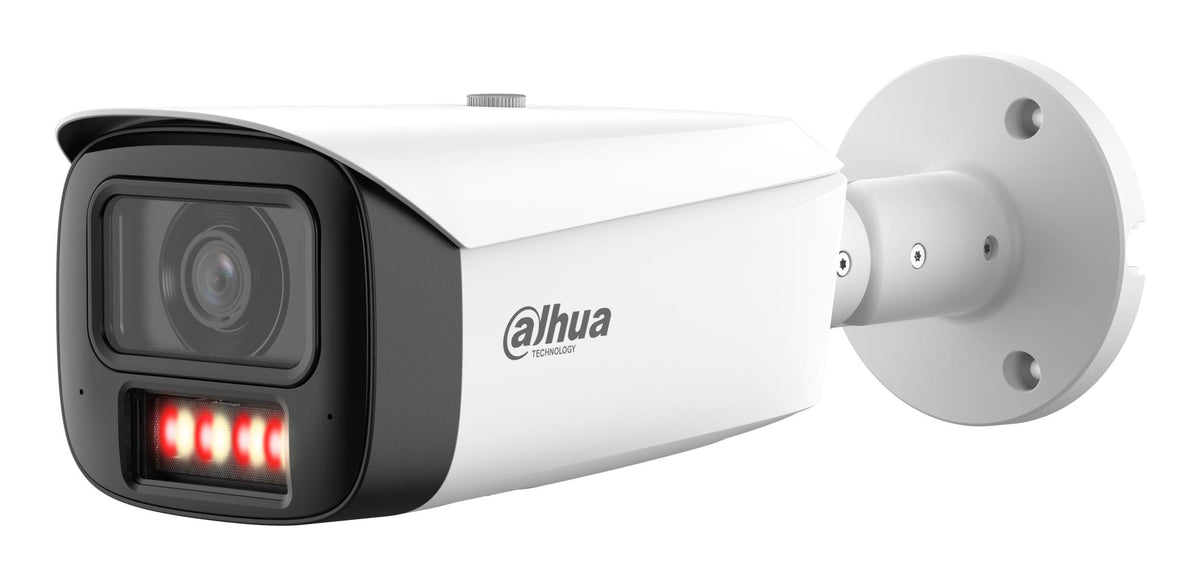

Active deterrence
Upon detecting a security event, the camera can activate flashing or continuous warm white light warning and audio alarm. 11 built-in audio alarms are available, plus the ability to add up to 10 custom audio messages.
Precise human, vehicle and animal detection
SMD 4.0 technology and deep learning algorithms detect and classify humans, vehicles and animals. The camera supports line crossing, zone intrusion, rapid movement, prolonged stay, human gathering, unauthorised parking and loitering detection.
AI Rule Assist function
AI Rule Assist function, using Xinghan artificial intelligence models, automatically creates accurate smart video analytics rules. Self-learning function helps reduce false alarm count and increases object detection range.
AcuPick smart search
AcuPick function together with compatible network video recorder allows quick and accurate search for humans, vehicles and animals in live and recorded video.
Face detection and attribute analysis
The camera supports face detection, image capture, optimisation and enhancement. It analyses facial attributes and expressions, provides optimal face image selection and multiple image capture strategies.
People counting and queue management
The camera counts people crossing a defined line, entering or leaving the monitoring zone. It supports people counting in a specific area, queue management and report generation by day, week, month and year.
Video metadata and heat map
Video metadata function collects information about people, faces, mechanical and non-mechanical vehicles. Heat map helps analyse human movement and activity intensity in the monitoring zone.
Two-way audio communication
Two built-in microphones provide audio recording, while the built-in speaker enables two-way audio communication and playback of alarm messages. Separate audio input and output are also available.
Quality image in complex lighting
130 dB wide dynamic range, 3D noise reduction, backlight compensation, bright light compensation, fog reduction and lens distortion correction help maintain clear image in complex lighting conditions.
Efficient video compression
H.265, H.264, Smart H.265+, Smart H.264+ and artificial intelligence encoding technologies reduce network load and storage space required for recordings, while maintaining high image quality.
Recording storage up to 1 TB
Recordings can be stored on microSD memory card with capacity up to 1 TB, network storage or FTP and SFTP server.
Versatile external connections
The camera is equipped with audio input and output, alarm input and output, and RS-485 interface. 12 V DC output with current up to 165 mA is available for powering additional devices.
Versatile power supply options
The camera can be powered by 12 V DC, PoE+ or ePoE technology. Dual power backup allows the camera to continue operating if one of the simultaneously used power sources is disconnected.
Durable housing for outdoor use
The housing has IP67 protection rating against dust and water, as well as IK10 impact resistance rating. The camera is designed to operate at temperatures from −40 °C to +60 °C.
Specification
Product code: 1459789
Model: HFW5659T1-ASE-PV0360BPRO
Manufacturer model: IPC-HFW5659T1-ASE-PV-0360B-PRO
EAN: 6937552411050

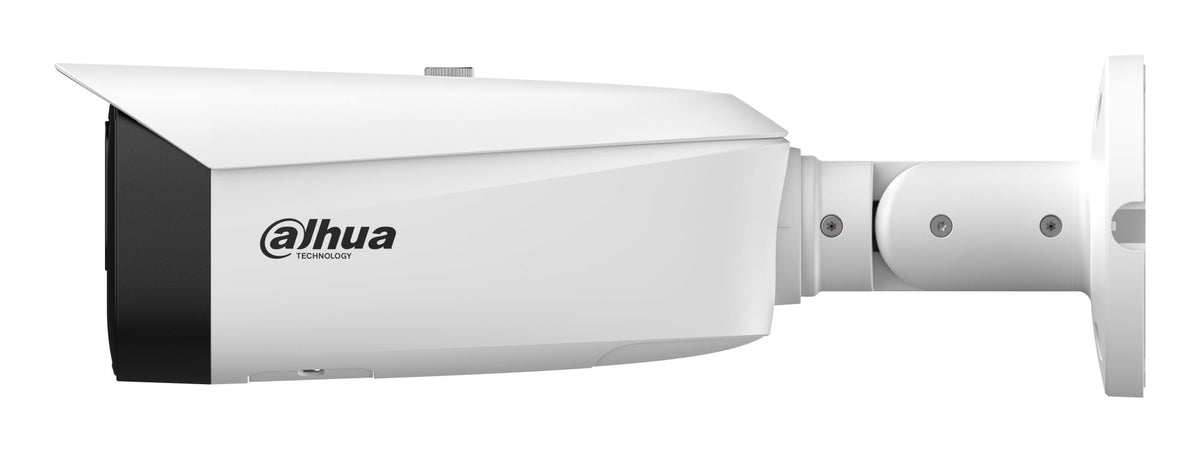

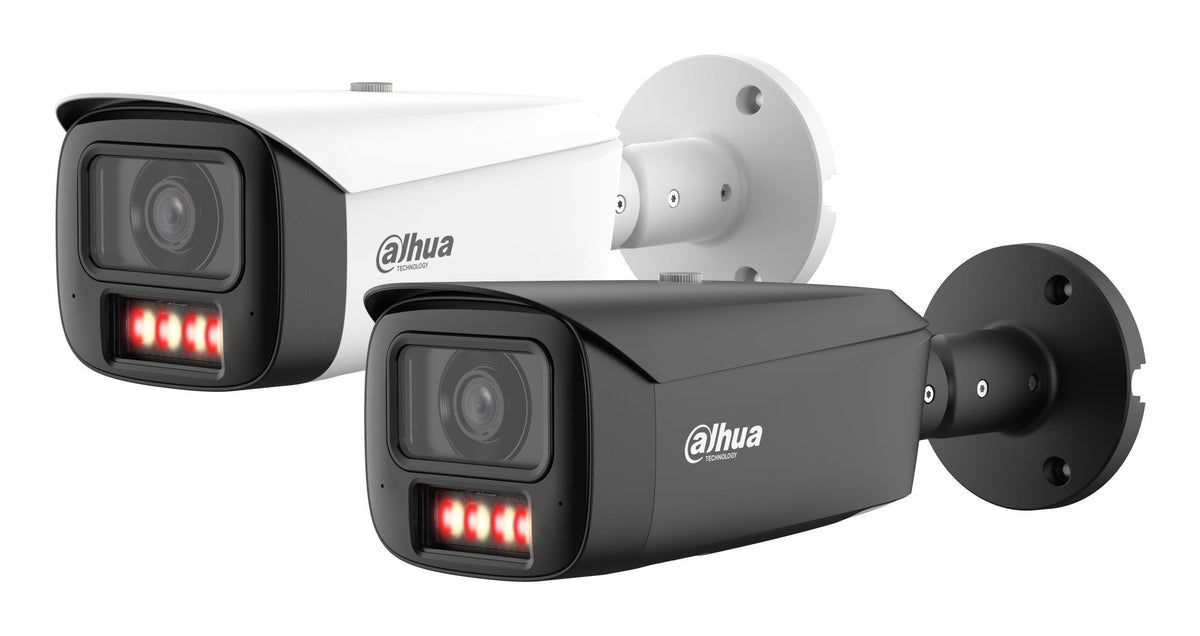

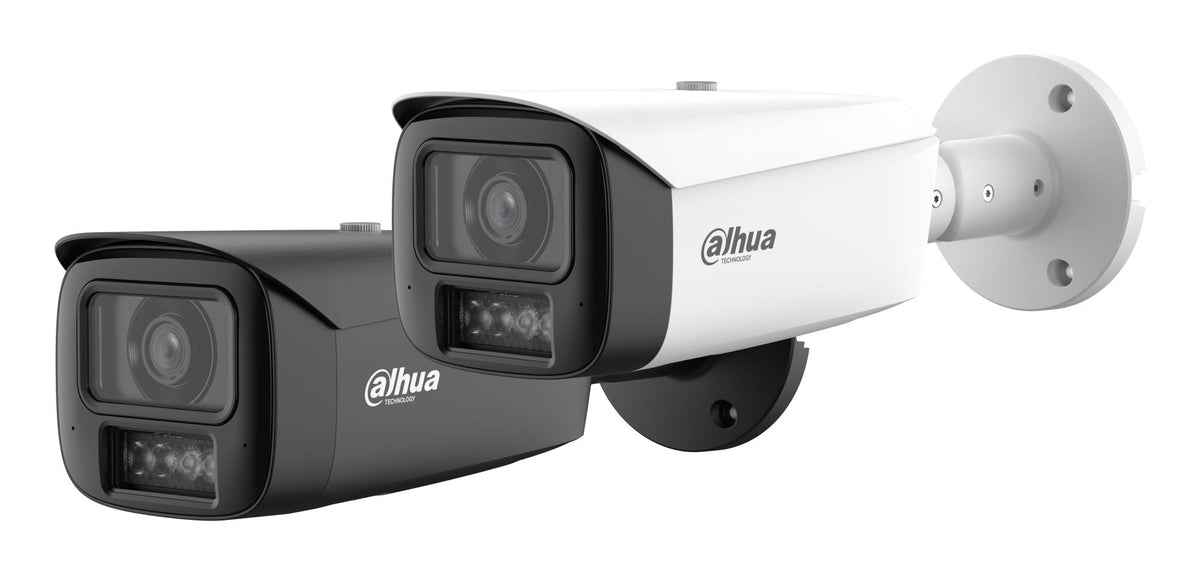

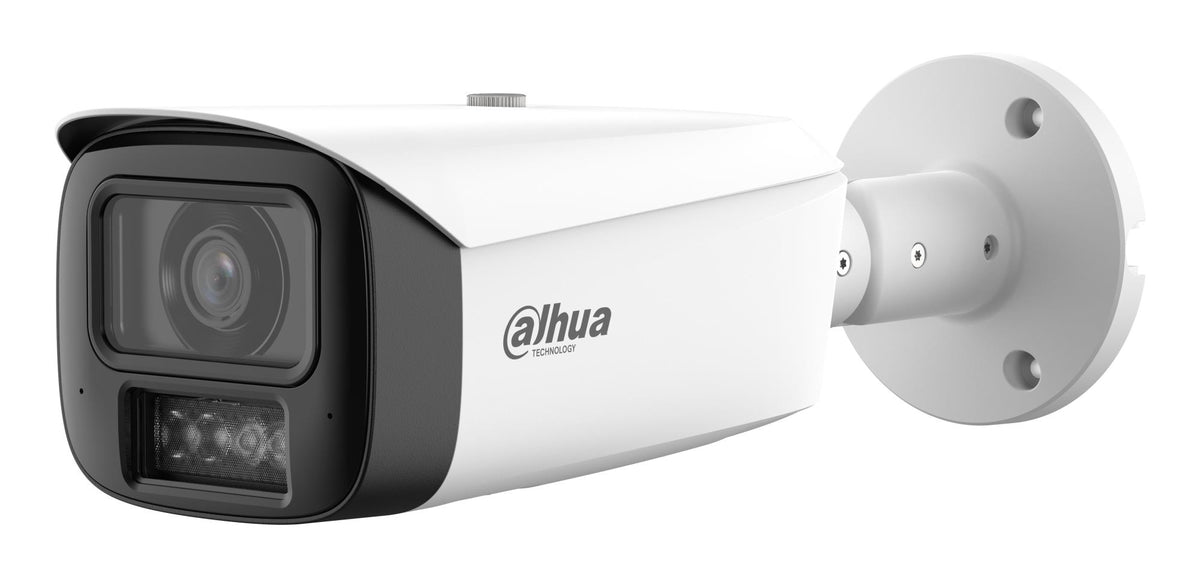

Camera type: cylindrical IP security camera
Installation location: indoors and outdoors
Installation method: wall, ceiling or pole mounted
Connection type: wired
Colour: white
Housing material: metal and plastic
Image sensor: CMOS
Resolution: 6 MP
Maximum resolution: 3072 × 2048
Maximum frame rate: 30 frames/s
Scanning system: progressive
Electronic shutter speed: 1/3 to 1/100,000 s
Minimum illumination in colour mode: 0.0002 lx
Minimum illumination in black and white mode: 0.0001 lx
Minimum illumination with illuminator on: 0 lx
Signal to noise ratio: more than 56 dB
Lens type: fixed focus lens
Lens mount: M16
Focal length: 3.6 mm
Maximum aperture: F1.0
Aperture control: fixed
Horizontal field of view: 93°
Vertical field of view: 50°
Diagonal field of view: 111°
Minimum focusing distance: 4.4 m
Detection distance: 85.6 m
Monitoring distance: 34.3 m
Recognition distance: 17.1 m
Identification distance: 8.6 m
Pan range: 0°–360°
Tilt range: 0°–90°
Rotation range: 0°–360°
Illumination type: infrared and warm white LED
Infrared illumination distance: up to 80 m
Warm white light distance: up to 60 m
Number of illuminators: 4
Illumination control: automatic or manual
Smart illumination: yes
Smart dual illumination: yes
Day and night mode: automatic, colour or black and white
Active deterrence: light and audio alarm
Light alarm: flashing or continuous warm white light
Light alarm duration: 5–30 s
Light flashing frequency: high, medium or low
Number of built-in audio alarms: 11
Number of custom audio alarms: up to 10
Audio volume adjustment: 0–100 %
Audio repetition count: 1–10
Smart motion detection: SMD 4.0
Object classification: humans, vehicles and animals
Perimeter protection: yes
Smart analysis functions: line crossing, zone intrusion, rapid movement, prolonged stay, human gathering, unauthorised parking and loitering detection
Face detection: yes
People counting: yes
People counting in specific zone: yes
Queue management: yes
Heat map: yes
Video metadata: yes
AcuPick function: yes
AI Rule Assist function: yes
Smart search: yes
Automatic scene adaptation: yes
Self-learning function: yes
Video compression: H.265, H.264, H.264H, H.264B and MJPEG
Smart video compression: Smart H.265+ and Smart H.264+
Artificial intelligence encoding: AI H.265 and AI H.264
Number of video streams: 4
Main video stream resolution: up to 3072 × 2048
Second video stream resolution: up to 704 × 576
Third video stream resolution: up to 1920 × 1080
Fourth video stream resolution: up to 1280 × 720
Video bitrate in H.264 format: 3–16,384 kbit/s
Video bitrate in H.265 format: 3–16,384 kbit/s
Bitrate control: CBR and VBR
Wide dynamic range: 130 dB
Noise reduction: 3D
Backlight compensation: yes
Bright light compensation: yes
Fog reduction: yes
Motion detection: 4 zones
Regions of interest: 4 zones
Privacy masks: 4 mosaic zones or 8 colour zones
Lens distortion correction: yes
Image mirroring: yes
Image rotation: 0°, 90°, 180° or 270°
Built-in microphones: 2
Built-in speaker: yes
Two-way audio communication: yes
Audio input: 1
Audio output: 1
Audio compression: G.711a, G.711Mu, PCM, G.726 and G.723
Alarm input: 1
Alarm output: 1
RS-485 interface: 1
Additional power output: 12 V DC
Additional power output maximum current: 165 mA
Memory card type: microSD
Maximum memory card capacity: 1 TB
Recording storage: microSD, FTP, SFTP and network storage
Network connection: RJ-45, 10/100 Base-T
Compatibility: ONVIF profiles S, G, T and M; CGI
Maximum number of users: 20
Total network bandwidth: 80 Mbit/s
Mobile operating systems: iOS and Android
Management software: DSS, DMSS and DoLynk Care
Power supply: 12 V DC, PoE+ or ePoE
PoE standard: IEEE 802.3at
Dual power backup: yes
Basic power consumption with 12 V supply: 4.1 W
Basic power consumption with PoE: 4.8 W
Maximum power consumption with 12 V supply: 21.6 W
Maximum power consumption with PoE: 24.2 W
Operating temperature: −40 °C to +60 °C
Storage temperature: −40 °C to +60 °C
Operating humidity: up to 95 %, without condensation
Storage humidity: up to 95 %, without condensation
Protection rating: IP67
Impact resistance rating: IK10
Corrosion protection: basic
Dimensions: 288.4 × 94.4 × 84.7 mm
Net weight: 1.09 kg
Gross weight: 1.39 kg
