6 MP resolution

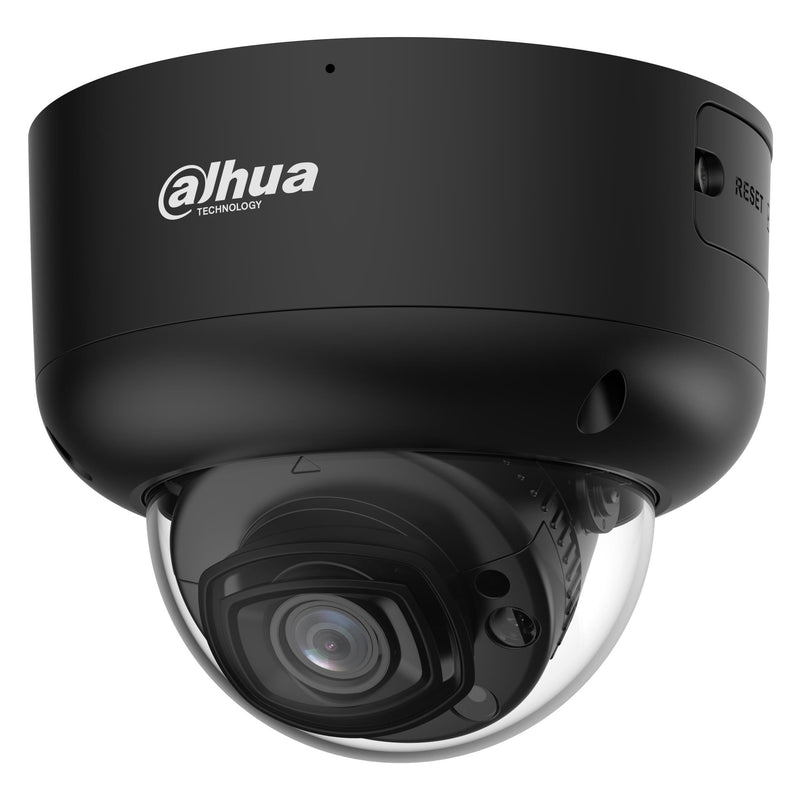

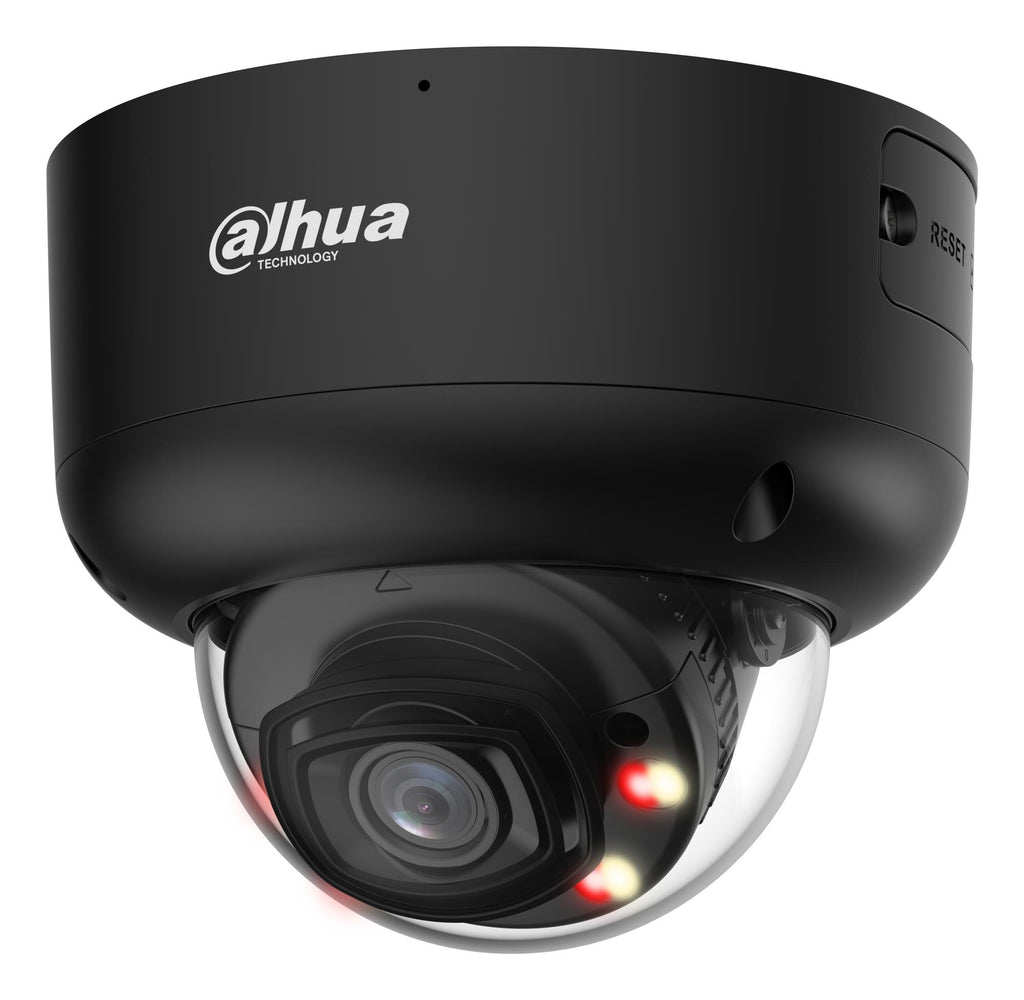

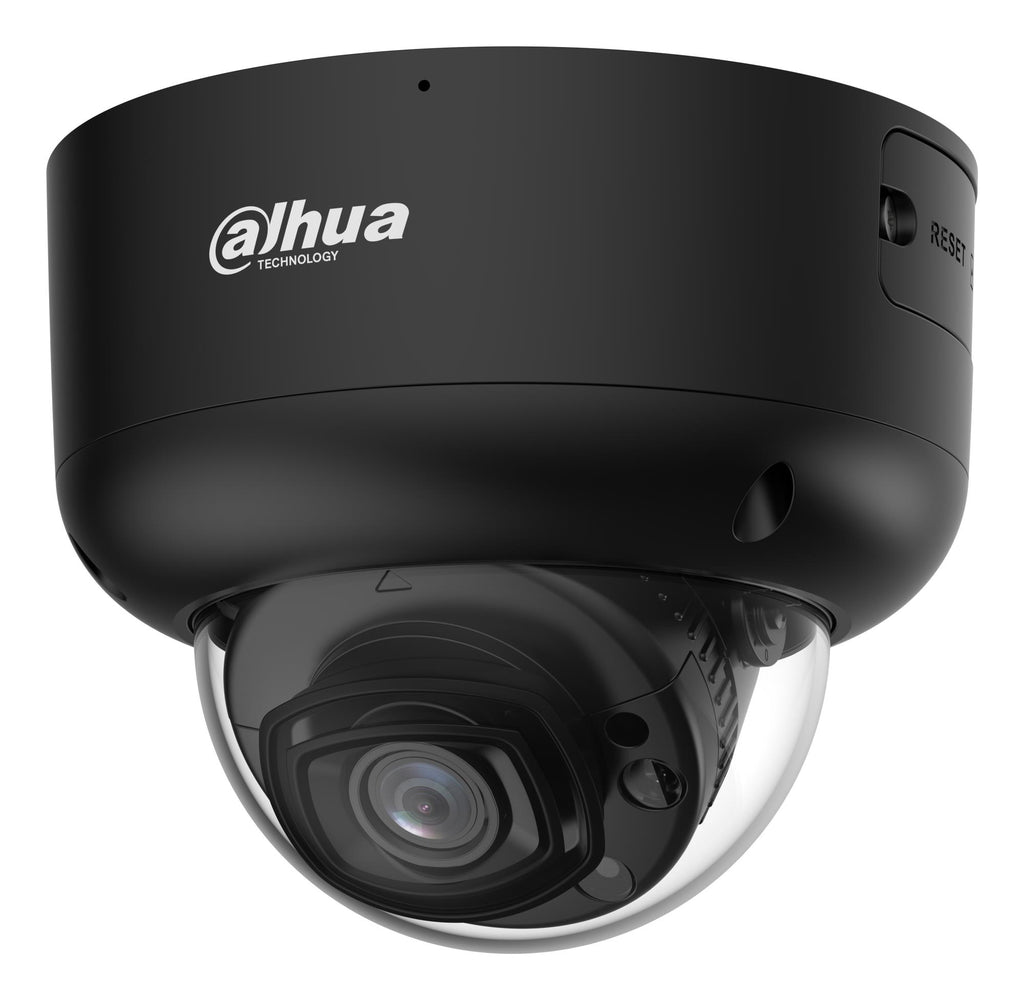

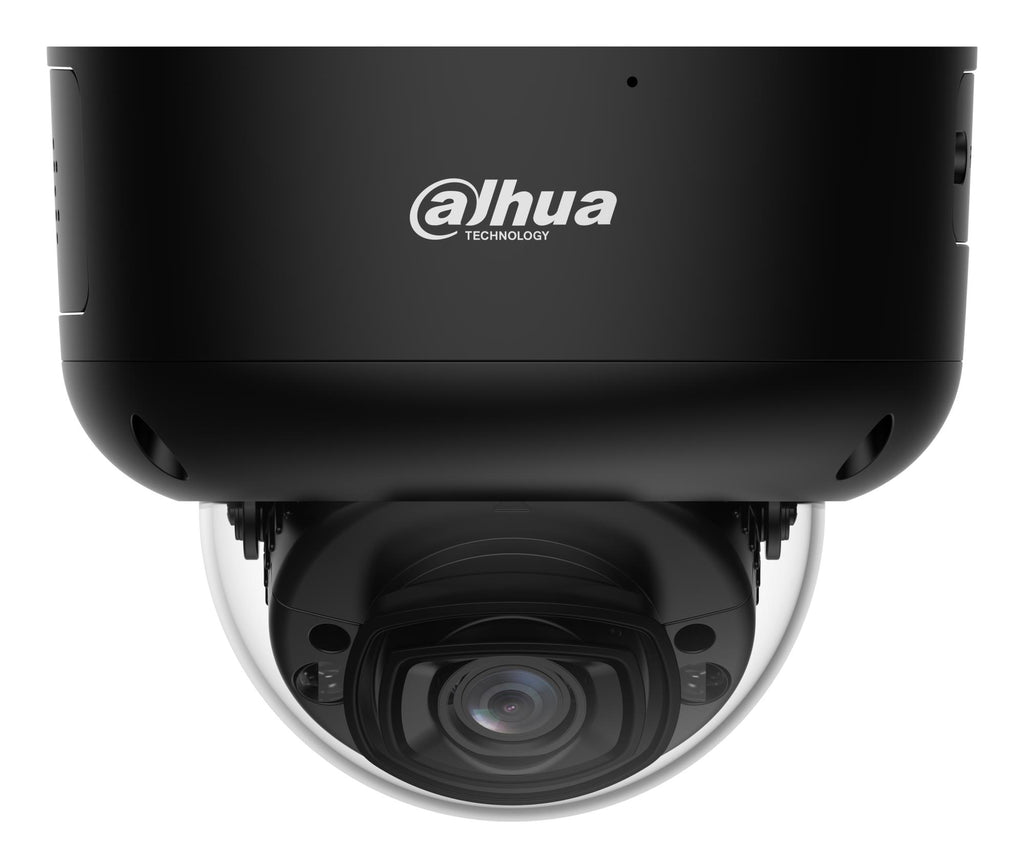

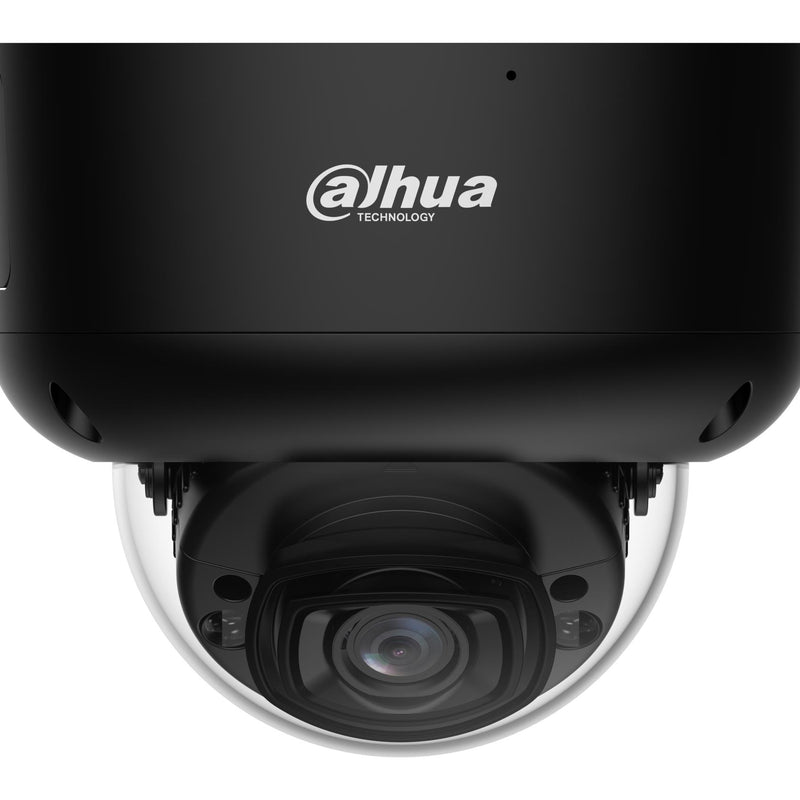

Dahua IPC-HDBW5659R1-ASE-PV-PRO is a 6 MP WizMind series dome IP camera with a 1/1.8″ CMOS sensor. It provides maximum 3072 × 2048 pixel resolution at up to 25/30 frames/s, delivering high-detail images for professional security monitoring.
Fixed lens
The camera is equipped with a 2.8 mm fixed focus lens with F1.0 aperture and 109° horizontal field of view. This provides a wide viewing area for territory and building surveillance.

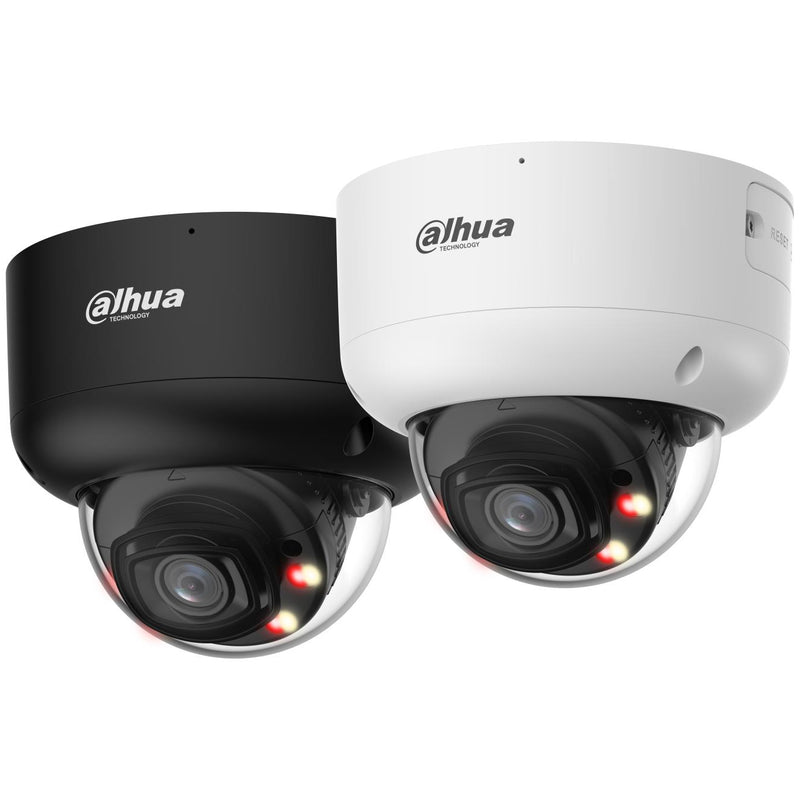

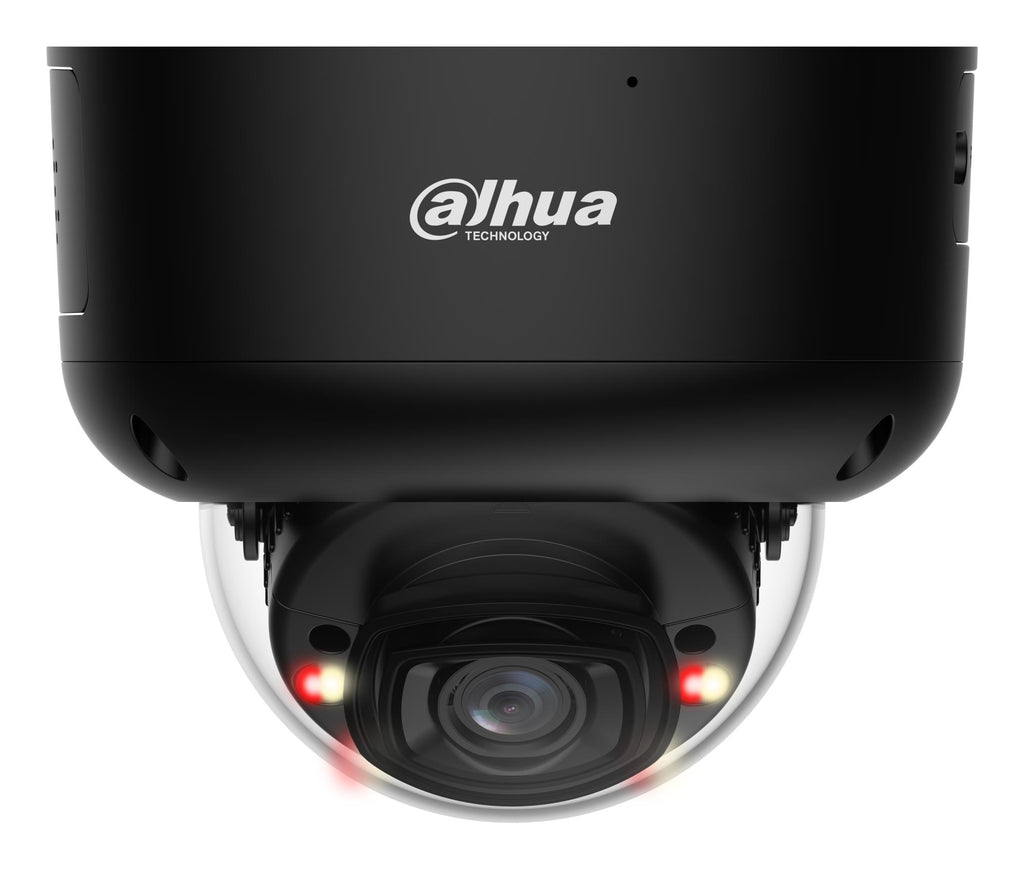

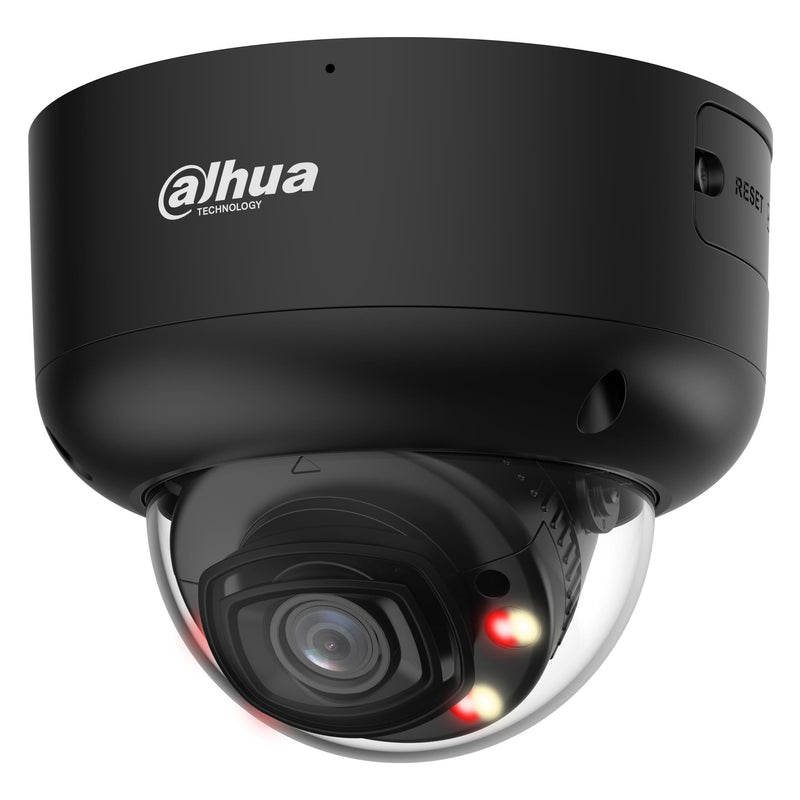

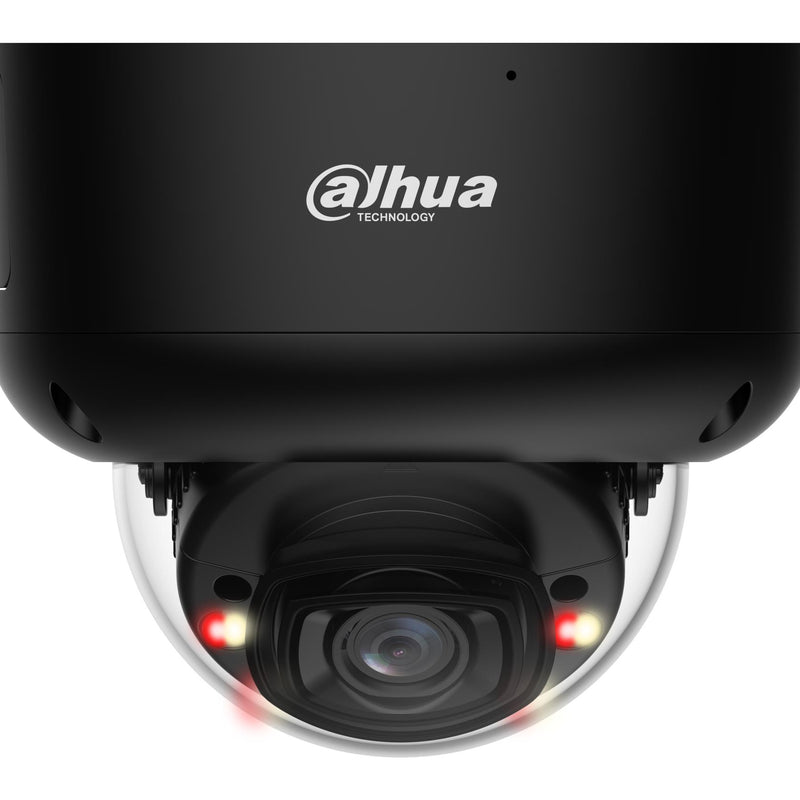

WizColor and Smart Dual Light
WizColor technology combined with F1.0 aperture delivers high-quality colour images in low-light conditions. The built-in multi-functional illumination provides IR visibility up to 60 m and warm white light illumination up to 50 m.
WizMind smart analytics
The camera uses Xinghan Vision large-scale artificial intelligence models and deep learning algorithms. It supports AcuPick, IVS, video metadata, face detection, people counting and other smart analytics functions.
Perimeter protection
IVS functions support intrusion, virtual line crossing, rapid motion, loitering, crowd gathering and vehicle parking detection. SMD 4.0 helps classify people, vehicles and animals, reducing false alarm incidents.
Enhanced image quality
WDR 130 dB, 3D noise reduction, BLC, HLC, image rotation, defog, ROI and Smart Illumination functions help preserve image detail in various lighting conditions.
Efficient video compression
The camera supports H.264 and H.265 video compression, as well as Smart H.264+, Smart H.265+, AI H.264 and AI H.265 technologies. These help reduce data stream and storage space requirements.
Two-way audio
The camera is equipped with two built-in microphones and one speaker, and supports two-way audio communication. One audio input and one audio output are available.
Local recording storage
microSD card slot supports memory cards up to 1 TB, allowing video recordings to be saved locally.
PoE+ and ePoE power supply
The camera supports 12 V DC, PoE+ and ePoE power supply. An additional 12 V DC output with maximum current of 165 mA allows powering additional devices.
Durable housing
Metal dome housing with IP67 protection and IK10 impact resistance class provides protection against dust, water and mechanical damage. The camera is designed for use in challenging outdoor conditions and operates at temperatures from -40 to 60 °C.
Specifications
Model: IPC-HDBW5659R1-ASE-PV-PRO
Manufacturer: Dahua
Series: WizMind 5
Camera type: IP camera
Camera shape: dome
Application: indoor and outdoor
Mounting type: ceiling
Housing material: metal
Housing colour: black
Sensor type: CMOS
Sensor size: 1/1.8″
Resolution: 6 MP
Maximum resolution: 3072 × 2048 pixels
Maximum frame rate: 25/30 frames/s
Lens type: fixed
Focus distance: 2.8 mm
Aperture: F1.0
Lens mount: M16
Horizontal field of view: 109°
Vertical field of view: 59°
Diagonal field of view: 131°
Minimum illumination: 0.0002 lx
IR illumination distance: 60 m
Warm white light distance: 50 m
WDR: 130 dB
Video compression: H.265/H.264/MJPEG
Smart H.265+: yes
Smart H.264+: yes
AI H.265: yes
AI H.264: yes
3D noise reduction: yes
BLC: yes
HLC: yes
ROI: yes
Smart Dual Light: yes
Smart Illumination: yes
Defog: yes
AcuPick: yes
SMD: SMD 4.0
IVS: yes
Face detection: yes
People counting: yes
Video metadata: yes
Intrusion detection: yes
Virtual line crossing detection: yes
Rapid motion detection: yes
Loitering detection: yes
Crowd gathering detection: yes
Vehicle parking detection: yes
Built-in microphones: 2
Built-in speaker: yes
Two-way audio: yes
Audio input: 1
Audio output: 1
Alarm input: 1
Alarm output: 1
RS-485: 1
Memory card type: microSD
Maximum memory card capacity: 1 TB
Network port: RJ-45
Network speed: 10/100 Mb/s
Power source: 12 V DC/PoE+/ePoE
PoE standard: IEEE 802.3at
Maximum power consumption: 21.7 W
PoE power consumption: 23.9 W
12 V DC output: yes
12 V DC output maximum current: 165 mA
Protection class: IP67
Impact resistance class: IK10
Operating temperature: -40 to 60 °C
Operating relative humidity: up to 95%
Pan range: 0–355°
Tilt range: 0–80°
Rotation range: 0–355°
Closest focusing distance: 3.2 m
Dimensions: 126 × 105 mm
Diameter: 126 mm
Net weight: 0.73 kg
Warranty period: 36 months
