Clear 5 MP image
The camera is equipped with a 1/2.8 type CMOS image sensor and delivers video with a resolution of up to 2880 × 1620 pixels. The maximum frame rate reaches 25/30 frames per second, ensuring detailed and smooth images.
4G mobile network connection
The built-in 4G connection allows the camera to be used in locations where fixed internet or Wi-Fi networks are not available. The camera is suitable for monitoring remote areas, farms, gardens, construction sites and other outdoor facilities.
Smart dual-type lighting
Two infrared and two warm white light illuminators provide visibility up to 30 m away. Smart lighting enables both black and white and full-colour images at night, whilst reducing unnecessary light pollution.
Active deterrence with sound and light signals
Upon detecting an intrusion, the camera can activate sound and light alarms to warn unwanted persons. At the same time, information about the event is sent to the user's mobile device.
Human and vehicle recognition
Artificial intelligence algorithms allow the camera to distinguish between humans and vehicles from other moving objects. This helps reduce false alerts that may be caused by animals, trees, rain or other irrelevant motion sources.
SMD 3.0 smart motion detection
SMD 3.0 technology analyses motion events and focuses on humans and vehicles. The camera also supports virtual line crossing and intrusion detection.
Automatic target tracking
Upon recognising a person, the camera can automatically follow the moving target by adjusting horizontal and vertical position. The horizontal movement range is up to 345°, and the vertical movement range is up to 90°.
Wide viewing angle
A fixed focus 4 mm lens with F1.6 aperture provides a horizontal viewing angle of 81.27°, vertical viewing angle of 47.73° and diagonal viewing angle of 94.41°.
Two-way audio communication
The built-in microphone and speaker enable sound recording and two-way conversation in real time. Using the mobile app, it is possible to communicate remotely with persons at the camera installation location.
Efficient video compression
Smart H.265+, H.265, Smart H.264+ and H.264 video compression technologies reduce bandwidth consumption and storage space requirements whilst maintaining high image quality.
Local recording storage
The camera supports microSD memory cards with capacity up to 256 GB. Recordings can be reviewed and the camera managed using the DMSS app on Android and iOS mobile devices.
Durable construction for outdoor conditions
IP66 protection rating protects the camera from dust and powerful water jets. The camera is designed to operate at temperatures from −30 °C to +55 °C and is equipped with protection against lightning-induced surge and temporary voltage fluctuations.
Power adapter included
The camera operates on 12 V DC power. The power adapter, mounting base, fastening kit and necessary documentation are included in the package.
Specification

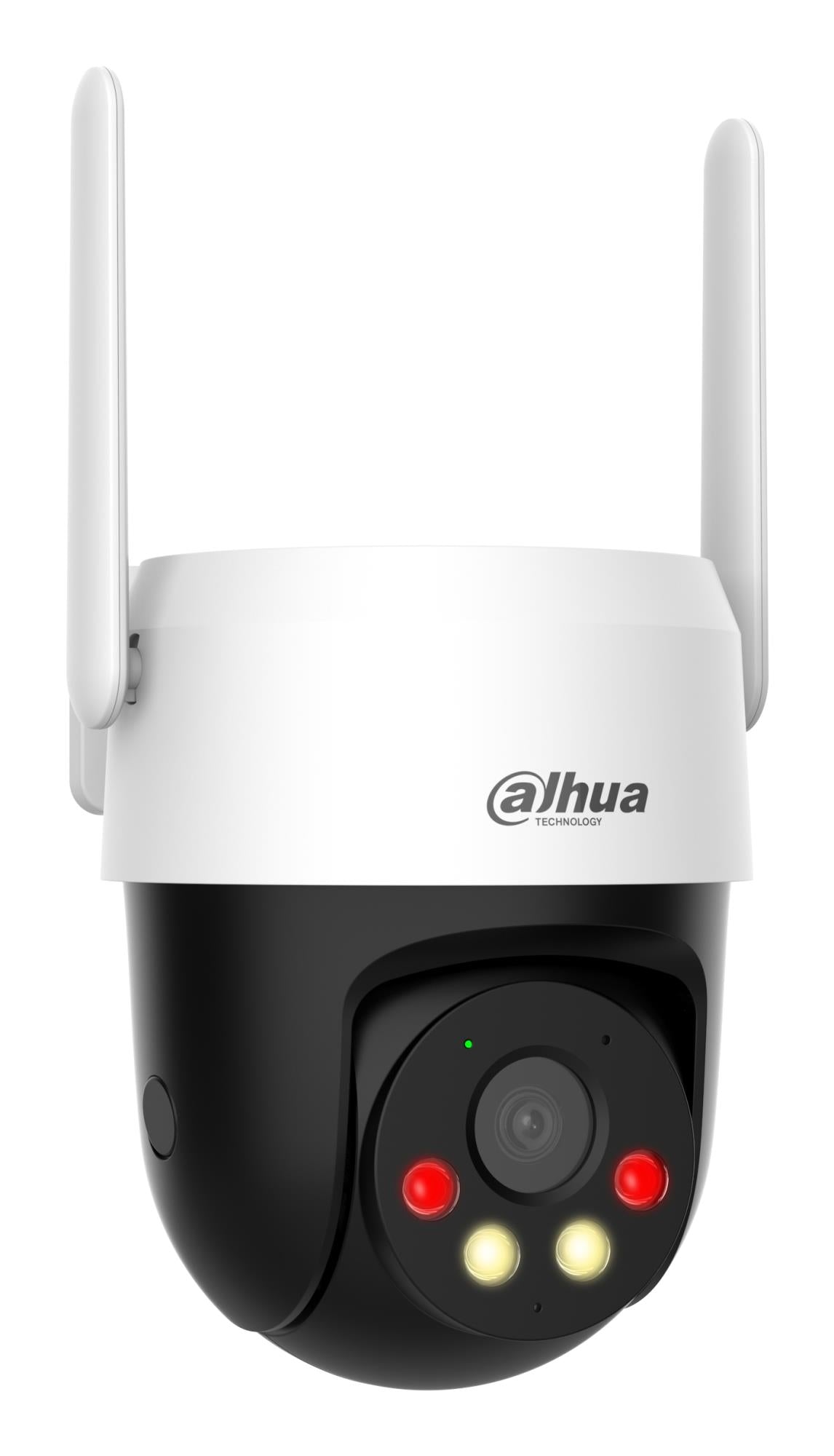

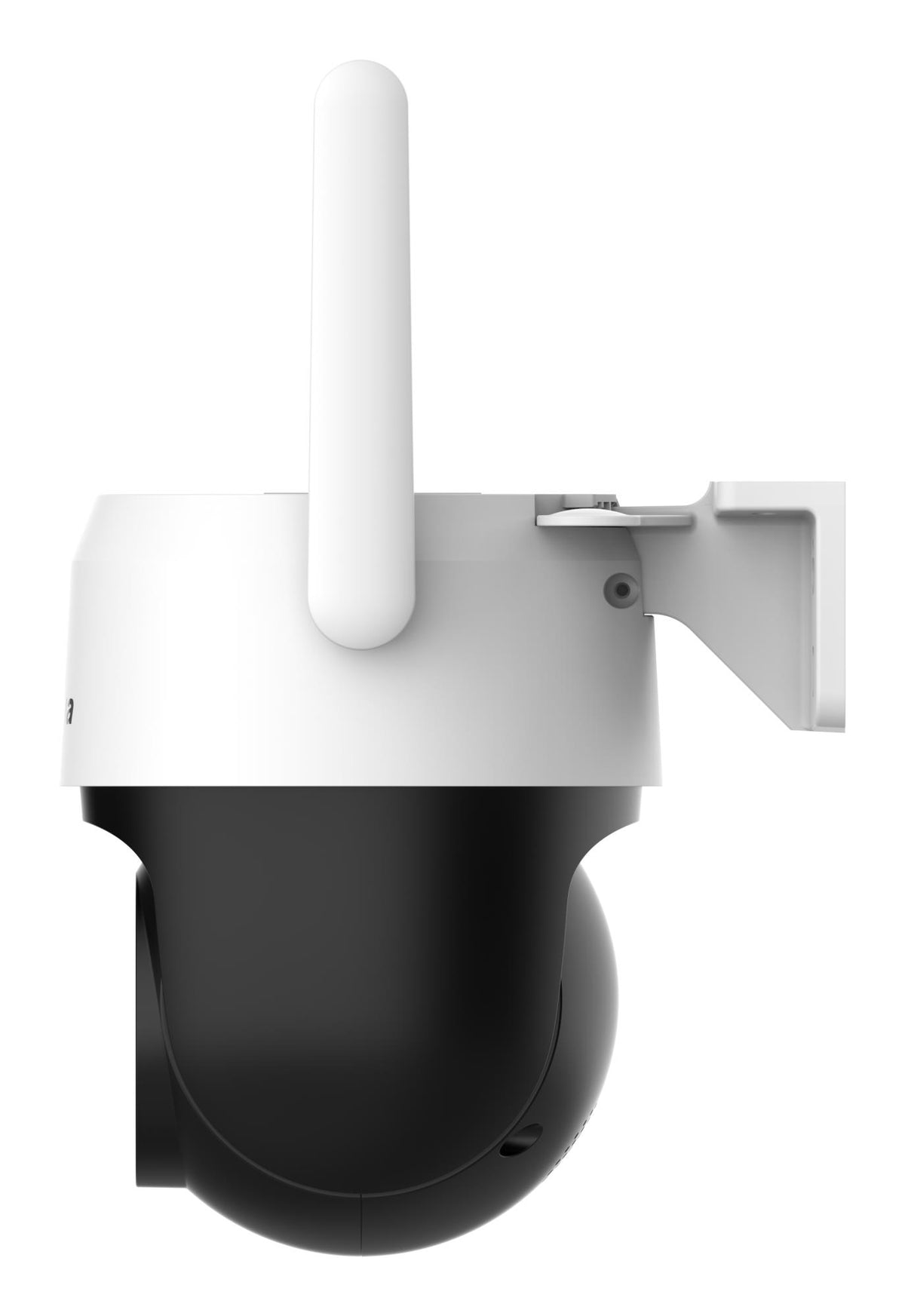

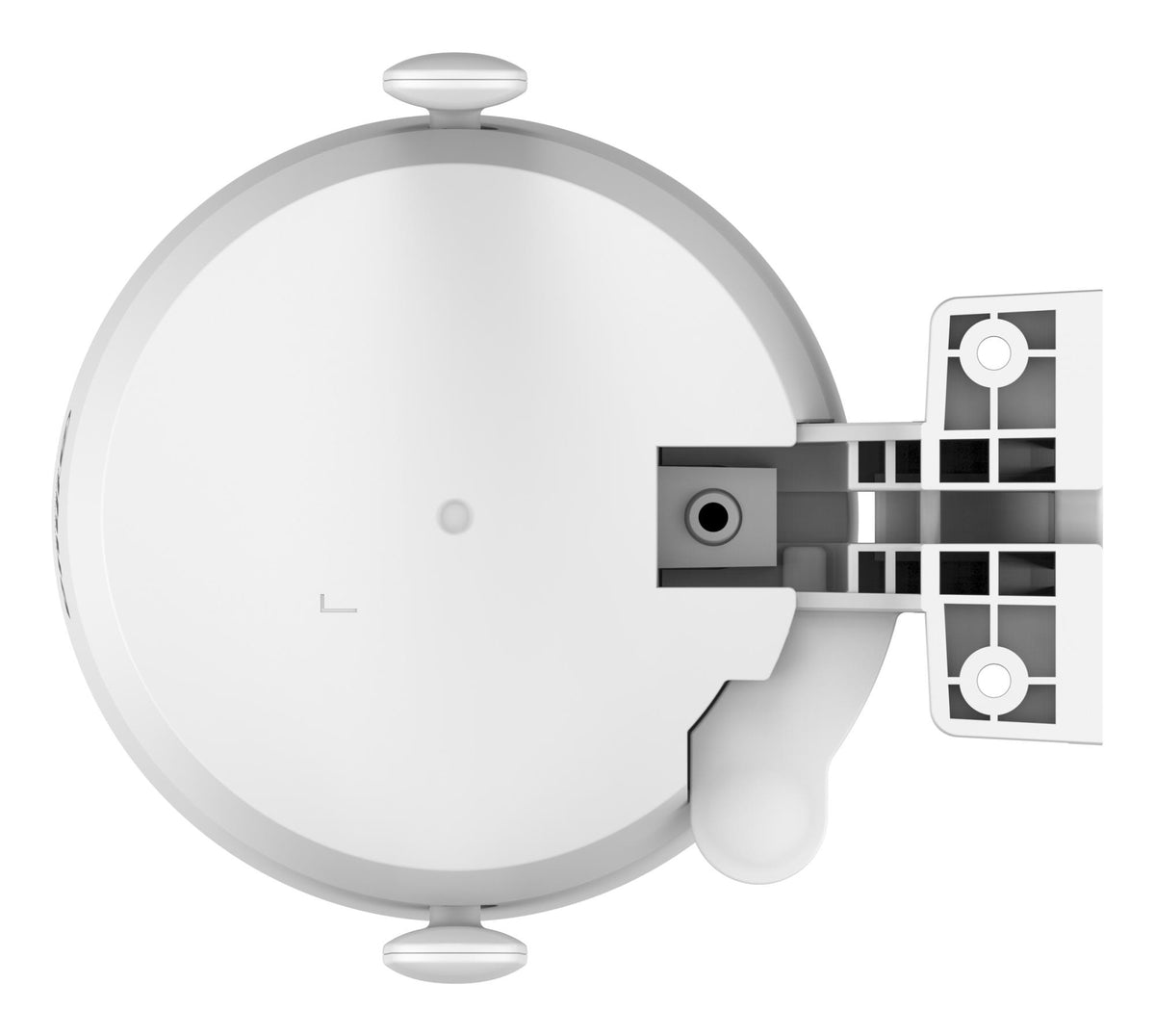

Manufacturer: DAHUA
Model: P5AE-PV-4G
ELKO code: 1439471
EAN: 6939554928277
Camera type: Rotating 4G network camera
Application: Outdoor conditions
Installation method: Wall or ceiling mounted
Colour: White and black
Connection type: Wireless 4G
Image sensor: 1/2.8 type CMOS
Effective resolution: 5 MP
Maximum resolution: 2880 × 1620 pixels
Electronic shutter speed: From 1/25 to 1/100 000 s
Lens type: Fixed focus
Focus distance: 4 mm
Maximum aperture: F1.6
Horizontal viewing angle: 81.27°
Vertical viewing angle: 47.73°
Diagonal viewing angle: 94.41°
Aperture control: Fixed
Infrared illumination distance: Up to 30 m
Warm white light illumination distance: Up to 30 m
Number of infrared illuminators: 2
Number of warm white illuminators: 2
Horizontal movement range: From 0° to 345°
Vertical movement range: From 0° to 90°
Virtual line crossing detection: Yes
Intrusion detection: Yes
Human detection: Yes
Vehicle detection: Yes
Automatic target tracking: Yes
Smart motion detection: SMD 3.0
Active deterrence: Sound and light alarm
Video compression: Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H and MJPEG
Main stream resolution: 5 MP, 1920 × 1080, 1280 × 720 or 640 × 360 pixels
Main stream frame rate: From 1 to 25/30 frames per second
Sub-stream resolution: 704 × 576, 640 × 480 or 352 × 288 pixels
Sub-stream frame rate: From 1 to 25/30 frames per second
H.264 video bitrate: From 64 to 8192 kbit/s
H.265 video bitrate: From 25 to 6400 kbit/s
Day and night mode: Automatic, colour or black and white
Wide dynamic range: Digital
Motion detection: Yes
Image rotation: 180°
Built-in microphone: Yes
Built-in speaker: Yes
Two-way audio communication: Yes
Audio compression: PCM, G.711a, G.711Mu and G.726
Mobile network generation: 4G
European LTE frequency bands: B1, B3, B5, B7, B8, B20 and B28
Maximum 4G transmission power: 23 dBm ± 2 dB
Memory card type: microSD
Maximum memory card capacity: 256 GB
Management software: DMSS
Supported mobile operating systems: Android and iOS
Certification: CE
Power supply: 12 V DC, 1 A ± 10 %
Basic power consumption: 3 W
Maximum power consumption: 9 W
Power adapter: Included in the package
Operating temperature: From −30 °C to +55 °C
Operating relative humidity: Up to 95 %
Protection rating: IP66
Lightning surge protection: 2000 V
Surge protection: Yes
Protection against temporary voltage fluctuations: Yes
Reset button: Yes
Housing material: Plastic
Dimensions: 140.5 × 111 mm
Net weight: 500 g
Number of cameras in the package: 1
Mounting base: 1
Fastening kit: 1
Waterproof connector: 1
Installation location diagram: 1
Quick start guide: 1
Compliance and safety documentation: 1 set
