4 MP resolution

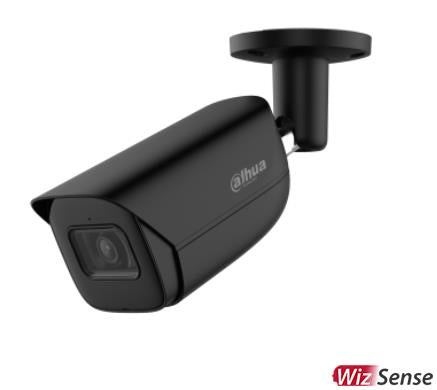

Dahua IPC-HFW2449T-AS-IL-0360B is a WizSense series bullet-type IP camera with a 1/2.9" CMOS sensor and 4 MP resolution of 2688 × 1520 pixels. The camera delivers up to 25/30 frames/s and is suitable for high-quality security camera surveillance indoors and outdoors.
3.6 mm fixed lens
The camera is equipped with a 3.6 mm F1.6 fixed lens that provides approximately 83° horizontal field of view. This configuration is suitable for monitoring entrances, courtyards, car parks and other specific areas.
Smart Dual Light
The built-in Smart Dual Light system combines IR and warm white light illumination. IR operating range reaches up to 60 m, while warm white light reaches up to 50 m. Three illumination modes are available.
WizSense AI analytics
The camera uses Deep Learning technology for human and vehicle classification. SMD Plus and IVS functions help more accurately detect critical security events and reduce false alarms.
Perimeter protection
IVS supports intrusion and virtual line crossing detection with human and vehicle classification. This allows the camera to be used for perimeter control, area protection and access zone monitoring.
WDR 120 dB
True WDR up to 120 dB helps preserve image details in situations with high contrast between bright and dark areas. Additional 3D NR, BLC, HLC, ROI and Smart Illumination functions enhance image quality in various lighting conditions.
Built-in microphone
The camera has an integrated microphone, as well as audio input and audio output. This allows audio recording and two-way audio functions in the security camera system.
Local recording
The integrated microSD slot supports memory cards up to 512 GB in the latest specification version, providing local video recording storage.
H.265+ compression
H.265/H.264 and Smart H.265+/H.264+ technology reduces video data volume, helping to save network bandwidth and recording storage space.
PoE power supply
The camera supports 12 V DC and IEEE 802.3af PoE power supply. Using PoE, power supply and data transmission can be provided with a single Ethernet cable. Maximum consumption in PoE mode is approximately 7.2 W.
Durable outdoor housing
IP67 protection provides protection against dust and water. The metal bullet housing is designed for outdoor use, and the camera operates at temperatures from -40 to +60 °C. IK10 impact resistance is available as an option depending on configuration.
Specifications
-
Model: IPC-HFW2449T-AS-IL-0360B
-
Manufacturer: Dahua
-
Series: WizSense 2
-
Camera type: IP camera
-
Camera form: Bullet
-
Application: indoors and outdoors
-
Colour: white
-
Sensor: 1/2.9" CMOS
-
Resolution: 4 MP
-
Max. resolution: 2688 × 1520 px
-
Max. frame rate: 25/30 frames/s
-
Lens: fixed
-
Focal length: 3.6 mm
-
Aperture: F1.6
-
Horizontal field of view: 83°–84°
-
Vertical field of view: 42°–44°
-
Diagonal field of view: 98°–101°
-
Min. illumination: 0.006 lx
-
Min. illumination B/W: 0.0006 lx
-
IR illumination: up to 60 m
-
Warm white light: up to 50 m
-
Smart Dual Light: yes
-
IR LED: 2
-
Warm Light LED: 2
-
WDR: 120 dB
-
3D NR: yes
-
BLC: yes
-
HLC: yes
-
ROI: 4 zones
-
Smart Illumination: yes
-
SMD Plus: yes
-
Human classification: yes
-
Vehicle classification: yes
-
IVS: intrusion, line crossing
-
Built-in microphone: yes
-
Audio input: 1
-
Audio output: 1
-
Alarm input: 1
-
Alarm output: 1
-
microSD: up to 512 GB
-
Video compression: H.265 / H.264 / MJPEG
-
Smart Codec: Smart H.265+ / Smart H.264+
-
AI Codec: AI H.265 / AI H.264
-
Network connection: RJ-45
-
Network speed: 10/100 Mbps
-
ONVIF: Profile S / G / T
-
Power supply: 12 V DC / PoE
-
PoE: IEEE 802.3af
-
Max. consumption: 7.2 W in PoE mode
-
Pan: 0–360°
-
Tilt: 0–90°
-
Rotation: 0–360°
-
Lens mount: M12
-
Protection class: IP67
-
Impact resistance: IK10 (opt.)
-
Housing material: metal
-
Operating temperature: -40 to +60 °C
-
Operating humidity: ≤95%
-
Dimensions: 238.5 × 90.7 × 90.7 mm
-
Net weight: 0.72 kg
-
DORI detection: up to 85.4 m
-
DORI observation: up to 34.2 m
-
DORI recognition: up to 17.1 m
-
DORI identification: up to 8.5 m
