4 MP Full-Colour Image

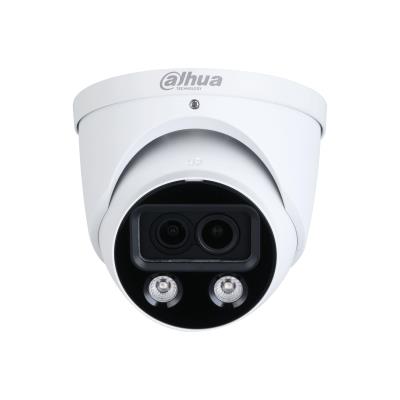

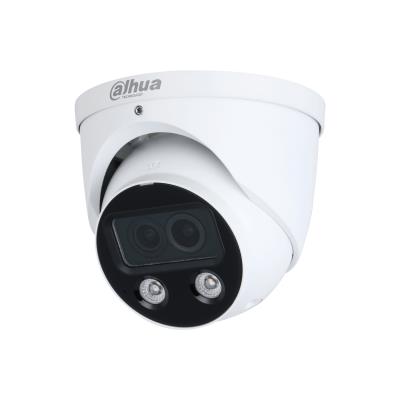

The Dahua IPC-HDW5449H-ASE-D2 is a professional WizMind series 4 MP dual lens eyeball IP security camera with two 1/1.8" CMOS sensors. The camera delivers up to 2688 × 1520 pixel resolution at up to 25/30 frames/s and is designed for high-quality video surveillance even in low-light conditions.
Dual Lens Technology
Two image sensors utilise multispectral imaging technology to provide colourful and detailed images in low-light conditions. This allows you to capture more detail than traditional cameras in complex lighting situations.
2.8 mm Fixed Lens
This version is equipped with a 2.8 mm fixed lens and F1.0 aperture. The horizontal field of view reaches approximately 97°, making the camera suitable for monitoring entrances, courtyards, car parks, shops and other wider areas.
Full-Colour 24/7 Surveillance
Full-Colour technology provides colourful images even in very low-light conditions. Integrated IR and warm white light LEDs provide illumination up to 50 m.
AI Human and Vehicle Classification
The camera supports intelligent human and vehicle classification, helping to more accurately identify objects of interest and reduce false alarms.
AcuPick for Fast Search
AcuPick technology allows you to quickly and accurately search for humans and vehicles in video footage, making it easier to find the required events in large volumes of recordings.
Smart Perimeter Protection
The camera supports intrusion detection, virtual line crossing and rapid motion detection with human and vehicle classification. Abandoned and missing object detection, loitering, human gathering and parking detection are also available.
Face Detection
Face analytics supports face tracking, snapshot capture and optimisation, face image enhancement and exposure optimisation.
People Counting
The camera provides people counting, including people counting in zones, counting people entering and leaving, as well as queue management and report generation by day, month and year.
WDR and Image Enhancement
DWDR, 3D NR, HLC and BLC help preserve image detail in complex lighting conditions. ROI and Smart Codec functions help optimise video quality and data flow.
H.265+ Compression
The camera supports Smart H.264+/H.265+ and AI H.264/H.265 encoding, reducing network bandwidth and video recording storage requirements.
Two-Way Audio
Built-in microphone and speaker provide two-way audio communication. Separate audio input and output are also available.
Local Recording
The camera is equipped with a microSD card slot and supports memory cards up to 256 GB, allowing video recordings to be saved locally.
PoE and ePoE
The camera supports 12 V DC, PoE 802.3af and ePoE power supply. This simplifies installation and provides data transmission and power supply over Ethernet cable.
IP67 Protection
IP67 protection class provides protection against dust and water. The camera is also designed for outdoor use and operates at temperatures from -40 to +60 °C.
Specifications
-
Model: IPC-HDW5449H-ASE-D2
-
Manufacturer: Dahua
-
Series: WizMind
-
Camera Type: IP security camera
-
Camera Form: Eyeball
-
Sensors: 2 × 1/1.8" CMOS
-
Resolution: 4 MP
-
Max. Resolution: 2688 × 1520 px
-
Max. Frame Rate: 25/30 frames/s
-
Lens: Fixed
-
Focal Length: 2.8 mm
-
Aperture: F1.0
-
Horizontal Field of View: 97°
-
Vertical Field of View: 48°
-
Diagonal Field of View: 115°
-
Min. Illumination: 0.0002 lx
-
IR Illumination: up to 50 m
-
Warm White Light: up to 50 m
-
Full-Colour: Yes
-
DWDR: Yes
-
3D NR: Yes
-
HLC: Yes
-
BLC: Yes
-
ROI: Yes
-
Smart H.264+/H.265+: Yes
-
AI H.264/H.265: Yes
-
AcuPick: Yes
-
Human Classification: Yes
-
Vehicle Classification: Yes
-
Face Detection: Yes
-
People Counting: Yes
-
Queue Management: Yes
-
Intrusion Detection: Yes
-
Line Crossing: Yes
-
Rapid Motion Detection: Yes
-
Abandoned Object: Yes
-
Missing Object: Yes
-
Loitering Detection: Yes
-
Human Gathering: Yes
-
Parking Detection: Yes
-
Built-in Microphone: Yes
-
Built-in Speaker: Yes
-
Two-Way Audio: Yes
-
Audio Input: 1
-
Audio Output: 1
-
Alarm Input: 1
-
Alarm Output: 1
-
microSD: up to 256 GB
-
Video Compression: H.264 / H.265 / MJPEG
-
Network Connection: 1 × RJ-45
-
PoE: IEEE 802.3af
-
ePoE: Yes
-
Power Supply: 12 V DC / PoE / ePoE
-
Pan: 0–360°
-
Tilt: 0–78°
-
Rotation: 0–360°
-
Lens Mount: M16
-
Protection Class: IP67
-
Housing Material: Metal
-
Housing Colour: White
-
Dimensions: Ø122 × 110.9 mm
-
Net Weight: 0.75 kg
-
Operating Temperature: -40 to +60 °C
-
Wi-Fi: No
-
Application: Shops, offices, warehouses, car parks, courtyards, entrances, company premises and perimeter video surveillance.
