High-resolution 4 MP image
4 MP CMOS image sensor delivers detailed images with maximum resolution of 2688 × 1520 and frame rate up to 30 frames per second. The camera simultaneously supports four video streams for various live viewing, recording and remote monitoring needs.
Artificial intelligence image processing
Xinghan artificial intelligence vision models and AI-ISP image processing enhance object detection, recognition and image quality in low light conditions. The self-learning function analyses object characteristics and helps reduce the number of false alarm notifications.
Wide 2.8 mm viewing angle
Fixed focus 2.8 mm lens provides 112° horizontal, 58° vertical and 137° diagonal viewing angle, enabling effective monitoring of large areas. Minimum focusing distance is 1.5 m.
Smart dual illumination
Two multifunctional illuminators combine infrared and warm white light. The operating range of both illumination types reaches 50 m. In smart mode, the camera uses infrared illumination at night and switches on warm white light upon detection of a specific object to record the event in colour mode.
Human, vehicle and animal detection
SMD 4.0 technology and deep machine learning algorithms detect and classify humans, vehicles and animals. The camera supports line crossing, zone intrusion, rapid movement, prolonged presence, human gathering, unauthorised parking and loitering detection.
AcuPick smart search
AcuPick function together with compatible network video recorder allows quick and accurate detection of humans, vehicles and animals in live and recorded video footage.
Face detection and attribute analysis
The camera supports face detection, image capture, optimisation and enhancement. It analyses facial characteristics and expressions, provides optimal face image selection and multiple image capture strategies.
People counting and queue management
The camera counts people crossing a defined line, entering or leaving the monitored area. It supports people counting in a specific zone, queue management and report generation by day, week, month and year.
Video metadata and heat map
Video metadata function collects information about people, faces, motorised and non-motorised vehicles. Heat map helps analyse the intensity of human movement and activity in the monitored area.
Quality image in complex lighting
140 dB wide dynamic range, automatic scene adaptation, 3D noise reduction, backlight compensation, bright light compensation, fog reduction and lens distortion correction help maintain clear image in complex lighting conditions.
Efficient video compression
H.265, H.264, Smart H.265+, Smart H.264+ and artificial intelligence encoding technologies reduce network load and storage space required for recordings, whilst maintaining high image quality.
Built-in microphone and external connections
Built-in microphone provides audio recording together with video. The camera is equipped with audio input and output, as well as one alarm input and one alarm output.
Recording storage up to 1 TB
Recordings can be stored on microSD memory card with capacity up to 1 TB, network storage or FTP and SFTP server.
Versatile power supply options
The camera can be powered by 12 V DC, PoE+ or ePoE technology. Dual power backup allows the camera to continue operating if one of the simultaneously used power sources is disconnected.
Durable vandal-resistant housing
Metal housing has IP67 protection rating against dust and water, as well as IK10 impact resistance rating. The camera is designed for operation at temperatures from −40 °C to +60 °C.
Specification
Product code: 1460678
Model: IPC-HDBW5459R-ASE-IL-0280B
Manufacturer model: IPC-HDBW5459R-ASE-IL
EAN: 6937552408142

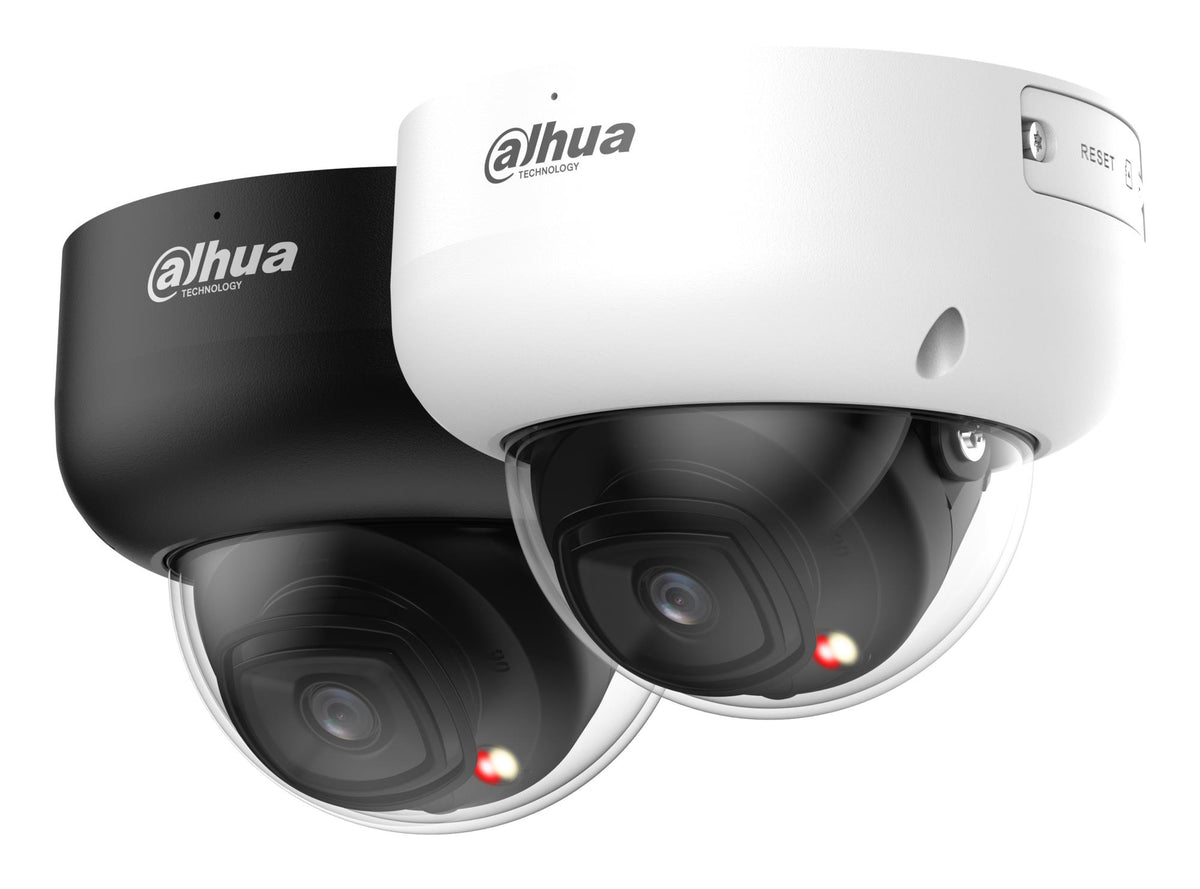

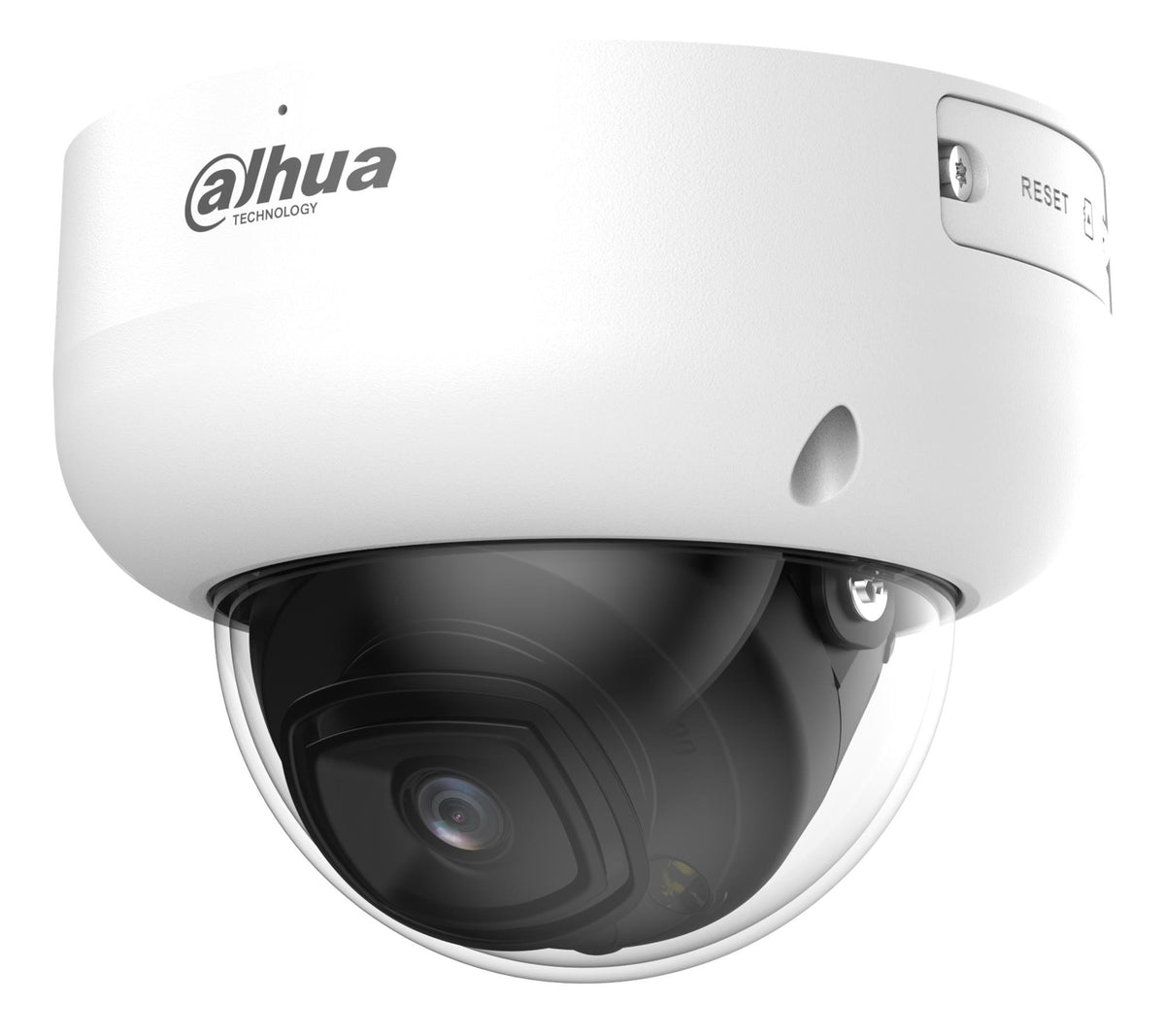

Camera type: vandal-resistant dome IP security camera
Installation location: indoors and outdoors
Installation method: ceiling mounted
Connection type: wired
Colour: white
Housing material: metal
Image sensor: CMOS
Resolution: 4 MP
Maximum resolution: 2688 × 1520
Maximum frame rate: 30 frames/s
Built-in memory: 4 GB
RAM: 2 GB
Scanning system: progressive
Electronic shutter speed: 1/3 to 1/100 000 s
Minimum illumination in colour mode: 0.0007 lx
Minimum illumination in black and white mode: 0.0004 lx
Minimum illumination with illuminator on: 0 lx
Signal to noise ratio: more than 56 dB
Lens type: fixed focus lens
Lens mount: M12
Focal length: 2.8 mm
Maximum aperture: F1.6
Aperture control: fixed
Horizontal viewing angle: 112°
Vertical viewing angle: 58°
Diagonal viewing angle: 137°
Minimum focusing distance: 1.5 m
Detection distance: 61.5 m
Monitoring distance: 24.6 m
Recognition distance: 12.3 m
Identification distance: 6.2 m
Pan range: 0°–355°
Tilt range: 0°–80°
Rotation range: 0°–355°
Illumination type: infrared and warm white LED
Infrared illumination distance: up to 50 m
Warm white light distance: up to 50 m
Number of illuminators: 2
Illumination control: automatic or manual
Smart illumination: yes
Smart dual illumination: yes
Day and night mode: automatic, colour or black and white
Smart motion detection: SMD 4.0
Object classification: humans, vehicles and animals
Perimeter protection: yes
Smart analysis functions: line crossing, zone intrusion, rapid movement, prolonged presence, human gathering, unauthorised parking and loitering detection
Face detection: yes
People counting: yes
People counting in specific zone: yes
Queue management: yes
Heat map: yes
Video metadata: yes
AcuPick function: yes
Smart search: yes
Automatic scene adaptation: yes
Self-learning function: yes
Video compression: H.265, H.264, H.264H, H.264B and MJPEG
Smart video compression: Smart H.265+ and Smart H.264+
Artificial intelligence encoding: AI H.265 and AI H.264
Number of video streams: 4
Main video stream resolution: up to 2688 × 1520
Second video stream resolution: up to 704 × 576
Third video stream resolution: up to 1920 × 1080
Fourth video stream resolution: up to 1280 × 720
Video bitrate in H.264 format: 3–16 384 kbit/s
Video bitrate in H.265 format: 3–16 384 kbit/s
Bitrate control: CBR and VBR
Wide dynamic range: 140 dB
Noise reduction: 3D
Backlight compensation: yes
Bright light compensation: yes
Fog reduction: yes
Motion detection: 4 zones
Regions of interest: 4 zones
Privacy masks: 4 mosaic zones or 8 colour zones
Lens distortion correction: yes
Image mirroring: yes
Image rotation: 0°, 90°, 180° or 270°
Built-in microphone: yes
Audio input: 1
Audio output: 1
Audio compression: G.711a, G.711Mu, PCM, G.726 and G.723
Alarm input: 1
Alarm output: 1
Built-in sound alerts: 11
Custom sound alerts: up to 10
Sound volume adjustment: 0–100 %
Sound repetition: 1–10
Memory card type: microSD
Maximum memory card capacity: 1 TB
Recording storage: microSD, FTP, SFTP and network storage
Network connection: RJ-45, 10/100 Base-T
Compatibility: ONVIF profiles S, G, T and M; CGI
Maximum number of users: 20
Total network bandwidth: 80 Mbit/s
Mobile operating systems: iOS and Android
Management software: DSS, DMSS and DoLynk Care
Power supply: 12 V DC, PoE+ or ePoE
PoE standard: IEEE 802.3at
Dual power backup: yes
Basic power consumption with 12 V power supply: 4.1 W
Basic power consumption with PoE: 6.1 W
Maximum power consumption with 12 V power supply: 13.2 W
Maximum power consumption with PoE: 15.5 W
Operating temperature: −40 °C to +60 °C
Storage temperature: −40 °C to +60 °C
Operating humidity: up to 95 %, non-condensing
Storage humidity: up to 95 %, non-condensing
Protection rating: IP67
Impact resistance rating: IK10
Corrosion protection: basic
Dimensions: 94 × Ø122 mm
Net weight: 713 g
Gross weight: 986 g
