High-resolution 4 MP image
4 MP CMOS image sensor delivers detailed images with maximum resolution of 2688 × 1520 and frame rate up to 30 frames per second. The camera simultaneously supports four video streams for live viewing, recording and remote monitoring.
Motorised variable focal length lens
The motorised 2.7–12 mm lens allows remote adjustment of the viewing angle of the monitored area. The horizontal viewing angle is adjustable from 115° to 47°, providing both a wide overview and detailed observation of distant objects.
Smart dual illumination
Two multifunctional illuminators combine infrared and warm white light. The infrared illumination operating range reaches 50 m, whilst the warm white light operating range is 40 m. The camera can automatically adjust the illumination mode to suit the monitoring situation.
High light sensitivity
The camera delivers quality images in very low light conditions. The minimum required illumination in colour mode is 0.0007 lx, and in black and white mode 0.0004 lx. With the illuminator enabled, the camera operates in complete darkness.
Precise detection of people, vehicles and animals
SMD 4.0 technology and artificial intelligence algorithms detect and classify people, vehicles and animals. The camera supports line crossing, intrusion, rapid movement, loitering, crowd gathering, unauthorised parking and dwelling detection.
Enhanced perimeter protection
Xinghan artificial intelligence vision models increase object detection range and help reduce the number of false alarm notifications. The self-learning function filters out events that do not match the specific monitoring situation.
AcuPick smart search
The AcuPick function, together with compatible network video recorders, allows quick search for people, vehicles and animals in live and recorded video footage.
Face detection and attribute analysis
The camera supports face detection, image capture, optimisation and enhancement. It analyses facial attributes and expressions, selects optimal face images and provides multiple image capture strategies.
People counting and queue management
The camera counts people crossing a set line and monitors the number of people in a specific area. Queue length and waiting time analysis and reporting by day, week, month and year are available.
Video metadata and heat map
The video metadata function collects information about people, faces, mechanical and non-mechanical vehicles. The heat map helps analyse the intensity of people movement and activity in the monitored area.
Quality image in complex lighting
140 dB wide dynamic range, electronic image stabilisation, automatic scene adaptation, 3D noise reduction, backlight compensation, bright light compensation and fog reduction help maintain clear images in changing conditions.
Efficient video compression
H.265, H.264, Smart H.265+, Smart H.264+ and artificial intelligence encoding technologies reduce network load and storage space required for recordings, whilst maintaining high image quality.
Built-in microphone
The built-in microphone provides audio recording together with video. The camera supports G.711a, G.711Mu, PCM, G.726 and G.723 audio compression formats.
Recording storage up to 1 TB
Recordings can be saved to a microSD memory card with capacity up to 1 TB, network storage or FTP and SFTP server. The camera supports ONVIF profiles S, G, T and M.
Versatile power supply options
The camera can be powered by 12 V DC, PoE+ or ePoE technology. Dual power backup allows the camera to continue operating without restart if one of the simultaneously used power sources is disconnected.
Durable metal housing
The metal housing has IP67 protection rating, protecting the camera from dust and water. The camera is designed to operate at temperatures from −40 °C to +60 °C.
Specification
Product code: 1459793
Model: HDW5459T-ZE-IL-2712-B
Full model: IPC-HDW5459T-ZE-IL-2712-Black
Manufacturer model: DH-IPC-HDW5459T-ZE-IL
EAN: 6937552412132

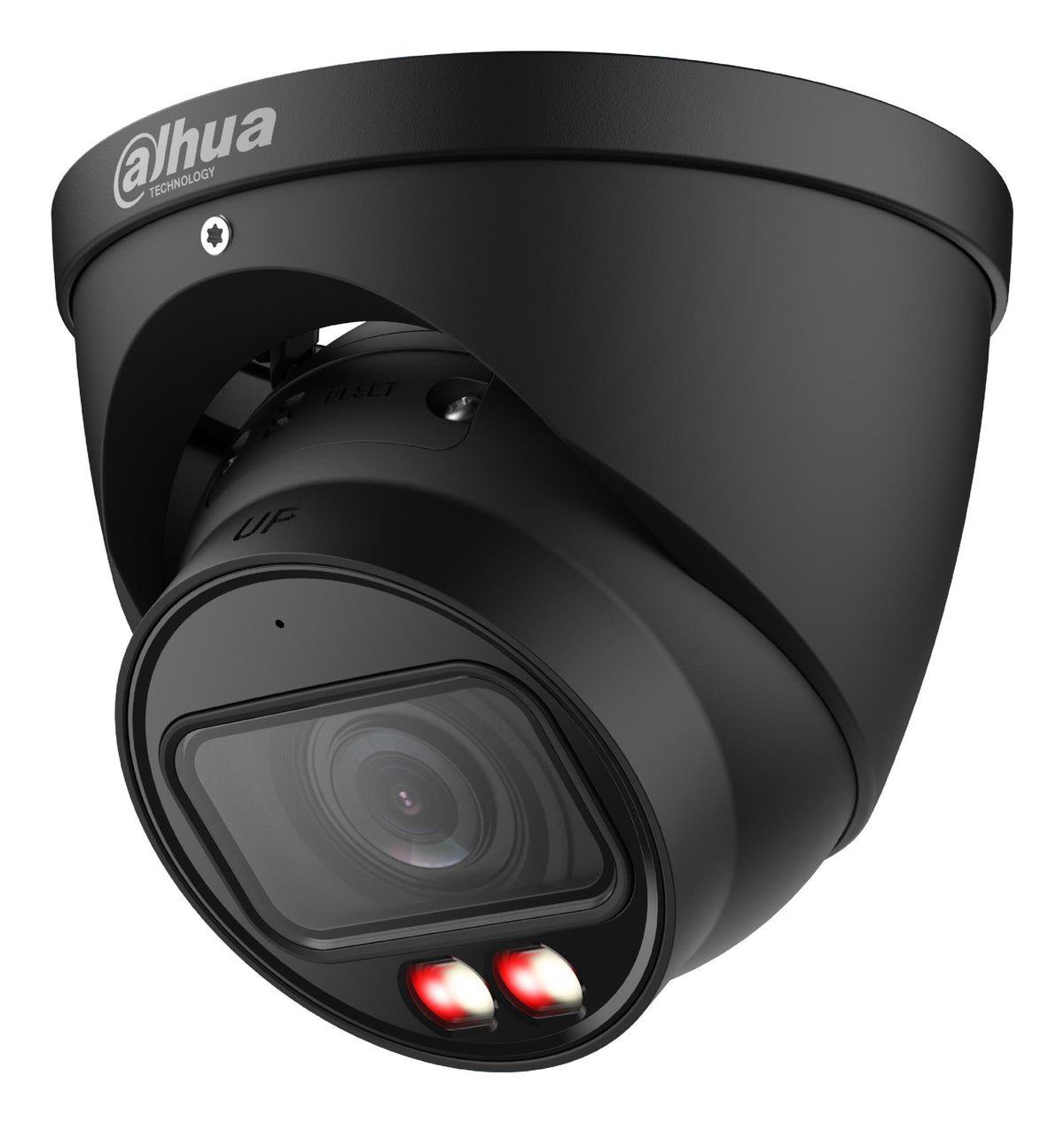

Camera type: turret IP security camera
Installation location: indoors and outdoors
Installation method: ceiling, wall or pole mounted
Connection type: wired
Colour: black
Housing material: metal
Protection rating: IP67
Image sensor: CMOS
Resolution: 4 MP
Maximum resolution: 2688 × 1520
Maximum frame rate: 30 frames/s
Built-in memory: 4 GB
RAM: 2 GB
Scanning system: progressive
Electronic shutter speed: 1/3 to 1/100 000 s
Minimum illumination in colour mode: 0.0007 lx
Minimum illumination in black and white mode: 0.0004 lx
Minimum illumination with illuminator enabled: 0 lx
Signal to noise ratio: more than 56 dB
Lens type: motorised variable focal length lens
Lens mount: Ø14 mm
Focal length: 2.7–12 mm
Maximum aperture: F1.8
Aperture control: automatic
Aperture type: DC-Iris
Horizontal viewing angle: 115°–47°
Vertical viewing angle: 62°–27°
Diagonal viewing angle: 137°–54°
Minimum focusing distance: 0.13 m
Detection distance in wide-angle mode: 57.5 m
Observation distance in wide-angle mode: 23 m
Recognition distance in wide-angle mode: 11.5 m
Identification distance in wide-angle mode: 5.8 m
Detection distance in telephoto mode: 130.8 m
Observation distance in telephoto mode: 52.3 m
Recognition distance in telephoto mode: 26.2 m
Identification distance in telephoto mode: 13.1 m
Pan range: 0°–360°
Tilt range: 0°–78°
Rotation range: 0°–360°
Illumination type: infrared and warm white LED
Infrared illumination distance: up to 50 m
Warm white light distance: up to 40 m
Number of illuminators: 2
Illumination control: automatic or manual
Smart illumination: yes
Smart dual illumination: yes
Day and night mode: automatic, colour or black and white
Smart motion detection: SMD 4.0
Object classification: people, vehicles and animals
Perimeter protection: yes
Line crossing detection: yes
Intrusion detection: yes
Rapid movement detection: yes
Loitering detection: yes
Crowd gathering detection: yes
Vehicle parking detection: yes
Dwelling detection: yes
Self-learning function: yes
Face detection: yes
People counting: yes
People counting in specific area: yes
Queue management: yes
Heat map: yes
Video metadata: yes
AcuPick function: yes
Smart Search function: yes
Video compression: H.265, H.264, H.264H, H.264B and MJPEG
Smart video compression: Smart H.265+ and Smart H.264+
Artificial intelligence encoding: AI H.265 and AI H.264
Number of video streams: 4
Main video stream resolution: up to 2688 × 1520
Second video stream resolution: up to 704 × 576
Third video stream resolution: up to 1920 × 1080
Fourth video stream resolution: up to 1280 × 720
Video bitrate in H.264 format: 3–16 384 kbit/s
Video bitrate in H.265 format: 3–16 384 kbit/s
Bitrate control: CBR and VBR
Wide dynamic range: 140 dB
Noise reduction: 3D
Backlight compensation: yes
Bright light compensation: yes
Electronic image stabilisation: yes
Automatic scene adaptation: yes
Fog reduction: yes
Motion detection: 4 zones
Regions of interest: 4 zones
Privacy masks: 4 mosaic zones or 8 colour zones
Lens distortion correction: yes
Image mirroring: yes
Image rotation: 0°, 90°, 180° or 270°
Built-in microphone: yes
Audio compression: G.711a, G.711Mu, PCM, G.726 and G.723
Audio event detection: yes
Alarm events: motion detection, video masking, scene change, audio detection, line crossing, intrusion, face detection, video metadata, SMD events, people counting events, network disconnection, IP address conflict, unauthorised access, voltage deviation and memory card errors
Memory card type: microSD
Maximum memory card capacity: 1 TB
Recording storage: microSD, FTP, SFTP and network storage
Network connection: RJ-45, 10/100 Base-T
Compatibility: ONVIF profiles S, G, T and M; CGI
Maximum number of users: 20
Total network bandwidth: 80 Mbit/s
Mobile operating systems: iOS and Android
Management software: DSS, DMSS and DoLynk Care
Power supply: 12 V DC, PoE+ or ePoE
DC power supply: 12 V ±30 %
PoE standard: IEEE 802.3at
Dual power backup: yes
Basic power consumption with 12 V supply: 3.5 W
Basic power consumption with PoE: 5 W
Maximum power consumption with 12 V supply: 14.8 W
Maximum power consumption with PoE: 17.5 W
Operating temperature: −40 °C to +60 °C
Storage temperature: −40 °C to +60 °C
Operating humidity: up to 95 %, non-condensing
Storage humidity: up to 95 %, non-condensing
Dimensions: 108.3 × Ø122 mm
Net weight: 700 g
Gross weight: 960 g
