High-resolution 4 MP image
4 MP CMOS image sensor delivers clear and detailed images with maximum resolution 2688 × 1520 and frame rate up to 30 frames per second. At Full HD resolution, the camera provides up to 60 frames per second, improving image smoothness and detail of moving objects.
Artificial intelligence image processing
AI-ISP technology uses artificial intelligence algorithms to enhance image quality, reduce noise and preserve object details in low or uneven lighting conditions.
Wide 2.8 mm viewing angle
Fixed focus 2.8 mm lens provides 112° horizontal, 58° vertical and 139° diagonal viewing angle, enabling effective monitoring of large areas. Minimum focusing distance is 1.3 m.
Night vision up to 50 m
Two built-in infrared LED illuminators provide clear black and white image in complete darkness up to 50 m distance. Smart illumination function automatically adjusts illumination intensity, reducing excessive lighting of objects.
Human, vehicle and animal detection
Deep learning algorithms detect and classify humans, vehicles and animals. The camera supports line crossing, zone intrusion, rapid movement, prolonged stay, human gathering and unauthorised parking detection.
AcuPick 2.0 smart search
AcuPick 2.0 function together with compatible network video recorder allows quick and accurate search for humans, vehicles and animals in live and recorded video.
Face detection and attribute analysis
The camera supports face detection, tracking, image capture and optimisation. It can analyse face attributes including age group, gender, facial expression, glasses, face mask and beard.
People counting and queue management
The camera counts people crossing a defined line, entering or leaving the monitored area. It supports people counting in a specific area, queue length and waiting time monitoring, as well as report generation.
Video metadata and heat map
Video metadata function collects information about people, faces, mechanical and non-mechanical vehicles. Heat map helps analyse human movement and activity intensity in the monitored area.
Abandoned and missing object detection
Smart object analysis allows detection of objects left or missing in the monitored area and timely activation of security alert.
Quality image in complex lighting
140 dB wide dynamic range, 3D noise reduction, backlight compensation, bright light compensation, fog reduction and lens distortion correction help maintain clear image in complex lighting conditions.
Efficient video compression
H.265, H.264, Smart H.265+, Smart H.264+ and artificial intelligence encoding technologies reduce network load and storage space required for recordings. The camera simultaneously supports four video streams.
Built-in microphone and external connections
Built-in microphone provides audio recording together with video. The camera is also equipped with audio input and output, as well as one alarm input and one alarm output.
Recording storage up to 1 TB
Recordings can be saved on microSD memory card with capacity up to 1 TB, network storage or FTP and SFTP server.
Versatile power supply options
The camera can be powered by 12 V DC, PoE or ePoE technology. Dual power backup allows the camera to continue operating if one of the simultaneously used power sources is disconnected.
Durable housing for outdoor use
Metal housing has IP67 protection rating, providing protection against dust and water. The camera is designed to operate at temperatures from −40 °C to +60 °C.
Specification
Product code: 1396730
Model: IPC-HDW5442TM-ASE-0280B-S3-B
Manufacturer model: IPC-HDW5442TM-ASE-S3
EAN: 6923172578761

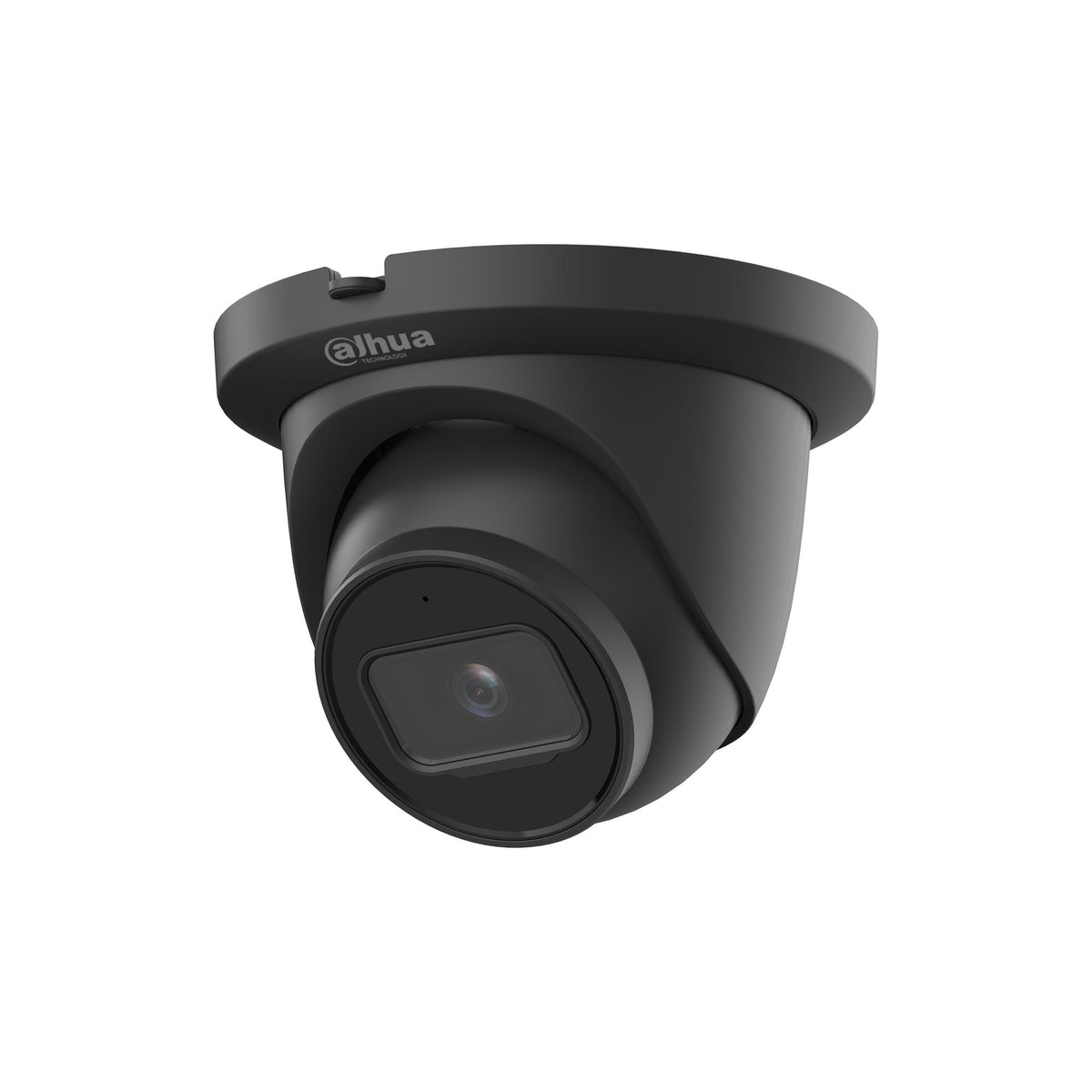

Camera type: turret IP security camera
Installation location: indoors and outdoors
Installation method: ceiling, wall or pole mounted
Connection type: wired
Colour: black
Housing material: metal and plastic
Image sensor: CMOS
Resolution: 4 MP
Maximum resolution: 2688 × 1520
Frame rate at 4 MP resolution: up to 30 frames/s
Frame rate at Full HD resolution: up to 60 frames/s
Built-in memory: 4 GB
RAM: 1 GB
Scanning system: progressive
Electronic shutter speed: from 1/3 to 1/100 000 s
Minimum illumination in colour mode: 0.0007 lx
Minimum illumination in black and white mode: 0.0004 lx
Minimum illumination with illuminator on: 0 lx
Signal to noise ratio: more than 56 dB
Lens type: fixed focus lens
Lens mount: M12
Focal length: 2.8 mm
Maximum aperture: F1.6
Aperture control: fixed
Horizontal viewing angle: 112°
Vertical viewing angle: 58°
Diagonal viewing angle: 139°
Minimum focusing distance: 1.3 m
Detection distance: 61.5 m
Monitoring distance: 24.6 m
Recognition distance: 12.3 m
Identification distance: 6.2 m
Pan range: 0°–360°
Tilt range: 0°–78°
Rotation range: 0°–360°
Illumination type: infrared LED
Night vision distance: up to 50 m
Number of infrared illuminators: 2
Illumination control: automatic or manual
Smart illumination: yes
Day and night mode: automatic, colour or black and white
Smart motion detection: SMD 3.0
Object classification: people, vehicles and animals
Perimeter protection: yes
Smart analysis functions: line crossing, zone intrusion, rapid movement, prolonged stay, human gathering and unauthorised parking
Smart object detection: abandoned and missing object detection
Face detection: yes
People counting: yes
People counting in specific area: yes
Queue management: yes
Heat map: yes
Video metadata: yes
AcuPick function: AcuPick 2.0
Smart search: yes
Smart audio detection: yes
Automatic scene adaptation: yes
Self-learning function: yes
Video compression: H.265, H.264, H.264H, H.264B and MJPEG
Smart video compression: Smart H.265+ and Smart H.264+
Artificial intelligence encoding: AI H.265 and AI H.264
Number of video streams: 4
Main video stream resolution: up to 2688 × 1520
Second video stream resolution: up to 704 × 576
Third video stream resolution: up to 1920 × 1080
Fourth video stream resolution: up to 1280 × 720
Video bitrate in H.264 format: 32–16 384 kbit/s
Video bitrate in H.265 format: 12–11 008 kbit/s
Bitrate control: CBR and VBR
Wide dynamic range: 140 dB
Noise reduction: 3D
Backlight compensation: yes
Bright light compensation: yes
Fog reduction: yes
Motion detection: 4 zones
Regions of interest: 4 zones
Privacy masks: 8 zones
Lens distortion correction: yes
Image mirroring: yes
Image rotation: 0°, 90°, 180° or 270°
Built-in microphone: yes
Audio input: 1
Audio output: 1
Audio compression: G.711a, G.711Mu, PCM, G.726 and G.723
Alarm input: 1
Alarm output: 1
Memory card type: microSD
Maximum memory card capacity: 1 TB
Recording storage: microSD, FTP, SFTP and network storage
Network connection: RJ-45, 10/100 Base-T
Compatibility: ONVIF profiles S, G, T and M; CGI
Maximum number of users: 20
Total network bandwidth: 80 Mbit/s
Mobile operating systems: iOS and Android
Management software: SmartPSS Lite, DSS and DMSS
Power supply: 12 V DC, PoE or ePoE
PoE standard: IEEE 802.3af
Dual power backup: yes
Basic power consumption with 12 V supply: 4.3 W
Basic power consumption with PoE: 5.5 W
Maximum power consumption with 12 V supply: 8.2 W
Maximum power consumption with PoE: 9.7 W
Operating temperature: from −40 °C to +60 °C
Storage temperature: from −40 °C to +60 °C
Operating humidity: up to 95 %
Storage humidity: 10–95 %, without condensation
Protection rating: IP67
Dimensions: 99.1 × Ø121.9 mm
Net weight: 500 g
Gross weight: 770 g
